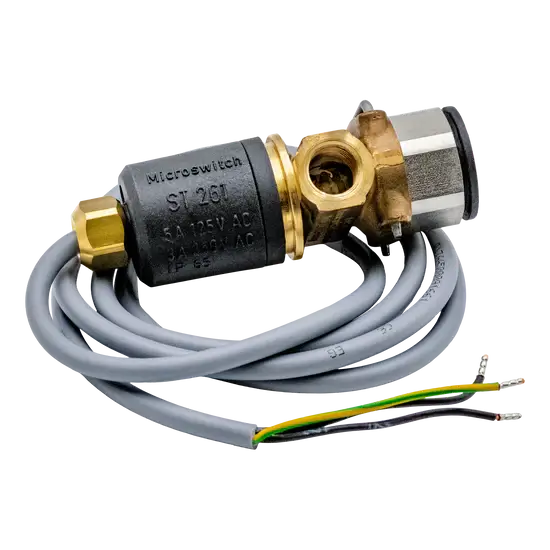

Complete Switch Assembly for ST-261S Unloader Valve – OEM Replacement Part
Part Number: 3847
Category: Pressure Washer Parts → Unloader Valve Accessories → Pressure Switch Assemblies
Type: Complete Switch Assembly for ST-261S Unloader Valve
The Complete Switch Assembly for the ST-261S Unloader Valve (Part #3847) is a genuine OEM replacement electrical switch assembly designed specifically for Suttner ST-261S pressure washer unloader valves. This complete microswitch assembly mounts in place of the bypass cap on compatible ST-261S unloaders, allowing the unloader to control electrical accessories based on the pressure washer's operating mode.
Key Features & Benefits
- Genuine OEM replacement switch assembly
- Designed specifically for Suttner ST-261S unloader valves
- Complete ready-to-install assembly
- Normally Closed (NC) microswitch configuration
- Mechanically actuated by the unloader piston
- Automatically changes switch state during bypass operation
- Controls external electrical devices
- Reliable commercial-duty construction
- Easy replacement of worn or damaged switch assemblies
- Ideal for automated pressure washer systems
Technical Specifications
Part Number: 3847
Product Type: Complete Microswitch Assembly
Compatible Unloader: Suttner ST-261S
Switch Type: STSP-NC (Single Throw Single Pole – Normally Closed)
Operation: Mechanical piston actuation
Mounting Location: Replaces bypass assembly on ST-261S unloader
OEM Replacement: Yes
How the Switch Assembly Works
The switch assembly is activated directly by the movement of the ST-261S unloader piston.
During Normal Spraying
- Spray gun trigger is open
- Water flows through the pressure washer
- Unloader remains in operating position
- Microswitch remains normally closed
- Connected electrical devices operate according to system design
During Bypass Mode
- Spray gun trigger is released
- Unloader piston shifts into bypass position
- Piston mechanically opens the microswitch
- Electrical circuit changes state
- Connected accessories respond automatically
This design provides reliable control without requiring separate pressure sensors.
Common Applications
The ST-261S switch assembly is commonly used to control:
- Solenoid valves
- Indicator lights
- Burner control systems
- Automatic shutdown timers
- Time-delay shutdown systems
- Sequencers
- Pump control circuits
- Industrial automation systems
Compatible Equipment
Designed for use with:
- Suttner ST-261S Unloader Valves
- Commercial hot water pressure washers
- Industrial pressure washer systems
- Automated wash systems
- Stationary pressure washer installations
- Equipment requiring electrical control during bypass operation
Performance Benefits
- Reliable electrical switching
- Automatic bypass detection
- Simple mechanical operation
- Improved system automation
- OEM-quality reliability
- Reduced maintenance
- Easy installation
- Long service life
Signs the Switch Assembly Needs Replacement
Replace the switch assembly if you notice:
- Electrical devices no longer activating
- Burner fails to shut off during bypass
- Solenoid valve malfunction
- Indicator lights not functioning correctly
- Intermittent switch operation
- Physical damage to the microswitch or wiring
- Excessive corrosion or wear
Installation Notes
- Shut off power to the pressure washer.
- Relieve all system pressure before servicing.
- Remove the existing ST-261S switch assembly.
- Install the replacement switch assembly in the bypass location.
- Connect wiring according to the equipment manufacturer's wiring diagram.
- Verify proper switch operation before returning the machine to service.
- Test all connected electrical devices during spray and bypass operation.
Important: Installation should be performed by qualified personnel familiar with pressure washer electrical systems. Disconnect electrical power before servicing any electrical components.
Maintenance Recommendations
- Inspect wiring connections regularly.
- Check for moisture intrusion or corrosion.
- Verify switch operation during routine maintenance.
- Replace damaged wiring immediately.
- Test burner or solenoid operation after servicing.
- Use only genuine OEM replacement assemblies for proper operation.
