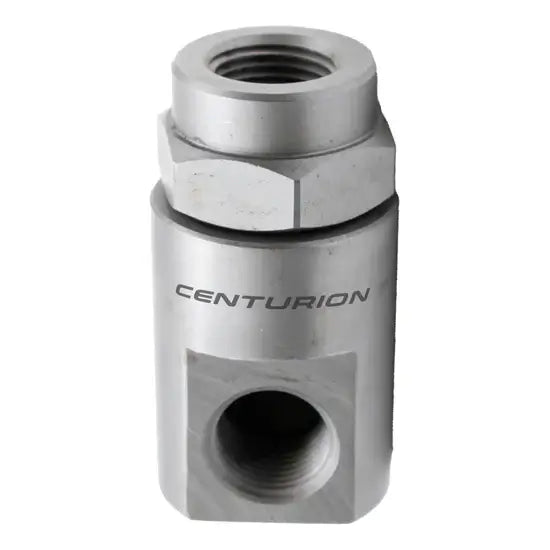

Centurion Hose Reel Swivel – 1/2" FPT x 3/8" FPT Pressure Washer Swivel
Part Number: 7553
Category: Pressure Washer Parts & Accessories → Hose Reels & Accessories → Hose Reel Swivels
Type: Centurion Hose Reel Swivel – 1/2" FPT x 3/8" FPT Pressure Washer Swivel
The Centurion Hose Reel Swivel (Part #7553) is a heavy-duty high-pressure hose reel swivel designed to provide smooth hose rotation while maintaining a leak-free connection in commercial and industrial pressure washing systems. Featuring a 1/2" FNPT inlet and 3/8" FNPT outlet, this swivel helps prevent hose twisting and kinking as the hose is wound and unwound from the reel.
Key Features & Benefits
- Part Number: 7553
- Centurion genuine hose reel swivel
- 1/2" FNPT inlet
- 3/8" FNPT outlet
- Rated for up to 5,000 PSI
- Maximum operating temperature: 320°F
- Allows smooth hose reel rotation
- Helps prevent hose twisting and kinking
- Reduces wear on hoses and fittings
- Ideal for commercial and industrial pressure washing systems
Technical Specifications
Part Number: 7553
Manufacturer: Centurion
Product Type: Hose Reel Swivel
Inlet: 1/2" FNPT
Outlet: 3/8" FNPT
Maximum Working Pressure: 5,000 PSI
Maximum Temperature: 320°F
Compatible Applications
Ideal for use with:
- Pressure washer hose reels
- Commercial pressure washing systems
- Hot-water pressure washers
- Cold-water pressure washers
- Mobile pressure washing trailers
- Industrial washdown equipment
- Fleet washing systems
- Agricultural cleaning equipment
Function of the Hose Reel Swivel
The Centurion 7553 Hose Reel Swivel allows the hose to rotate independently from the hose reel, helping to:
- Prevent hose twisting during operation
- Reduce stress on hoses and fittings
- Maintain unrestricted water flow
- Improve hose handling and reel operation
- Extend the life of hoses and hose reel components
A properly functioning swivel contributes to smoother reel operation and helps minimize downtime caused by damaged hoses.
Common Signs Replacement Is Needed
Replace the hose reel swivel if you notice:
- Water leaking around the swivel body
- Difficulty rotating the hose reel
- Hose twisting excessively during use
- Binding or seized swivel rotation
- Damaged or corroded threads
- Excessive internal wear
- Reduced performance due to leaking seals
Replacing a worn swivel helps restore smooth hose movement and leak-free operation.
Installation & Service Notes
Turn off the pressure washer and relieve all system pressure before replacing the swivel.
Install the Centurion 7553 Hose Reel Swivel by connecting the 1/2" FNPT inlet and 3/8" FNPT outlet to the appropriate hose reel fittings. Apply a thread sealant compatible with high-pressure systems where required, and tighten fittings according to the equipment manufacturer's specifications. After installation, pressurize the system slowly and inspect for leaks before placing the equipment into service.
Important: Never exceed the maximum working pressure of 5,000 PSI or the maximum operating temperature of 320°F. Always verify fitting sizes and compatibility before installation.
Maintenance Recommendations
- Inspect the swivel regularly for leaks or excessive wear.
- Check threaded connections periodically for tightness.
- Keep the swivel free of dirt and debris.
- Replace the swivel if rotation becomes stiff or leakage develops.
- Inspect connected hoses for twisting or abnormal wear.
- Use only clean water and operate within the rated pressure and temperature limits to maximize service life.
