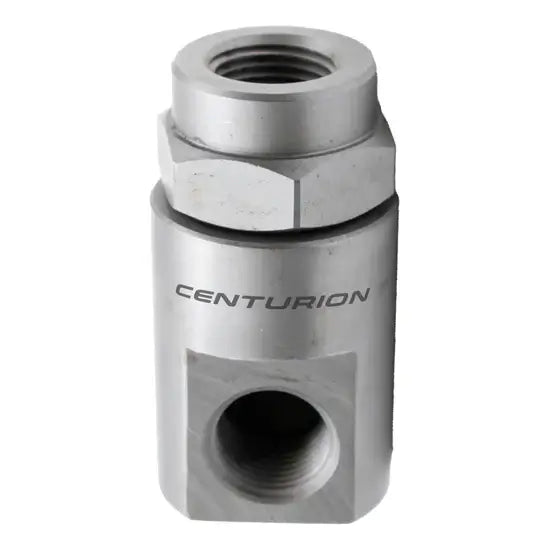

Centurion Hose Reel Swivel – 1/2" FPT x 1/2" FPT Pressure Washer Swivel
Part Number: 7552
Category: Pressure Washer Parts & Accessories → Hose Reels & Accessories → Hose Reel Swivels
Type: Centurion Hose Reel Swivel – 1/2" FPT x 1/2" FPT Pressure Washer Swivel
The Centurion Hose Reel Swivel (Part #7552) is a heavy-duty high-pressure hose reel swivel designed to provide smooth hose rotation while maintaining a secure, leak-free connection in commercial and industrial pressure washing systems. Featuring 1/2" FNPT inlet and 1/2" FNPT outlet connections, this swivel allows the hose reel to rotate independently of the hose, helping eliminate twisting, kinking, and unnecessary strain during operation.
Key Features & Benefits
- Part Number: 7552
- Centurion genuine hose reel swivel
- 1/2" FNPT inlet
- 1/2" FNPT outlet
- Rated for up to 5,000 PSI
- Maximum operating temperature: 320°F
- Allows smooth hose reel rotation
- Helps prevent hose twisting and kinking
- Reduces wear on hoses and fittings
- Heavy-duty construction for commercial and industrial applications
Technical Specifications
Part Number: 7552
Manufacturer: Centurion
Product Type: Hose Reel Swivel
Inlet: 1/2" FNPT
Outlet: 1/2" FNPT
Maximum Working Pressure: 5,000 PSI
Maximum Temperature: 320°F
Compatible Applications
Ideal for use with:
- Pressure washer hose reels
- Commercial pressure washing systems
- Hot-water pressure washers
- Cold-water pressure washers
- Mobile pressure washing trailers
- Industrial washdown systems
- Fleet washing equipment
- Agricultural cleaning equipment
Function of the Hose Reel Swivel
The Centurion 7552 Hose Reel Swivel allows the hose to rotate freely while maintaining a continuous high-pressure water connection. This helps to:
- Prevent hose twisting during winding and unwinding
- Reduce stress on hoses and reel fittings
- Maintain unrestricted water flow
- Improve hose handling and reel operation
- Extend the service life of hoses and hose reel components
A properly functioning swivel helps improve efficiency while minimizing maintenance caused by hose damage.
Common Signs Replacement Is Needed
Replace the hose reel swivel if you notice:
- Water leaking around the swivel body
- Stiff or seized swivel rotation
- Excessive hose twisting during operation
- Damaged or worn threads
- Internal seal failure
- Binding while winding or unwinding the hose
- Reduced performance due to leakage
Replacing a worn swivel restores smooth reel operation and helps maintain a leak-free pressure washing system.
Installation & Service Notes
Turn off the pressure washer and relieve all system pressure before replacing the swivel.
Install the Centurion 7552 Hose Reel Swivel by connecting the 1/2" FNPT inlet and 1/2" FNPT outlet to the appropriate hose reel fittings. Apply a thread sealant suitable for high-pressure applications where required, and tighten all connections according to the equipment manufacturer's specifications. After installation, slowly pressurize the system and inspect all fittings for leaks before returning the equipment to service.
Important: Never exceed the maximum working pressure of 5,000 PSI or the maximum operating temperature of 320°F. Always verify fitting sizes and thread compatibility before installation.
Maintenance Recommendations
- Inspect the swivel regularly for leaks or excessive wear.
- Check threaded connections periodically for tightness.
- Keep the swivel clean and free of dirt or debris.
- Replace the swivel if rotation becomes stiff or leakage develops.
- Inspect connected hoses for twisting or abnormal wear.
- Operate only within the specified pressure and temperature ratings to maximize service life.
