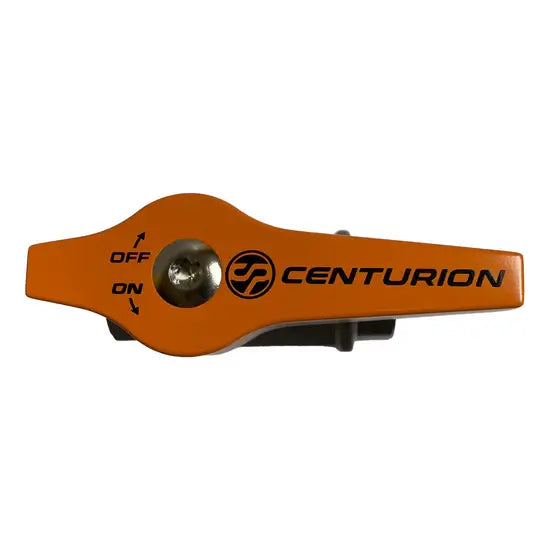

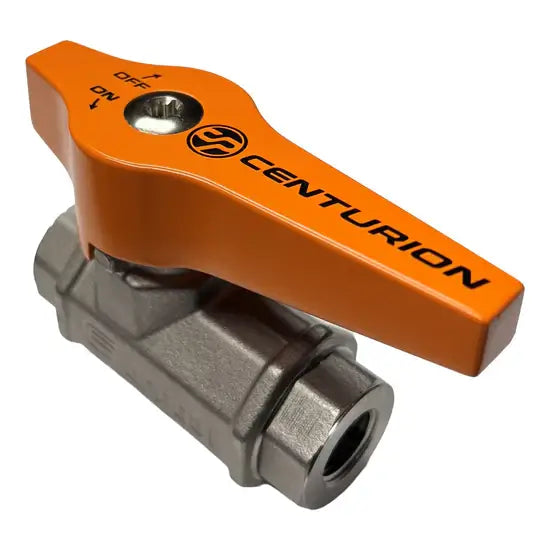

Centurion EZ Turn Ball Valve – 1/2", 5000 PSI, 250°F Pressure Washer Valve
Part Number: 2671
Category: Pressure Washer Parts & Accessories → Pressure Washer Valves → Ball Valves
Type: Centurion EZ Turn Ball Valve – 1/2" FNPT, 5,000 PSI Pressure Washer Valve
The Centurion EZ Turn Ball Valve (Part #2671) is a heavy-duty high-pressure shut-off valve designed for commercial and industrial pressure washing systems. Featuring 1/2" FNPT inlet and outlet connections, this ball valve provides reliable flow control while allowing operators to quickly start or stop water flow during pressure washing applications.
Key Features & Benefits
- Part Number: 2671
- Centurion EZ Turn high-pressure ball valve
- 1/2" FNPT inlet
- 1/2" FNPT outlet
- Rated for up to 5,000 PSI
- Maximum operating temperature: 200°F
- EZ Turn design for smooth valve operation
- Exclusive exterior anti-corrosion plating
- Heavy-duty construction for commercial and industrial use
- Provides dependable shut-off and flow control
Technical Specifications
Part Number: 2671
Manufacturer: Centurion
Product Type: Ball Valve
Inlet: 1/2" FNPT
Outlet: 1/2" FNPT
Maximum Working Pressure: 5,000 PSI
Maximum Temperature: 200°F
Exterior Finish: Exclusive Anti-Corrosion Plating
Compatible Applications
Ideal for use with:
- Commercial pressure washers
- Industrial pressure washing systems
- Hot-water pressure washers
- Cold-water pressure washers
- Hose reel plumbing
- Washdown systems
- Soft wash equipment
- Pressure washer plumbing upgrades
- Mobile pressure washing trailers
Function of the Ball Valve
The Centurion 2671 EZ Turn Ball Valve provides positive shut-off and flow control within a high-pressure plumbing system. It helps to:
- Quickly start or stop water flow
- Isolate sections of the pressure washing system for maintenance
- Improve plumbing flexibility
- Reduce downtime during equipment servicing
- Provide reliable operation under high-pressure conditions
The smooth-operating EZ Turn handle reduces operating effort while maintaining dependable sealing performance.
Common Signs Replacement Is Needed
Replace the ball valve if you notice:
- Water leaking around the valve stem or body
- Difficulty turning the handle
- Internal leakage when the valve is closed
- Corrosion or external damage
- Cracked valve body
- Damaged or worn threads
- Excessive operating resistance
Replacing a worn valve restores reliable shut-off performance and helps maintain a leak-free pressure washing system.
Installation & Service Notes
Turn off the pressure washer and relieve all system pressure before installing or replacing the valve.
Install the Centurion 2671 EZ Turn Ball Valve using the 1/2" FNPT inlet and outlet connections. Apply a thread sealant suitable for high-pressure applications where required, and tighten fittings according to the equipment manufacturer's recommendations. After installation, slowly pressurize the system and inspect all connections for leaks before returning the equipment to service.
Important: Never exceed the maximum working pressure of 5,000 PSI or the maximum operating temperature of 200°F. Always verify fitting size and thread compatibility before installation.
Maintenance Recommendations
- Operate the valve periodically to prevent sticking.
- Inspect regularly for leaks or signs of corrosion.
- Check threaded connections for tightness.
- Keep the valve clean and free of dirt or chemical buildup.
- Replace the valve if handle operation becomes difficult or sealing performance deteriorates.
- Operate only within the specified pressure and temperature ratings to maximize service life and ensure safe, reliable performance.
