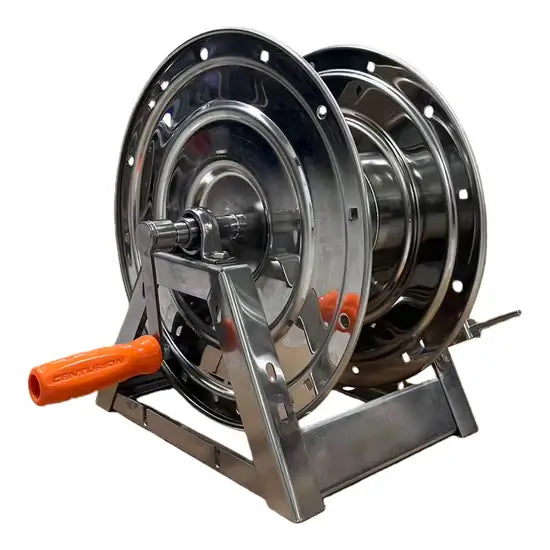

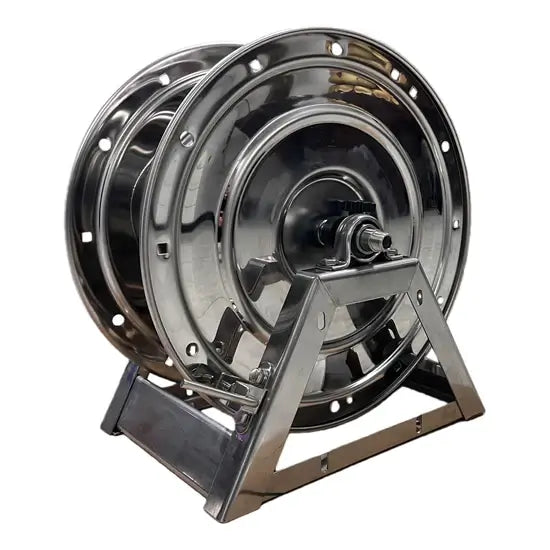

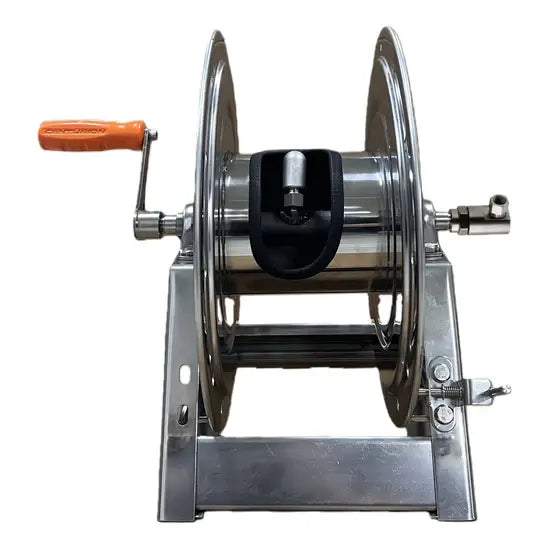

Centurion 300' A-Frame Stainless Steel Hose Reel with Swivel – 3/8", 5000 PSI, 300°F

Part Number: 2559
Category: Pressure Washer Parts & Accessories → Hose Reels & Accessories → Hose Reels
Type: Centurion 300' A-Frame Stainless Steel Hose Reel with Swivel – 3/8", 5,000 PSI

The Centurion 300' A-Frame Stainless Steel Hose Reel with Swivel (Part #2559) is a professional-grade high-pressure hose reel engineered for commercial and industrial pressure washing applications. Built with a rugged stainless steel A-frame construction, this hose reel provides exceptional durability and corrosion resistance while safely storing and managing up to 300 feet of 3/8-inch pressure washer hose.

Key Features & Benefits

• Part Number: 2559
• Centurion heavy-duty A-frame hose reel
• Stores up to 300 ft. of 3/8" pressure washer hose
• Durable stainless steel construction
• Includes high-pressure swivel
• Compatible with 1/2" or 3/8" inlet and outlet connections
• Rated for up to 5,000 PSI
• Maximum operating temperature: 300°F
• Helps prevent hose kinking and twisting
• Corrosion-resistant design for long service life
• Ideal for commercial, industrial, and mobile pressure washing applications

Technical Specifications

Part Number: 2559

Manufacturer: Centurion

Product Type: A-Frame Hose Reel

Hose Capacity: 300 ft. of 3/8" Hose

Inlet: 1/2" or 3/8"

Outlet: 1/2" or 3/8"

Maximum Working Pressure: 5,000 PSI

Maximum Temperature: 300°F

Frame Material: Stainless Steel

Swivel Included: Yes

Compatible Applications

Ideal for use with:

• Commercial pressure washers
• Industrial pressure washing systems
• Hot-water pressure washers
• Cold-water pressure washers
• Mobile pressure washing trailers
• Soft wash systems
• Fleet washing equipment
• Agricultural cleaning equipment
• Industrial washdown systems

Function of the Hose Reel

The Centurion 2559 A-Frame Hose Reel helps organize, protect, and deploy high-pressure hoses while maintaining unrestricted water flow. The integrated swivel allows the hose to rotate independently of the reel, helping to:

• Prevent hose twisting during operation
• Simplify hose deployment and retrieval
• Reduce wear on hoses and fittings
• Improve jobsite organization
• Extend hose service life
• Increase efficiency during pressure washing operations

Its stainless steel construction provides excellent durability in demanding environments where moisture and chemicals are common.

Common Signs Replacement Is Needed

Replace the hose reel if you notice:

• Excessive corrosion or structural damage
• Damaged reel drum or frame
• Swivel leakage or restricted rotation
• Difficulty winding or unwinding the hose
• Bent or damaged mounting components
• Excessive wear from prolonged commercial use

Replacing a worn hose reel helps maintain safe hose management and reliable pressure washer operation.

Installation & Service Notes

Turn off the pressure washer and relieve all system pressure before installing the hose reel.

Mount the Centurion 2559 A-Frame Hose Reel securely to a trailer, truck, wall, or other stable surface using appropriate mounting hardware. Connect the inlet and outlet plumbing using compatible 1/2-inch or 3/8-inch fittings, depending on your system configuration. Apply a thread sealant suitable for high-pressure applications where required, and inspect all connections for leaks after installation.

Important: Never exceed the maximum working pressure of 5,000 PSI or the maximum operating temperature of 300°F. Verify that all hoses, fittings, and accessories connected to the reel are rated to meet or exceed the system's operating pressure and temperature.

Maintenance Recommendations

• Rinse the hose reel after use in corrosive environments.
• Inspect the swivel regularly for leaks or restricted rotation.
• Check mounting hardware periodically for tightness.
• Keep the reel clean and free of dirt and debris.
• Inspect the hose for signs of abrasion or wear during each use.
• Replace worn swivels or damaged components promptly to maintain safe, reliable operation.
• Operate only within the specified pressure and temperature ratings to maximize service life.
