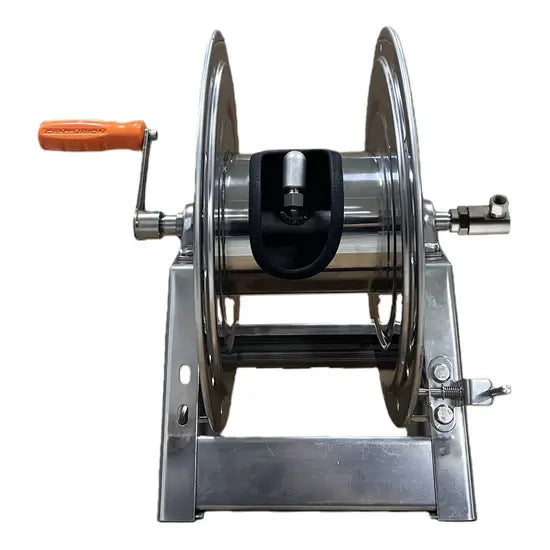

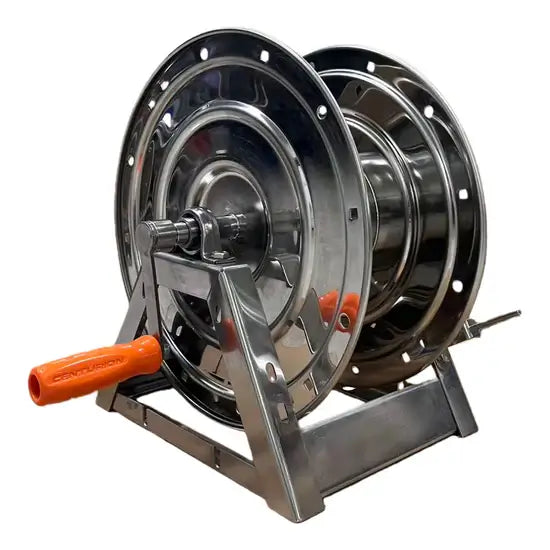

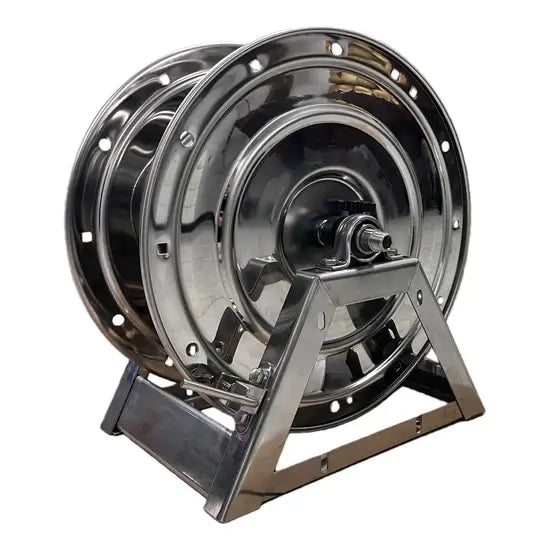

Centurion 150' A-Frame Stainless Steel Hose Reel with Swivel – 3/8", 5000 PSI, 300°F
Part Number: 2558
Category: Pressure Washer Parts & Accessories → Hose Reels & Accessories → Hose Reels
Type: Centurion 150' A-Frame Stainless Steel Hose Reel with Swivel – 3/8", 5,000 PSI
The Centurion 150' A-Frame Stainless Steel Hose Reel with Swivel (Part #2558) is a professional-grade high-pressure hose reel designed for commercial and industrial pressure washing applications. Constructed with a rugged stainless steel A-frame, this hose reel provides exceptional durability and corrosion resistance while safely storing and managing up to 150 feet of 3/8-inch pressure washer hose.
Key Features & Benefits
- Part Number: 2558
- Centurion heavy-duty A-frame hose reel
- Stores up to 150 ft. of 3/8" pressure washer hose
- Durable stainless steel construction
- Includes high-pressure swivel
- Compatible with 1/2" or 3/8" inlet and outlet connections
- Rated for up to 5,000 PSI
- Maximum operating temperature: 300°F
- Helps prevent hose twisting and kinking
- Corrosion-resistant design for long service life
- Ideal for commercial, industrial, and mobile pressure washing applications
Technical Specifications
Part Number: 2558
Manufacturer: Centurion
Product Type: A-Frame Hose Reel
Hose Capacity: 150 ft. of 3/8" Hose
Inlet: 1/2" or 3/8"
Outlet: 1/2" or 3/8"
Maximum Working Pressure: 5,000 PSI
Maximum Temperature: 300°F
Frame Material: Stainless Steel
Swivel Included: Yes
Compatible Applications
Ideal for use with:
- Commercial pressure washers
- Industrial pressure washing systems
- Hot-water pressure washers
- Cold-water pressure washers
- Mobile pressure washing trailers
- Soft wash systems
- Fleet washing equipment
- Agricultural cleaning equipment
- Industrial washdown systems
Function of the Hose Reel
The Centurion 2558 A-Frame Hose Reel provides secure storage and smooth deployment of high-pressure hose while maintaining unrestricted water flow. The integrated swivel allows the hose to rotate independently of the reel, helping to:
- Prevent hose twisting during operation
- Simplify hose deployment and retrieval
- Reduce wear on hoses and fittings
- Improve jobsite organization
- Extend hose service life
- Increase efficiency during pressure washing operations
Its corrosion-resistant stainless steel construction is built to withstand demanding commercial environments and frequent exposure to water and cleaning chemicals.
Common Signs Replacement Is Needed
Replace the hose reel if you notice:
- Excessive corrosion or structural damage
- Bent or damaged reel drum
- Swivel leakage or restricted rotation
- Difficulty winding or unwinding the hose
- Damaged mounting brackets or hardware
- Excessive wear from prolonged commercial use
Replacing a worn hose reel restores reliable hose management and helps prevent unnecessary hose damage.
Installation & Service Notes
Turn off the pressure washer and relieve all system pressure before installing the hose reel.
Mount the Centurion 2558 A-Frame Hose Reel securely to a trailer, truck, wall, or other stable surface using appropriate mounting hardware. Connect the inlet and outlet plumbing using compatible 1/2-inch or 3/8-inch fittings, depending on your system configuration. Apply a thread sealant suitable for high-pressure applications where required, and inspect all connections for leaks after installation.
Important: Never exceed the maximum working pressure of 5,000 PSI or the maximum operating temperature of 300°F. Ensure all hoses, fittings, and accessories connected to the reel are rated for the operating pressure and temperature of your pressure washing system.
Maintenance Recommendations
- Rinse the hose reel after use in corrosive environments.
- Inspect the swivel regularly for leaks or restricted rotation.
- Check mounting hardware periodically for tightness.
- Keep the reel clean and free of dirt and debris.
- Inspect the hose for abrasion, kinks, or wear during regular maintenance.
- Replace worn swivels or damaged components promptly to maintain safe, leak-free operation.
- Operate only within the specified pressure and temperature ratings to maximize service life.
