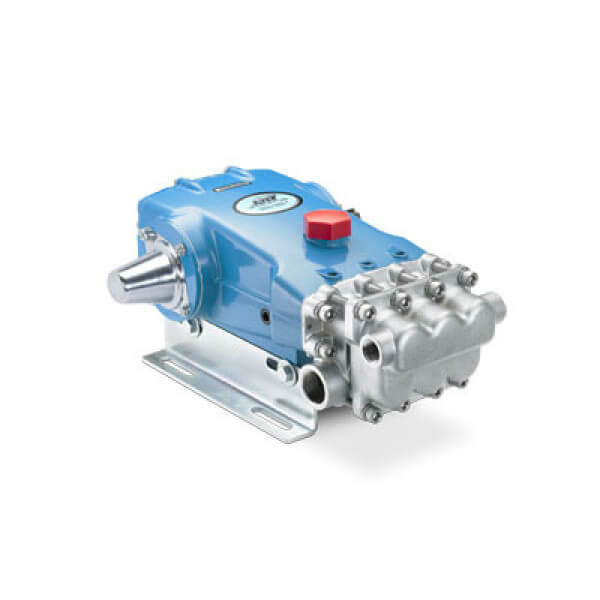

Cat Pumps 2530 Plunger Pump – 21 GPM @ 1200 PSI / 25 GPM @ 1000 PSI, 860–1025 RPM (25PFR Series)

Part Number: 2530
Category: Industrial Plunger Pumps
Type: Cat Pumps 2530 Plunger Pump – 21 GPM @ 1200 PSI / 25 GPM @ 1000 PSI, 860–1025 RPM (25PFR Series)

The Cat Pumps 2530 is a high-volume industrial plunger pump engineered for applications that demand maximum flow with moderate pressure. Delivering up to 25 GPM at 1000 PSI (or 21 GPM at 1200 PSI), this pump is ideal for large-scale wash systems, food processing, conveyor cleaning, municipal equipment, and other industrial operations where throughput is more important than ultra-high pressure.

Product Specifications

• Model / Part Number: 2530

• Series: 25PFR

• Max Flow: 25 GPM (94.6 LPM)

• Max Pressure: 1200 PSI

• Operating Range: 21 GPM @ 1200 PSI / 25 GPM @ 1000 PSI

• Speed: 860–1025 RPM (Rated at 1025 RPM)

• Inlet Port: 1-1/4" NPT (Female)

• Discharge Port: 3/4" NPT (Female)

• Manifold Material: Brass

• Drive Types: Belt, Clutch

• Pump Type: Industrial Plunger Pump

• Condition: New

Features & Benefits

• Extremely high flow output for large-scale wash systems

• Optimized for moderate-pressure, high-volume applications

• Low-RPM operation for cooler running and longer service life

• Heavy-duty plunger design for continuous-duty environments

• Corrosion-resistant brass manifold

• Large inlet and discharge ports to minimize flow restriction

• Ideal for industrial, municipal, and processing facilities
