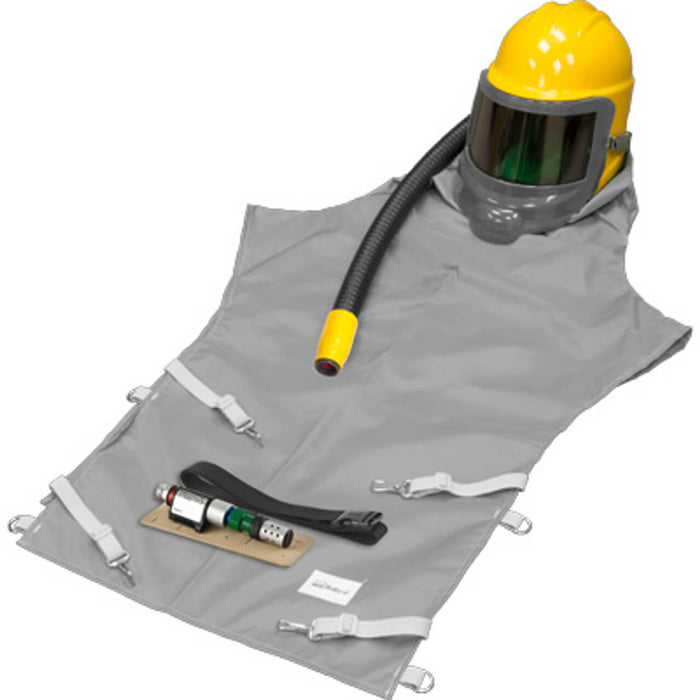

Bullard GenVX (GVX) Compressed Air Respirator – Type CE, 38″ Cape (38VX), HC2400 Hot/Cold Tube, 1/4″ Industrial Interchange
Part Number: GVX3830HC2400
Weight: 5.65 lbs
The Bullard GenVX (GVX) is a Type CE continuous-flow supplied air respirator engineered for abrasive blasting and surface preparation environments where maximum respiratory and upper-body protection is required.
This configuration features the 38″ Blast Cape (38VX) for extended torso and shoulder coverage, along with the HC2400 Hot/Cold Climate Control Tube, allowing the operator to heat or cool the incoming air supply to maintain comfort through extreme temperature job conditions.
With an Assigned Protection Factor (APF) of 1,000, the GenVX provides high-level respiratory safety, while the Z87+ rated high-impact face shield protects against high-velocity abrasive rebound.
Specifications
| Feature | Detail |
|---|---|
| Respirator Type | Type CE Continuous-Flow Supplied Air Respirator |
| Assigned Protection Factor | APF 1,000 (Third-Party Tested) |
| Cape Style | 38″ Blast Cape (38VX) – Extended protective coverage |
| Climate Control | HC2400 Hot/Cold Tube – Adjustable warm or cool airflow |
| Air Connection | 1/4″ Industrial Interchange |
| Helmet System | Bullard GenVX (GVX) Headpiece |
| Weight | 5.65 lbs |
| NIOSH Approval | TC-19C-0489 through TC-19C-0496 (Type C & CE) |
| Head Protection | ANSI/ISEA Z89.1-2014 Type I Class C |
| Face / Eye Protection | ANSI/ISEA Z87.1-2015 Z87+ High-Impact |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Bullard | GVX3830HC2400 |
Key Features & Benefits
-
HC2400 Climate Control Tube provides operator-adjustable heating or cooling of supplied air.
-
Extended 38″ Cape offers enhanced chest, arm, and torso protection from abrasive rebound.
-
APF 1,000 Certified for high-hazard blasting environments.
-
Z87+ High-Impact Visor protects against steel grit, garnet, slag, and shotblast ricochet.
-
Lightweight GVX Helmet Design minimizes neck strain for long-duration blasting.
-
Connects to standard blast air delivery systems via 1/4″ industrial interchange fitting.
-
Built for blast rooms, field blasting, shipyards, bridge & steel structure maintenance, refinery prep & coating operations.
Recommended Applications
-
Abrasive & Media Blasting (Steel Grit, Garnet, Slag, Glass Bead, Aluminum Oxide)
-
Industrial Coatings & Rust Removal
-
Shipyard & Marine Steel Prep
-
Structural Steel, Bridge, Tank & Pipeline Restoration
-
Blast Booth / Field Site Surface Prep
-
Extreme Temperature Work Environments (hot or cold)
