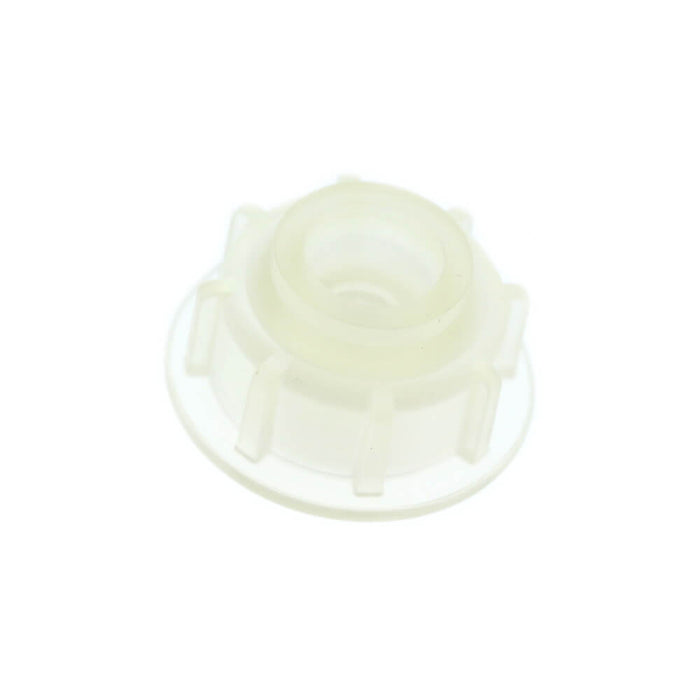

Bostitch N70153 Piston Stop – Genuine OEM Replacement Pneumatic Nailer Piston Stop
Part Number: N70153
Category: Pneumatic Tool Parts → Nailer Parts → Piston Stops & Bumpers
Type: Bostitch N70153 Piston Stop – Genuine OEM Replacement Pneumatic Nailer Piston Stop
The Bostitch N70153 Piston Stop is a genuine OEM replacement piston stop designed for compatible Bostitch pneumatic nailers. This durable plastic component acts as a cushion when the piston retracts into the cylinder after each firing cycle, absorbing impact energy and helping protect internal components from excessive wear. Manufactured to original equipment specifications, it provides a direct-fit replacement for cracked, broken, or worn piston stops, restoring proper cushioning and reliable nailer operation.
Key Features & Benefits
- Part Number: N70153
- Genuine OEM Bostitch replacement part
- Replacement piston stop for pneumatic nailers
- Cushions the piston at the end of each firing cycle
- Helps reduce impact stress on internal components
- Durable high-strength polymer construction
- Direct-fit OEM replacement
- Manufactured to original equipment specifications
Technical Specifications
Part Number: N70153
Manufacturer: Bostitch
Product Type: Piston Stop
Material: High-strength engineered plastic
Application: Pneumatic Nailer Piston Cushion
OEM Part: Yes
Quantity: Sold Individually
Compatible Applications
The Bostitch N70153 Piston Stop fits compatible Bostitch pneumatic nailers, including:
Bostitch
- N70CBM – Coil-Fed Pneumatic Nailer
- N79PT – Pneumatic Stick Nailer
- N79RH – Pneumatic Stick Nailer
- N79WW – Pneumatic Stick Nailer
- N80C – Coil-Fed Nailer
- N80S – Stick Nailer
Always verify your tool model, type number, and original part number before ordering to ensure proper compatibility.
Function of the Piston Stop
The N70153 Piston Stop is designed to:
- Cushion the piston as it returns after firing
- Absorb impact energy inside the cylinder
- Help protect the piston and cylinder from damage
- Reduce wear on internal pneumatic components
- Maintain smooth operating cycles
- Restore the original factory cushioning system
Using a genuine OEM replacement piston stop helps preserve proper nailer performance and reduces stress on critical internal components.
Common Signs Replacement Is Needed
Replace the piston stop if you notice:
- Cracked or broken piston stop
- Pieces of plastic inside the head assembly
- Air leaking from the top of the nailer
- Harsh piston impact during operation
- Inconsistent cycling or driving performance
- Excessive wear discovered during routine maintenance
A damaged piston stop can reduce cushioning, accelerate internal wear, and affect the nailer's overall performance.
Installation & Service Notes
Disconnect the nailer from the compressed air supply and remove all fasteners before servicing.
Remove the head cap according to the manufacturer's service procedure and access the cylinder assembly. Remove the damaged N70153 Piston Stop, cleaning away any broken fragments or debris from the housing. Inspect the piston, driver blade, cylinder, O-rings, and head valve for signs of wear before installing the replacement piston stop in the correct orientation. Reassemble the head assembly, tighten the fasteners evenly, and test the tool for proper operation and air sealing before returning it to service.
Important: Always verify your nailer model and original part number before ordering. If the piston stop has failed, inspect related sealing components and replace any worn O-rings or gaskets during the repair.
Maintenance Recommendations
- Inspect the piston stop during routine head assembly service.
- Replace cracked or deteriorated cushioning components promptly.
- Keep internal components clean and properly lubricated.
- Operate the nailer with clean, dry, regulated compressed air.
- Periodically inspect the piston, driver blade, and cylinder for wear.
- Use genuine OEM replacement parts to maintain factory fit, reliable cushioning, and long-term pneumatic nailer performance.
