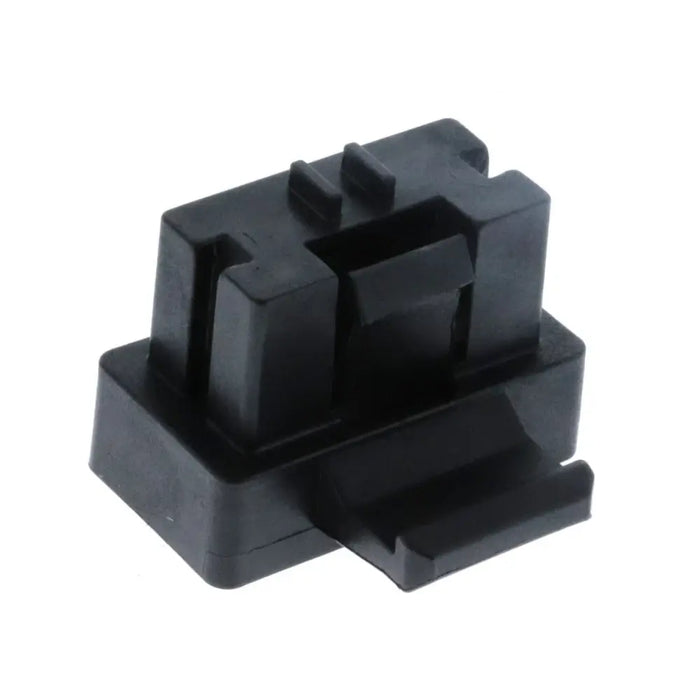

Black & Decker 5140117-96 Connector – Genuine OEM Replacement Leaf Blower Vacuum Connector
Part Number: 5140117-96
Category: Outdoor Power Equipment Parts → Leaf Blower & Vacuum Parts → Vacuum Connectors
Type: Black & Decker 5140117-96 Connector – Genuine OEM Replacement Leaf Blower Vacuum Connector
The Black & Decker 5140117-96 Connector is a genuine OEM replacement connector designed for compatible Black & Decker electric leaf blower/vacuum models. This molded plastic connector serves as the interface between the blower/vacuum housing and the vacuum tube assembly, allowing the vacuum attachment to be securely installed for debris collection. Manufactured to original equipment specifications, it provides a direct-fit replacement for cracked, damaged, or missing connectors, helping restore proper vacuum conversion and secure tube attachment.
Key Features & Benefits
- Part Number: 5140117-96
- Genuine OEM Black & Decker replacement part
- Replacement connector for leaf blower/vacuum systems
- Secures the vacuum tube assembly to the tool
- Durable molded plastic construction
- Direct-fit OEM replacement
- Restores proper vacuum conversion
- Manufactured to original equipment specifications
Technical Specifications
Part Number: 5140117-96
Manufacturer: Black & Decker
Product Type: Vacuum Connector
Material: Molded Plastic
Application: Electric Leaf Blower / Vacuum
OEM Part: Yes
Approximate Dimensions: 1.95 × 1.55 × 1.75 inches
Quantity: Sold Individually
Compatible Applications
The Black & Decker 5140117-96 Connector fits compatible Black & Decker leaf blower/vacuum models, including:
Black & Decker
- BV2900 – 11 Amp Blower Vac
- BV3100 – 12 Amp Blower Vacuum
Always verify your equipment model and original part number before ordering to ensure proper compatibility.
Function of the Connector
The 5140117-96 Connector is designed to:
- Connect the vacuum tube assembly to the blower/vacuum housing
- Secure the vacuum attachment during operation
- Help maintain proper airflow through the vacuum system
- Support efficient debris collection
- Restore the original vacuum conversion function
- Maintain proper alignment of connected components
Using a genuine OEM replacement connector helps ensure a secure fit and reliable vacuum performance.
Common Signs Replacement Is Needed
Replace the connector if you notice:
- Cracked or broken plastic
- Loose-fitting vacuum tube
- Connector no longer locks securely
- Missing connector
- Difficulty converting the unit to vacuum mode
- Excessive wear from repeated attachment and removal
A damaged connector can prevent the vacuum tubes from attaching securely, reducing suction performance and interfering with normal vacuum operation.
Installation & Service Notes
Disconnect the blower/vacuum from the power source before servicing.
Remove the damaged 5140117-96 Connector from the blower/vacuum housing according to the manufacturer's service procedure. Inspect the vacuum tubes, locking tabs, and surrounding mounting surfaces for wear or damage before installing the replacement connector. Position the new connector in the correct orientation and secure it as designed. After installation, attach the vacuum tube assembly and verify that it locks firmly into place and provides a secure, airtight connection before operating the unit.
Important: Always verify your blower/vacuum model and original part number before ordering. Inspect the vacuum tubes and locking mechanisms if the attachment does not fit securely after replacement.
Maintenance Recommendations
- Inspect the connector regularly for cracks or wear.
- Keep the connector and tube interfaces clean and free of debris.
- Avoid forcing the vacuum tubes during installation or removal.
- Store the blower/vacuum in a dry location to minimize plastic degradation.
- Replace damaged connectors promptly to maintain proper vacuum performance.
- Use genuine OEM replacement parts to maintain factory fit, secure attachment, and long-term leaf blower/vacuum performance.
