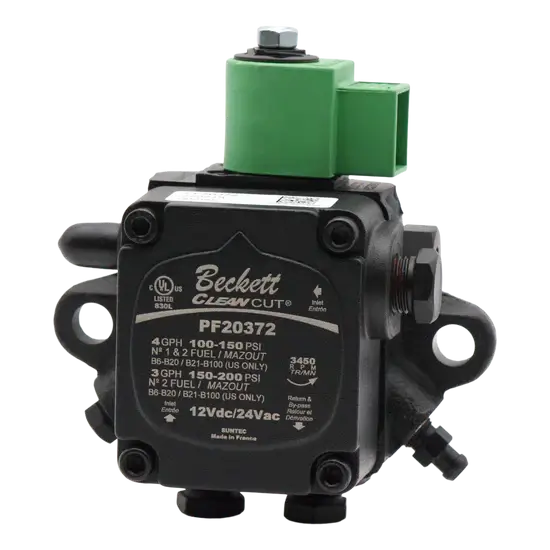

Beckett CleanCut 12V Fuel Pump 2184402U / PF20372U – OEM Replacement Part
Part Number: 2184402U / PF20372U
Category: Pressure Washer Parts → Burner Components → Fuel Pumps
Type: Beckett CleanCut 12VDC Solenoid Fuel Pump
The Beckett CleanCut 12V Fuel Pump (2184402U / PF20372U) is an advanced oil burner fuel pump designed to provide cleaner combustion, improved burner performance, and reliable fuel delivery for modern 12-volt burner systems. Developed in cooperation with Suntec Industries, the CleanCut pump combines the clean-burning benefits of an integrated solenoid valve with the proven lifting capabilities of traditional American fuel pumps.
Key Features & Benefits
- Genuine Beckett OEM replacement fuel pump
- Developed in partnership with Suntec Industries
- Advanced CleanCut solenoid valve technology
- Instant fuel shutoff during burner shutdown
- Helps reduce soot formation and carbon buildup
- Cleaner combustion and burner operation
- Reduced startup load on burner motors
- Fewer moving parts than conventional pumps
- Simplified fuel system design
- Reliable gravity-feed leak-through protection
- Designed for modern electronic burner controls
- Compatible with #2 and lighter fuel oils
- Ideal for mobile 12V burner applications
- Supports improved burner efficiency
Technical Specifications
Part Number: 2184402U
Alternate Part Number: PF20372U
Manufacturer: Beckett
Product Type: Solenoid Fuel Pump
Series: CleanCut
OEM Replacement: Yes
Hydraulic Specifications
Nozzle Pressure Range: 100–200 PSI
Factory Set Pressure: 100 PSI
Operating Fluids: #2 and lighter fuel oils
Fuel Viscosity Range: 1.4–12 cSt
Fuel Temperature Range: 32°F–77°F (0°C–25°C)
Maximum Inlet Pressure: 10 PSI
Maximum Return Pressure: 10 PSI
Maximum Suction Height (One Pipe): 8 ft.
Maximum Suction Height (Two Pipe): 14 ft.
Maximum Rated Speed: 3600 RPM
Maximum Breakaway Torque: 36 oz-in
Solenoid Valve Specifications
Operating Voltage: 12VDC
Power Consumption: 9 Watts
Maximum Operating Pressure: 200 PSI
Maximum Ambient Temperature: 155°F (68°C)
Certification: UL, cUL
Typical Applications
- Hot water pressure washer burners
- Mobile wash systems
- Road striping equipment
- Crack sealing machines
- Asphalt distributors
- Hot patchers
- Mobile heating equipment
- Oil-fired burner systems
- Commercial cleaning equipment
- Industrial burner applications
Common Signs of Fuel Pump Failure
A replacement fuel pump may be required if you notice:
- Hard burner starts
- Delayed burner shutdown
- Excessive soot accumulation
- Inconsistent fuel pressure
- Burner ignition failures
- Fuel delivery interruptions
- Reduced combustion efficiency
- Fuel leakage issues
Performance Advantages
- Solenoid valve instantly stops fuel flow when power is removed
- Reduces soot formation during burner shutdown
- Improves overall combustion quality
- Reduces startup strain on burner motors
- Fewer fittings and moving parts improve reliability
- Excellent fuel lift capability
- Suitable for demanding mobile burner applications
- Helps reduce maintenance and service requirements
Installation Notes
- Disconnect power before servicing burner equipment.
- Verify fuel supply lines are clean and free of contamination.
- Install the replacement pump according to equipment manufacturer specifications.
- Confirm proper fuel line routing and connections.
- Verify operating pressure settings.
- Inspect all fittings for leaks before startup.
- Test burner operation and fuel shutoff performance.
Important: The Beckett CleanCut fuel pump is designed to operate with modern electronic burner controls that provide a pre-purge or valve-on delay, such as a Beckett PD Timer. Controls without a delay may cause hard starts and improper burner operation.
Maintenance Recommendations
- Use clean, water-free fuel at all times.
- Replace fuel filters regularly.
- Inspect fuel lines for restrictions and contamination.
- Monitor operating pressure during routine maintenance.
- Verify proper solenoid valve operation.
- Avoid unnecessary pressure adjustments.
- Inspect fittings and seals periodically.
