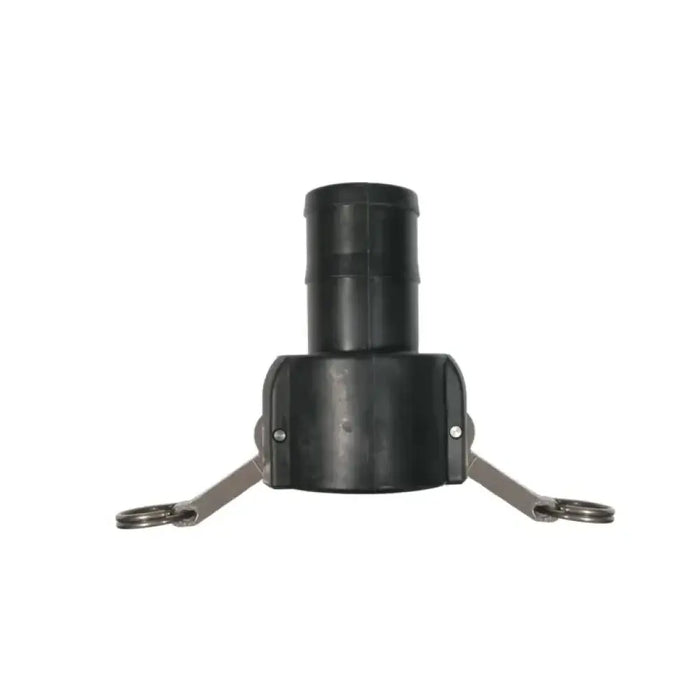

BE Pressure 1-1/4" Type C Polypropylene Camlock Coupler
Part Number: 90.722.114
Category: Camlock Fittings
Type: 1-1/4" Type C Polypropylene Camlock Coupler
The 1-1/4" Type C Polypropylene Camlock Coupler is a female camlock fitting with a hose barb outlet, designed for fast, secure hose connections in water transfer, pumping, and fluid handling systems. Type C camlocks are commonly used where a hose needs to be clamped directly to the fitting while still allowing quick cam-and-groove connections on the inlet side.
Manufactured from high-strength polypropylene, this coupler offers excellent resistance to corrosion, chemicals, and moisture while remaining lightweight and easy to install. It’s well suited for agricultural, industrial, and commercial applications where durability and chemical compatibility are critical.
Specifications
| Specification | Detail |
|---|---|
| Size | 1-1/4 in |
| Camlock Type | Type C |
| Connection | Female Camlock x Hose Barb |
| Hose Barb Size | 1-1/4" |
| Material | Polypropylene |
| Corrosion Resistance | Excellent |
| Chemical Resistance | Excellent |
| Weight | Lightweight |
Key Features
-
Type C Configuration: Female camlock inlet with 1-1/4" hose barb outlet
-
Polypropylene Construction: Non-corrosive, chemical-resistant, and lightweight
-
Quick-Connect Camlock End: Allows fast, tool-free coupling and uncoupling
-
Hose Barb Outlet: Designed for secure clamping to lay-flat or suction hose
-
Reusable & Durable: Built for repeated coupling cycles without performance loss
Typical Applications
-
Water transfer and dewatering systems
-
Pump suction and discharge hose connections
-
Agricultural irrigation and spraying setups
-
Chemical and fluid transfer operations
-
Industrial and commercial hose assemblies
