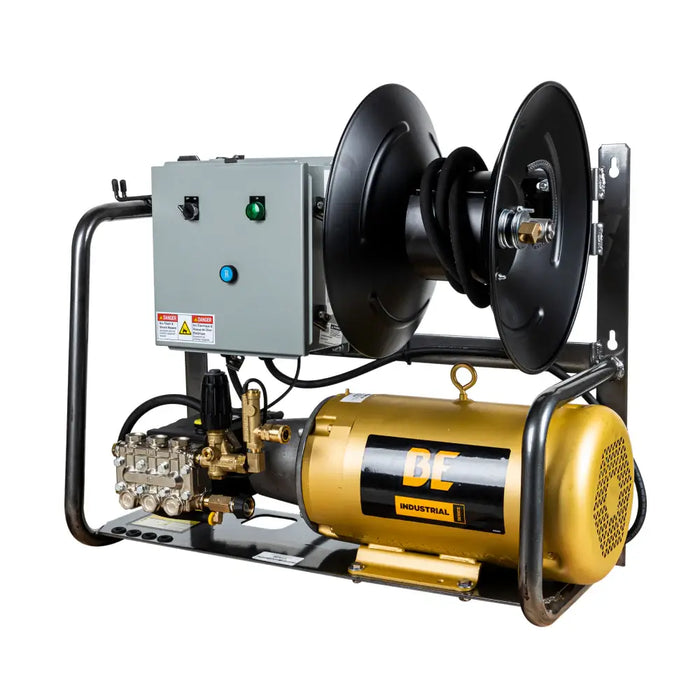

BE Power 3,200 PSI 4.0 GPM Wall Mount Electric Pressure Washer – 10 HP 3-Phase Baldor Motor, General Pump (X-3010FW3GENHT)

Key Specifications

• Pressure: 3,200 PSI

• Flow Rate: 4.0 GPM

• Motor: 10 HP Baldor, 3-Phase, 575V, 17 Amp

• Pump: General T9211 Triplex Pump

• Unloader: External (dump-to-ground capable)

• Max Inlet Temperature: 73°C / 165°F

• RPM: 1,725

• Voltage: 575V (hardwired installation required)

• Frame: Powder-coated wall-mount steel with hose reel & accessory storage

• Series: Commercial

• Hose Length: 50 ft.

• Weight: 203 lbs

• Dimensions (LxWxH): 40” x 21” x 31”

Overview

The X-3010FW3GENHT is the most powerful wall-mounted electric pressure washer in its class, engineered for heavy industrial cleaning, continuous-duty operation, and hot-water compatibility. Delivering 3,200 PSI at 4.0 GPM, this machine is ideal for wash bays, manufacturing floors, food processing plants, equipment washdowns, and sanitation stations.

Powered by a 10 HP Baldor 3-phase motor (575V) and a General triplex plunger pump, the X-3010FW3GENHT is built for demanding, daily use. With a high-temperature rating of 73°C (165°F), it integrates seamlessly into cleaning systems that supply externally heated water, making it a fuel-free, burner-free hot-water solution.

Key Features

• High Output Performance: 3,200 PSI at 4.0 GPM for fast, efficient cleaning.

• Hot Water Ready: Handles up to 73°C (165°F) inlet water.

• 10 HP Baldor Motor (3-Phase, 575V): Continuous-duty rated, energy-efficient, and built for long service life.

• General Triplex Pump: Features forged brass manifold, die-cast body, ceramic plungers, and high-temp seals/plating.

• Direct Drive System: Compact, efficient, and low-maintenance design with fewer moving parts.

• External Unloader Valve: Enhances pump cooling and allows dump-to-ground bypass.

• Auto Stop/Start System (TSS): Motor shuts off when trigger is released for safety and energy savings.

• Wall-Mount Steel Frame: Powder-coated with hose reel and accessory storage.

• Complete Accessory Kit:

  • 50 ft. high-pressure twin-wire braided hose

  • Commercial-grade spray gun and 36” insulated wand

  • 5 quick-connect spray nozzles (0°, 15°, 25°, 40°, Soap)

Applications

Designed for industrial-grade cleaning, the X-3010FW3GENHT is perfect for:

• Food & beverage processing sanitation

• Wash bays for trucks, fleets, and heavy equipment

• Industrial plant floors and maintenance facilities

• Agricultural sanitation environments

• High-output cleaning systems requiring hot water

Installation & Safety

• ⚡ Electrical: Ships without plug or switch — must be hardwired by a licensed electrician into a 575V, 3-phase system.

• Safety Features:

  • Auto stop/start prevents overheating and accidental discharge

  • External unloader valve regulates pressure and protects pump

  • Thermal relief valve protects against overheating

  • Wall-mounted frame keeps the unit off the ground, reducing tripping hazards

Shipping Information

• Weight: 203 lbs

• Dimensions: 40” x 21” x 31”

X-3010FW3GENHT — A high-powered, hot-water compatible, wall-mounted electric pressure washer that combines industrial strength, Baldor reliability, and General Pump durability. The ultimate choice for professionals who demand continuous-duty performance in the toughest environments.
