Part Number: PCL3514M
Category: Electric Motors → Single-Phase Electric Motors → TEFC C-Face Motors
Type: Baldor PCL3514M Electric Motor – 1.5 HP TEFC 1725 RPM 56C C-Face 5/8" Shaft

The Baldor PCL3514M Electric Motor (Part #PCL3514M) is a genuine OEM 1.5 horsepower single-phase electric motor engineered for dependable commercial and industrial performance. Manufactured by Baldor Motors, this Totally Enclosed Fan Cooled (TEFC) motor operates at 1,725 RPM, making it an excellent choice for electric pressure washers, industrial pumps, compressors, wash-down equipment, and other continuous-duty applications requiring high torque and reliable low-speed operation.

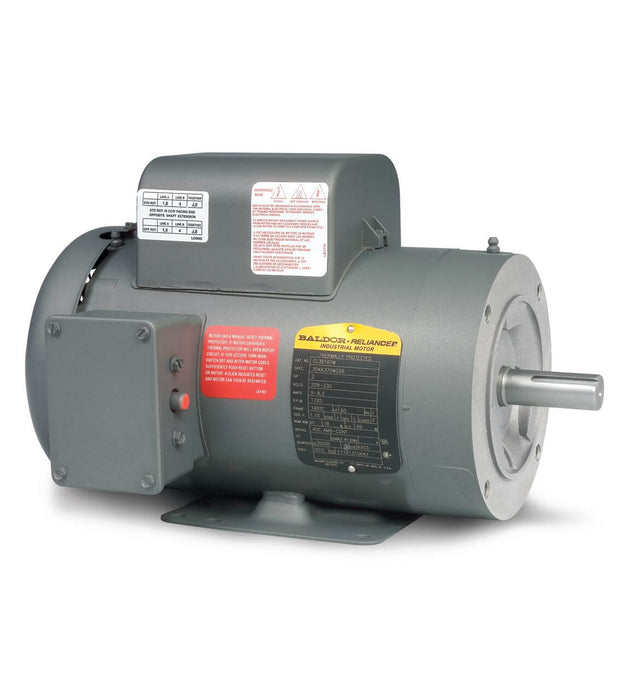

Image shown for illustrative purposes only

Key Features & Benefits

• Genuine Baldor OEM electric motor
• Part Number: PCL3514M
• Heavy-duty TEFC (Totally Enclosed Fan Cooled) design
• 1.5 horsepower output
• Operates at 1,725 RPM
• Single-phase 115/230 VAC operation
• Rugged 56C C-Face mounting
• 5/8-inch keyed shaft
• High starting torque with smooth operation
• Ideal for electric pressure washers, pumps, and industrial machinery
• OEM-quality construction for continuous-duty performance

Technical Specifications

Part Number: PCL3514M

Manufacturer: Baldor Motors

Manufacturer Model Number: PCL3514M

Product Type: Single-Phase TEFC Electric Motor

Horsepower: 1.5 HP

Voltage: 115/230 VAC

Phase: Single Phase

Motor Type: TEFC (Totally Enclosed Fan Cooled)

Operating Speed: 1,725 RPM

Frame Size: 56C

Mounting Style: C-Face

Shaft Diameter: 5/8"

Weight: 53 lbs

OEM Replacement: Yes

Note: The supplied amperage value of 45997 appears to be a data entry error rather than a valid full-load amp rating. Always refer to the motor nameplate for the correct amperage before installation.

Compatible Applications

Designed for use with compatible equipment including:

• Electric pressure washer systems
• Pressure washer pump packages
• Industrial pumps
• Air compressors
• Wash-down equipment
• Manufacturing machinery
• Food processing equipment
• OEM equipment installations
• Motor replacement projects

Always verify voltage, frame size, shaft diameter, mounting style, horsepower, operating speed, and rotation before ordering.

Function of the Electric Motor

The PCL3514M motor helps:

• Deliver reliable 1.5 HP power output
• Drive pressure washer pumps and industrial equipment
• Maintain consistent 1,725 RPM operating speed
• Provide dependable continuous-duty performance
• Deliver smooth operation with excellent torque
• Improve equipment reliability and efficiency

Its TEFC enclosure helps protect internal components from contaminants while extending motor life in demanding operating conditions.

Common Signs Replacement Is Needed

Replace the motor if you notice:

• Failure to start
• Overheating during operation
• Excessive vibration
• Bearing noise
• Reduced power output
• Electrical winding failure
• Damaged shaft
• Excessive current draw
• Frequent circuit breaker trips

Replacing a worn motor restores equipment performance while minimizing downtime.

Installation & Service Notes

• Disconnect electrical power before installation or servicing.
• Verify compatibility with the 56C C-Face, 5/8-inch shaft, voltage, horsepower, and rotation requirements.
• Mount the motor securely using the proper C-Face hardware.
• Ensure accurate shaft alignment with the driven pump or equipment.
• Connect wiring according to Baldor's wiring diagram and local electrical codes.
• Verify correct motor rotation before placing the equipment into service.
• Inspect mounting hardware and electrical connections after initial startup.

Important: Proper shaft alignment and secure mounting help reduce vibration, extend bearing life, and maximize motor performance.

Maintenance Recommendations

• Keep the TEFC housing and cooling fins clean to maintain proper airflow.
• Inspect electrical connections and mounting hardware regularly.
• Monitor operating temperature and current draw during routine maintenance.
• Check shaft alignment periodically to reduce bearing and coupling wear.
• Lubricate bearings according to Baldor's recommended maintenance schedule, where applicable.
• Use only genuine OEM Baldor replacement parts to maintain optimum performance, reliability, and long service life.
