Part Number: PCL1327M
Category: Electric Motors → Single-Phase Electric Motors → ODP C-FFace Motors
Type: Baldor PCL1327M ODP Electric Motor – 5 HP 3450 RPM C-Face 5/8" Shaft 230V OEM Replacement

The Baldor PCL1327M Electric Motor (Part #PCL1327M) is a genuine OEM 5 horsepower single-phase Open Drip Proof (ODP) electric motor engineered for high-performance commercial and industrial applications. Manufactured by Baldor Motors, this premium motor operates at 3,450 RPM, making it an excellent choice for electric pressure washers, industrial pumps, wash-down systems, air compressors, and other direct-drive equipment requiring reliable high-speed operation.

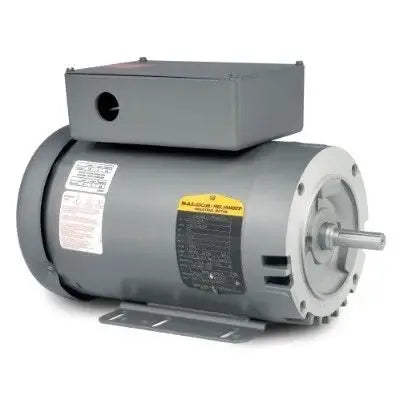

Image shown for illustrative purposes only

Key Features & Benefits

• Genuine Baldor OEM electric motor
• Part Number: PCL1327M
• Open Drip Proof (ODP) enclosure
• Heavy-duty single-phase design
• 5 horsepower output
• Operates at 3,450 RPM
• 230 VAC operation
• Rugged 56HCY C-Face frame
• 5/8-inch keyed shaft
• High-speed performance for direct-drive applications
• Smooth, reliable continuous-duty operation
• Ideal for pressure washers, pumps, and industrial equipment
• OEM-quality construction for long service life

Technical Specifications

Part Number: PCL1327M

Manufacturer: Baldor Motors

Manufacturer Model Number: PCL1327M

Product Type: Single-Phase ODP Electric Motor

Motor Enclosure: Open Drip Proof (ODP)

Horsepower: 5 HP

Voltage: 230 VAC

Phase: Single Phase

Full Load Amps: 23A

Operating Speed: 3,450 RPM

Frame Size: 56HCY

Mounting Style: C-Face

Shaft Diameter: 5/8"

Weight: 58 lbs

OEM Replacement: Yes

Compatible Applications

Designed for use with compatible equipment including:

• Electric pressure washer systems
• Direct-drive pressure washer pumps
• Industrial plunger pumps
• Wash-down equipment
• Air compressors
• Industrial machinery
• Manufacturing equipment
• OEM equipment installations
• Motor replacement projects

Always verify voltage, frame size, shaft diameter, mounting style, horsepower, operating speed, and rotation before ordering.

Function of the Electric Motor

The PCL1327M motor helps:

• Deliver reliable 5 HP power output
• Drive pressure washer pumps and industrial equipment
• Maintain consistent 3,450 RPM operating speed
• Provide dependable continuous-duty performance
• Improve cleaning system efficiency
• Support demanding commercial and industrial applications

Its high-speed design makes it ideal for direct-drive pressure washer systems requiring maximum performance and dependable operation.

Common Signs Replacement Is Needed

Replace the motor if you notice:

• Failure to start
• Overheating during operation
• Excessive vibration
• Bearing noise
• Reduced power output
• Electrical winding failure
• Damaged shaft
• Excessive current draw
• Frequent circuit breaker trips

Replacing a worn motor restores equipment performance while minimizing costly downtime.

Installation & Service Notes

• Disconnect electrical power and follow proper lockout/tagout procedures before installation.
• Verify compatibility with the 56HCY C-Face, 5/8-inch shaft, voltage, horsepower, operating speed, and rotation requirements.
• Mount the motor securely using the appropriate hardware.
• Ensure proper shaft alignment with the driven pump or equipment.
• Connect wiring according to Baldor's wiring diagram and all applicable electrical codes.
• Verify correct motor rotation before placing the equipment into service.
• Inspect mounting hardware and electrical connections after initial startup.

Important: The Open Drip Proof (ODP) enclosure is designed for clean, dry, and well-ventilated environments. For wash-down applications or areas exposed to moisture, a Totally Enclosed Fan Cooled (TEFC) motor is generally recommended.

Maintenance Recommendations

• Keep ventilation openings clean and unobstructed.
• Inspect electrical connections and mounting hardware regularly.
• Monitor operating temperature and current draw during routine maintenance.
• Check shaft alignment periodically to reduce bearing and coupling wear.
• Lubricate bearings according to Baldor's recommended maintenance schedule, where applicable.
• Use only genuine OEM Baldor replacement parts to maintain optimum performance, reliability, and long service life.
