Part Number: CL1410M
Category: Electric Motors → Single-Phase Electric Motors → ODP C-Face Motors
Type: Baldor CL1410M ODP Electric Motor – 5 HP 1725 RPM C-Face 1-1/8" Shaft 208-230V OEM Replacement

The Baldor CL1410M Electric Motor (Part #CL1410M) is a genuine OEM 5 horsepower single-phase Open Drip Proof (ODP) electric motor engineered for commercial and industrial equipment requiring dependable low-speed performance. Manufactured by Baldor Motors, this heavy-duty motor operates at 1,725 RPM, making it an excellent choice for pressure washers, steam cleaners, pumps, and direct-drive or coupled industrial equipment.

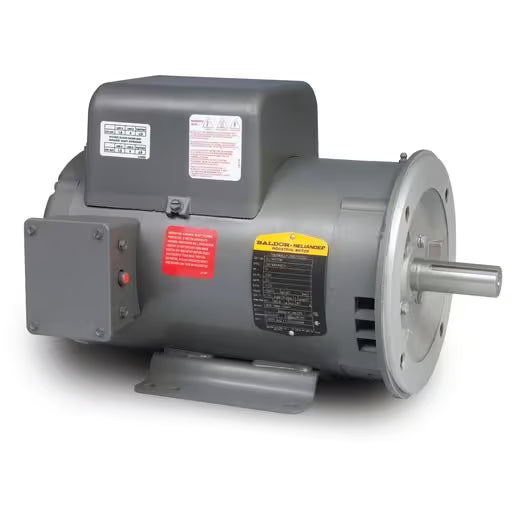

Image shown for illustrative purposes only

Key Features & Benefits

• Genuine Baldor OEM electric motor
• Part Number: CL1410M
• Open Drip Proof (ODP) enclosure
• Heavy-duty single-phase design
• 5 horsepower output
• Operates at 1,725 RPM
• 208/230 VAC operation
• Rugged 184TC C-Face frame
• 1-1/8-inch keyed shaft
• Precision ball bearing construction
• Manual thermal overload protection
• 200°C copper windings for durability
• 1.15 service factor for additional operating capacity
• Ideal for pressure washers, steam cleaners, and industrial equipment

Technical Specifications

Part Number: CL1410M

Manufacturer: Baldor Motors

Manufacturer Model Number: CL1410M

Specification Number: 36F484W903

Product Type: Single-Phase ODP Electric Motor

Motor Enclosure: Open Drip Proof (ODP)

Horsepower: 5 HP

Voltage: 208/230 VAC

Phase: Single Phase

Full Load Amps: 25A @ 208V / 23A @ 230V

Operating Speed: 1,725 RPM

Frame Size: 184TC

Mounting Style: Rigid Base with C-Face

Shaft Diameter: 1-1/8"

Service Factor: 1.15

Full Load Efficiency: 82.5%

Power Factor: 87%

Bearing Type: Ball Bearing

Thermal Protection: Manual Thermal Overload

Windings: 200°C Copper

Shipping Weight: 99 lbs

OEM Replacement: Yes

Compatible Applications

Designed for use with compatible equipment including:

• Pressure washer systems
• Steam cleaning equipment
• Industrial pumps
• Direct-drive pump systems
• Coupled pump systems
• Industrial machinery
• Manufacturing equipment
• OEM equipment installations
• Motor replacement projects

Always verify voltage, frame size, shaft diameter, mounting style, horsepower, operating speed, and rotation before ordering.

Function of the Electric Motor

The CL1410M motor helps:

• Deliver reliable 5 HP power output
• Drive pressure washer pumps and industrial equipment
• Maintain consistent 1,725 RPM operating speed
• Provide excellent starting torque
• Support continuous-duty commercial applications
• Improve equipment efficiency and reliability

Its lower operating speed and heavy-duty construction help reduce wear while delivering dependable long-term performance.

Common Signs Replacement Is Needed

Replace the motor if you notice:

• Failure to start
• Overheating during operation
• Excessive vibration
• Bearing noise
• Reduced power output
• Electrical winding failure
• Damaged shaft
• Frequent overload trips
• Excessive current draw

Replacing a worn motor restores equipment performance while minimizing costly downtime.

Installation & Service Notes

• Disconnect electrical power and follow proper lockout/tagout procedures before installation.
• Verify compatibility with the 184TC C-Face, 1-1/8-inch shaft, voltage, horsepower, and rotation requirements.
• Mount the motor securely using the appropriate hardware.
• Ensure proper shaft alignment with the driven pump or equipment.
• Connect wiring according to Baldor's wiring diagram and all applicable electrical codes.
• Verify correct motor rotation before placing the equipment into service.
• Test the manual thermal overload protection after installation.
• Inspect electrical connections and mounting hardware after initial startup.

Important: The Open Drip Proof (ODP) enclosure is intended for clean, dry, and well-ventilated environments. For wet or dusty locations, a Totally Enclosed Fan Cooled (TEFC) motor is generally recommended.

Maintenance Recommendations

• Keep ventilation openings clean and unobstructed.
• Inspect electrical connections and mounting hardware regularly.
• Monitor operating temperature and current draw during routine maintenance.
• Check shaft alignment periodically to reduce bearing and coupling wear.
• Lubricate bearings according to Baldor's recommended maintenance schedule, where applicable.
• Periodically test the manual thermal overload protector for proper operation.
• Use only genuine OEM Baldor replacement parts to maintain optimum performance, reliability, and long service life.
