Aluminum Table Top Drop Skid – Key Start GX390 – Kranzle AQ Pump – GX200 Comet P36 Combo – PN 9800497

Part Number: 9800497
Category: Pressure Washer Systems → Truck Skid Rigs → Dual Wash / Soft Wash Combination Systems
Type: Aluminum Table Top Drop Skid – Key Start GX390 – Kranzle AQ Pump – GX200 Comet P36 Combo

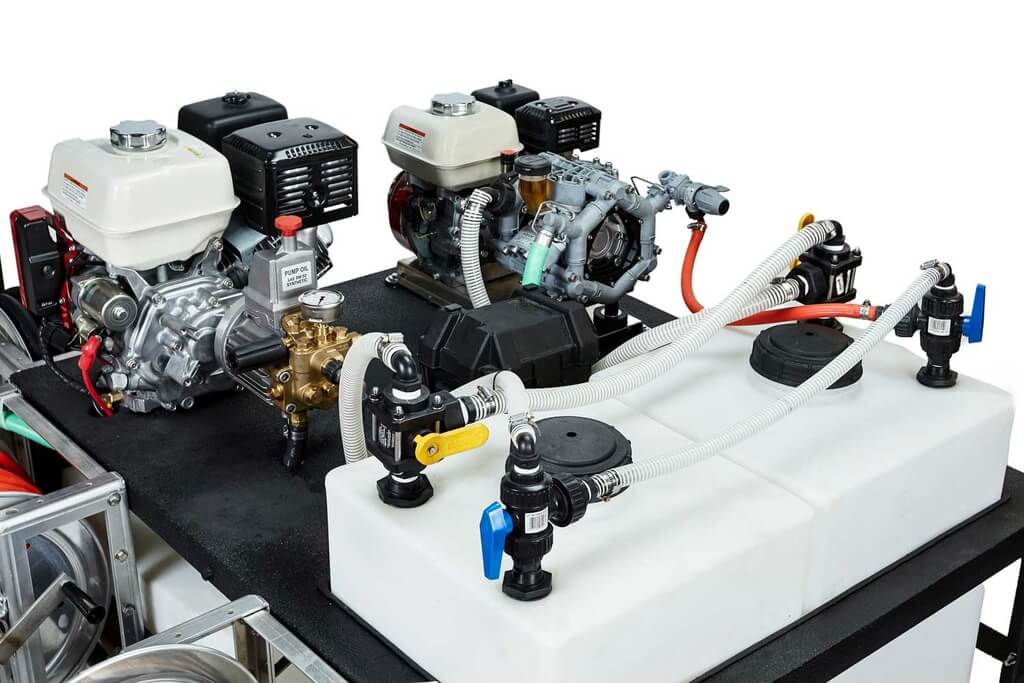

The Aluminum Table Top Drop Skid – Key Start GX390 – Kranzle AQ Pump – GX200 Comet P36 Combo – PN 9800497 is a complete dual-system truck-mounted cleaning rig built for contractors who need both high-pressure washing and low-pressure soft washing capabilities in one fully integrated mobile platform.

High Pressure System

Powered by an electric start Honda GX390 (LX Series) with an 18.5 amp charging system, this system drives a gear-reduced Kranzle AQ high-pressure pump, producing:

• 4.5 GPM @ 3000 PSI

The high-pressure system pulls from the integrated 100-gallon water tank.

Low Pressure / Soft Wash System

Powered by a Honda GX200 pull-start engine, this system drives a gear-driven Comet P36 diaphragm pump, producing:

• 5.0 GPM @ 150 PSI

The low-pressure system pulls from dual chemical tanks for dedicated soft washing applications.

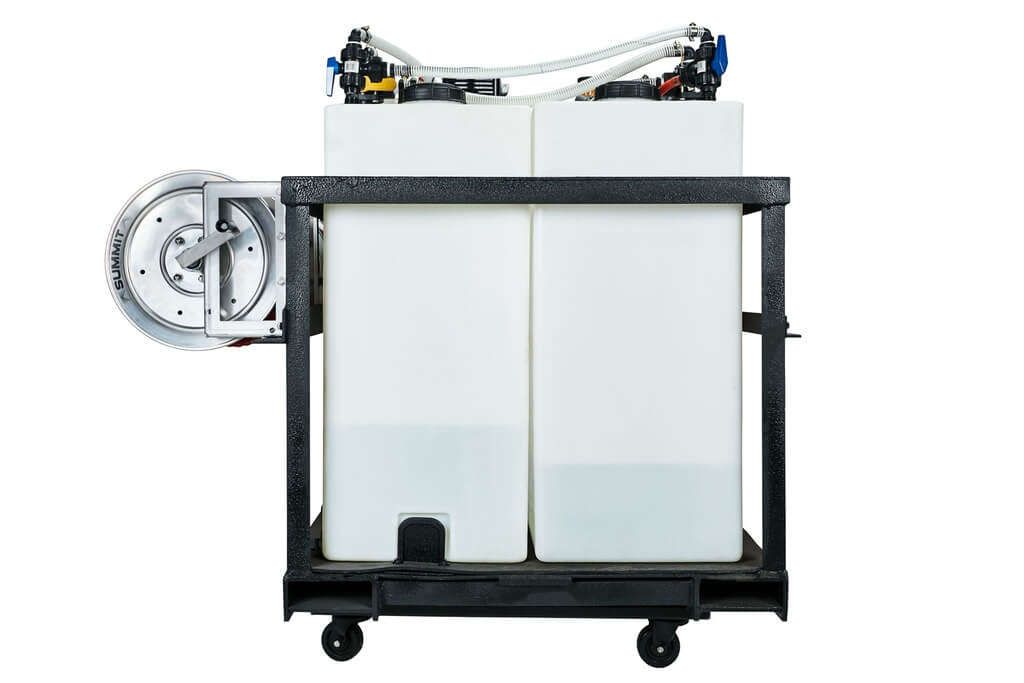

Tank Capacity

• (1) 100 Gallon Water Tank
• (2) 50 Gallon DOT Approved Chemical Tanks

Total Chemical Storage: 100 Gallons

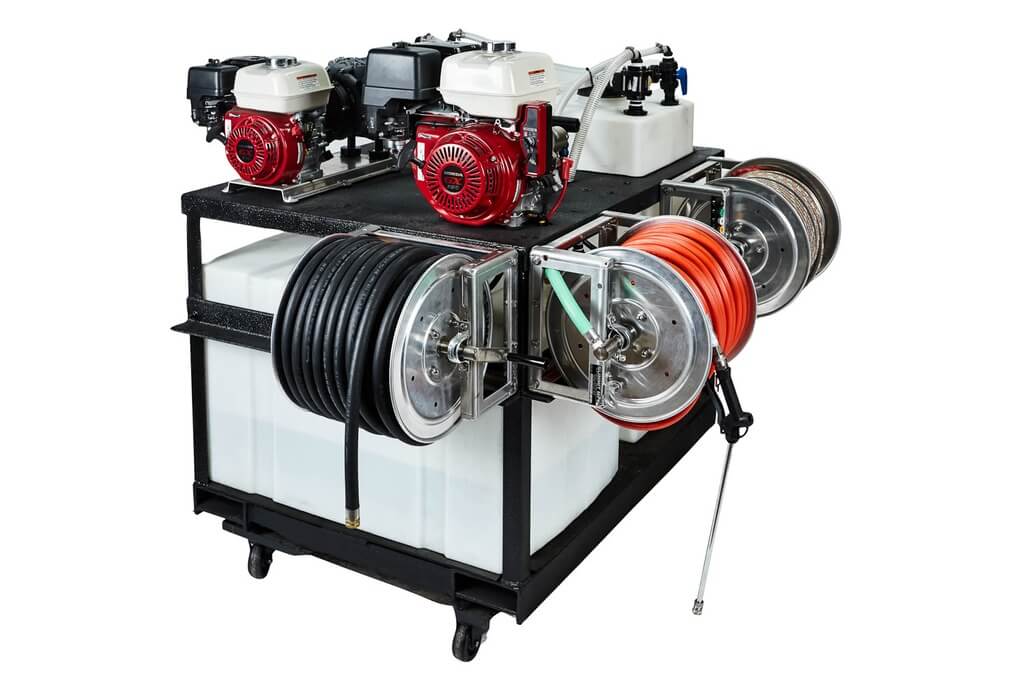

Included Hose Reels & Hose Capacity

• Aluminum hose reel with 125’ of 3/4” contractor-grade garden hose
• Aluminum hose reel with 275’ of 1/2” agricultural hose
• Aluminum hose reel with 250’ of 3/8” high-pressure hose

Included Accessories

• (2) Stainless Steel Lance Holders

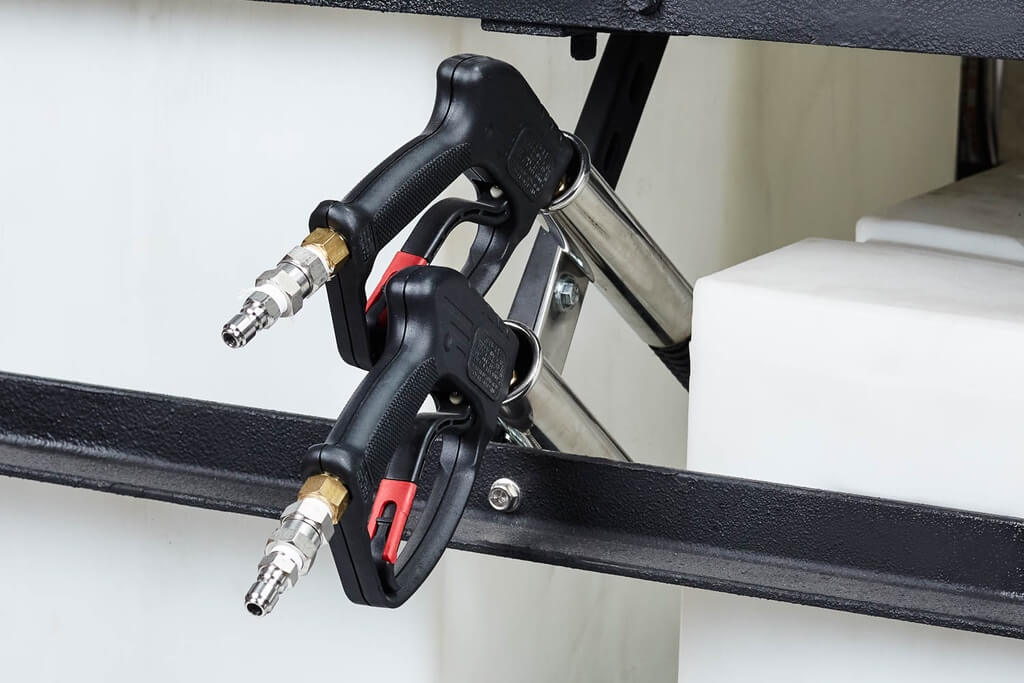

• 36” Gunjet Assembly
• 12” Gunjet Assembly
• Low Pressure Trigger Assembly
• 12V Battery
• Battery Box

Key Features & Benefits

• Complete truck-mounted cleaning system
• Combines pressure washing and soft washing capabilities
• Electric start high-pressure system
• Dedicated chemical application system
• Large onboard water capacity
• Large onboard chemical storage
• Multiple hose reels included
• Capable of cleaning up to three stories under optimal conditions
• Built on corrosion-resistant aluminum skid platform
• Ideal for serious mobile cleaning contractors

Technical Specifications

Part Number: 9800497
Engine 1: Honda GX390 Electric Start (LX Series)
High Pressure Pump: Kranzle AQ Gear Reduction Pump
High Pressure Output: 4.5 GPM @ 3000 PSI

Engine 2: Honda GX200 Pull Start
Low Pressure Pump: Comet P36 Diaphragm Pump
Low Pressure Output: 5.0 GPM @ 150 PSI

Water Tank: 100 Gallons
Chemical Tanks: (2) 50 Gallon DOT Approved Tanks
Recommended Truck Payload: Minimum 2,250 lbs
Shipping Method: Freight Only

Typical Applications

• House washing
• Roof cleaning
• Commercial exterior cleaning
• Soft washing
• Pressure washing
• Fleet washing
• Property maintenance
• Multi-service contractor operations

Performance Advantages

• Combines two revenue-generating systems in one rig
• Reduces setup time for mobile contractors
• Large onboard storage improves job efficiency
• Cleans and rinses up to three stories
• Designed for serious professional operations
• Built for high-volume exterior cleaning businesses
