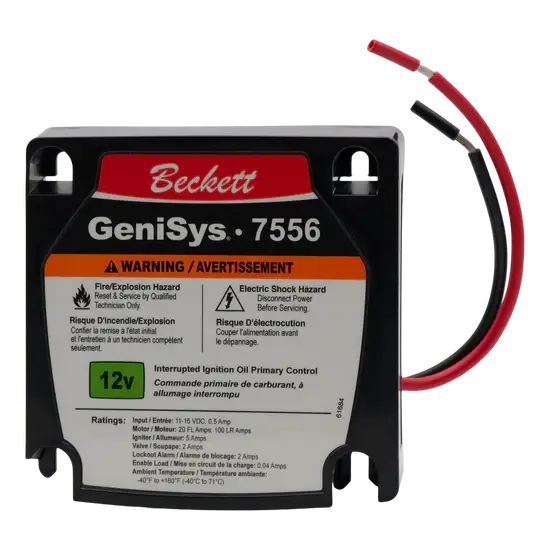

7556 Genisys 12V Primary Control Assembly – OEM Replacement Part
Part Number: 6639
Category: Pressure Washer Parts → Burner Components → Primary Controls & Ignition Controls
Type: 7556 Genisys 12V Primary Control Assembly
The 7556 Genisys 12V Primary Control Assembly (Part #6639) is an advanced electronic burner safety control designed for 12 VDC oil burner systems used on pressure washers, asphalt maintenance equipment, road stripers, crack sealers, hot patchers, asphalt distributors, and other mobile burner applications. Manufactured by Beckett, the Genisys control provides reliable burner management, flame supervision, safety shutdown protection, and ignition control in demanding commercial environments.
Key Features & Benefits
- Genuine Genisys 12V primary burner control assembly
- Designed for 12 VDC oil burner applications
- Compatible with cad cell flame sensors
- Controls burner motor, ignitor, and solenoid valve
- 15-second safety lockout timing
- Programmable valve-on delay function
- Programmable motor-off delay for chamber cooling
- Interrupted ignition capability
- Automatic relight function
- Welded relay protection with redundant motor relays
- Built-in fused protection
- Lockout alarm output for visual or audible notification
- High ambient temperature rating
- Ideal for mobile and industrial burner systems
Technical Specifications
Part Number: 6639
Model: 7556 Genisys
Product Type: Primary Burner Control Assembly
Voltage: 12 VDC Nominal
Input Voltage Range: 11–16 VDC
Current Draw: 160 mA plus connected loads
Lockout Time: 15 Seconds
Ignition Type: Interrupted Ignition
Relight Function: Yes
Fused Protection: Yes
OEM Replacement: Yes
Electrical Ratings
Inputs
Voltage: 12 VDC Nominal (11–16 VDC)
Current: 160 mA plus burner motor, ignitor, and valve loads
Outputs
Motor Output:
- 12 VDC
- 20 Full Load Amps (FLA)
- 100 Locked Rotor Amps (LRA)
Ignitor Output:
- 12 VDC
- 5 Amps
Solenoid Valve Output:
- 12 VDC
- 2 Amps
Lockout Alarm Output:
- 12 VDC
- 2 Amps
Environmental Ratings
Operating Temperature:
-40°F to +160°F (-40°C to +71°C)
Storage Temperature:
-40°F to +160°F (-40°C to +71°C)
Humidity:
5% to 95% Relative Humidity (Condensing)
Compatible Applications
Commonly used in:
- Hot water pressure washers
- Mobile wash rigs
- Road striping equipment
- Crack sealing equipment
- Hot patch asphalt systems
- Asphalt distributors
- Fuel oil burner systems
- Commercial burner assemblies
- Industrial heating equipment
- Mobile maintenance equipment
Common Signs of Primary Control Failure
A replacement primary control may be needed if you notice:
- Burner fails to start
- Frequent lockouts
- No ignition output
- Cad cell flame sensing faults
- Intermittent burner operation
- Motor fails to energize
- Solenoid valve control issues
- Alarm or fault indications
Performance Advantages
- Provides advanced burner safety monitoring
- Supports reliable flame supervision
- Helps prevent unsafe burner operation
- Programmable cooling delays improve burner longevity
- Interrupted ignition reduces ignitor wear
- Relight capability improves operational reliability
- Redundant relay design enhances safety
- Designed for severe operating environments
- Ideal for mobile and commercial equipment
Installation Instructions
- Disconnect power from the burner system.
- Verify all burner components are cool and safe to service.
- Remove the existing primary control assembly.
- Inspect wiring, cad cell sensor, ignitor, and burner motor connections.
- Install the new 7556 Genisys control.
- Connect all wiring according to equipment specifications.
- Verify proper voltage and component compatibility.
- Restore power and test burner operation.
- Confirm proper ignition, flame sensing, and lockout functionality.
Note: Installation should be performed according to burner manufacturer specifications and applicable electrical standards.
Maintenance Recommendations
- Inspect wiring connections regularly.
- Verify proper cad cell operation during service intervals.
- Check lockout and alarm functions periodically.
- Keep burner control compartment clean and dry.
- Inspect connected ignitor, motor, and valve circuits.
- Replace damaged sensors or components promptly
