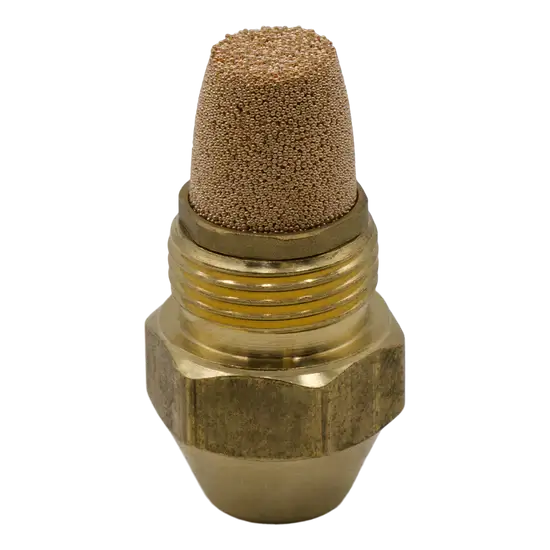

60A Red Hollow Cone Burner Nozzle 4.00 GPH – OEM Replacement Part
Part Number: 1320
Category: Pressure Washer Parts → Burner Components → Burner Nozzles
Type: Delavan 60A Hollow Cone Oil Burner Nozzle
The Delavan 60A Red Hollow Cone Burner Nozzle 4.00 GPH is a precision-engineered oil burner nozzle designed to provide efficient fuel atomization, dependable ignition, and consistent combustion performance in hot water pressure washers, industrial burners, and commercial heating equipment. Featuring a 60-degree hollow cone spray pattern and 4.00 gallon per hour (GPH) flow rate, this nozzle is ideal for higher-capacity burner systems that utilize hollow cone air patterns.
Key Features & Benefits
- Genuine Delavan OEM burner nozzle
- 4.00 GPH fuel flow rate
- 60-degree spray angle
- Type A hollow cone spray pattern
- Designed for hollow cone burner air systems
- Fast, reliable ignition performance
- Stable flame characteristics
- Efficient fuel atomization
- Low-noise combustion operation
- Integrated sintered filter protection
- Precision-machined internal components
- Ideal for commercial and industrial burner applications
- Consistent spray distribution and burner performance
Technical Specifications
Part Number: 1320
Manufacturer: Delavan
Series: Type A Hollow Cone
Size: 60A 4.00
Flow Rate: 4.00 GPH
Spray Angle: 60°
Spray Pattern: Hollow Cone
Color Code: Red
Thread Size: 9/16"-24
Fuel Type: Fuel Oil
OEM Replacement: Yes
Quality Certification: ISO 9001 Certified
Delavan Type A Hollow Cone Design
The Type A hollow cone pattern is designed to:
- Concentrate fuel distribution around the outside of the spray cone
- Improve fuel-air mixing efficiency
- Promote dependable ignition
- Deliver smooth flame characteristics
- Reduce combustion noise
- Improve overall burner performance
- Support efficient heat generation
Advanced Manufacturing Features
- Precision-machined spray components
- Reduced distributor size for improved flow characteristics
- Shorter tangential slots to minimize plugging
- Aerodynamic nozzle body design
- Rolled threads to eliminate burrs and machining debris
- Sintered filter sized for optimal protection
- Individually tested and cleaned before shipment
Typical Applications
- Hot water pressure washer burners
- Commercial oil-fired heating systems
- Industrial burner assemblies
- Boiler and furnace systems
- Asphalt maintenance equipment
- Mobile wash rigs
- Agricultural heating equipment
- Fuel oil combustion systems
- Burner maintenance and service operations
Performance Benefits
- Reliable burner ignition
- Consistent combustion quality
- Improved atomization efficiency
- Stable flame patterns
- Reduced smoke and soot formation
- Enhanced fuel distribution
- Long service life
- Dependable operation in demanding environments
Common Signs of Nozzle Wear
Replace the burner nozzle if you notice:
- Delayed or difficult ignition
- Excessive smoke production
- Unstable flame patterns
- Increased fuel consumption
- Reduced heating efficiency
- Poor burner performance
- Restricted fuel flow
- Carbon buildup around the burner assembly
Installation Notes
- Disconnect power and fuel supply before servicing.
- Remove the existing burner nozzle carefully.
- Inspect filters and fuel lines for contamination.
- Install the replacement nozzle using approved burner service procedures.
- Verify the flow rate, spray angle, and spray pattern match equipment requirements.
- Test burner operation after installation.
- Adjust combustion settings as required by the equipment manufacturer.
Important: Always use the exact nozzle size, spray angle, and spray pattern specified by the burner manufacturer to maintain safe and efficient burner operation.
Maintenance Recommendations
- Replace nozzles during scheduled burner maintenance.
- Keep fuel systems clean and free from water contamination.
- Inspect fuel filters regularly.
- Monitor burner flame quality and combustion efficiency.
- Verify fuel pressure settings during service.
- Replace worn nozzles promptly to maintain optimal performance.
