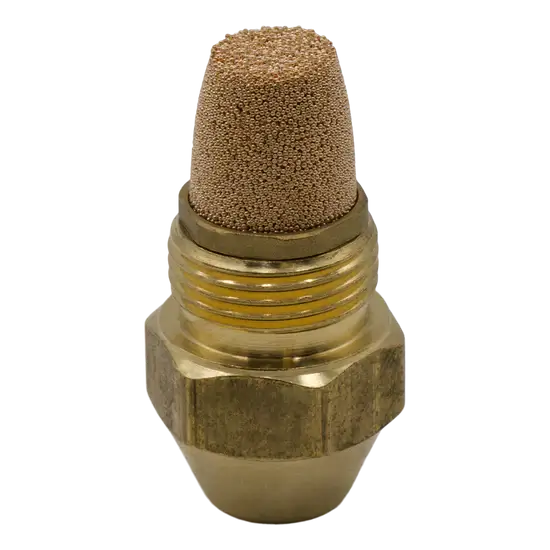

60A Red Hollow Cone Burner Nozzle 1.50 GPH – OEM Replacement Part
Part Number: 1317
Category: Pressure Washer Parts → Burner Components → Burner Nozzles
Type: Delavan 60A Hollow Cone Oil Burner Nozzle
The Delavan 60A Red Hollow Cone Burner Nozzle 1.50 GPH is a precision-manufactured oil burner nozzle designed to provide reliable fuel atomization, fast ignition, and efficient combustion performance in pressure washer burners, heating systems, and industrial oil-fired equipment. Featuring a 60-degree hollow cone spray pattern and 1.50 gallon per hour (GPH) flow rate, this nozzle is ideal for burner systems designed around hollow cone air patterns.
Key Features & Benefits
- Genuine Delavan OEM burner nozzle
- 1.50 GPH fuel flow rate
- 60-degree spray angle
- Hollow cone Type A spray pattern
- Designed for hollow cone burner air patterns
- Fast ignition performance
- Stable flame characteristics
- Low-noise combustion operation
- Precision fuel atomization
- Durable construction for long service life
- Integrated filtration for nozzle protection
- Ideal for commercial and industrial burner systems
- Consistent fuel distribution and combustion efficiency
Technical Specifications
Part Number: 1317
Manufacturer: Delavan
Series: Type A Hollow Cone
Size: 60A 1.50
Flow Rate: 1.50 GPH
Spray Angle: 60°
Spray Pattern: Hollow Cone
Color Code: Red
Thread Size: 9/16"-24
Fuel Type: Fuel Oil
OEM Replacement: Yes
Hollow Cone Spray Pattern Benefits
The Type A hollow cone design provides:
- Excellent ignition characteristics
- Consistent flame stability
- Reduced burner noise
- Improved fuel atomization
- Reliable combustion performance
- Efficient fuel and air mixing
- Enhanced burner efficiency
Typical Applications
- Hot water pressure washer burners
- Oil-fired burner systems
- Commercial heating equipment
- Industrial combustion equipment
- Boiler burners
- Fuel oil heating systems
- Mobile wash systems
- Asphalt maintenance equipment
- Agricultural heating equipment
- Burner maintenance and repair applications
Performance Advantages
- Precision atomization improves combustion efficiency
- Hollow cone pattern promotes reliable ignition
- Supports smooth burner operation
- Reduces combustion noise
- Consistent fuel delivery characteristics
- Durable design for demanding applications
- Compatible with many commercial burner systems
- Helps maintain proper flame quality
Common Signs of Nozzle Wear
A replacement nozzle may be required if you notice:
- Difficult burner ignition
- Excessive smoke production
- Poor flame quality
- Reduced heating performance
- Increased fuel consumption
- Unstable combustion
- Frequent burner service issues
- Restricted fuel flow
Installation Notes
- Disconnect power and fuel supply before servicing.
- Remove the existing burner nozzle carefully.
- Inspect filters and fuel lines for contamination.
- Install the replacement nozzle using proper burner service procedures.
- Verify the required flow rate and spray angle match equipment specifications.
- Inspect burner operation after installation.
- Adjust combustion settings as required by the burner manufacturer.
Note: Always use the nozzle size, spray angle, and spray pattern specified by the burner manufacturer to maintain proper performance and safe operation.
Maintenance Recommendations
- Replace burner nozzles during routine service intervals.
- Maintain clean fuel filters.
- Use clean, water-free fuel.
- Inspect burner combustion settings regularly.
- Monitor flame quality and burner performance.
- Replace nozzles showing signs of wear or contamination.
