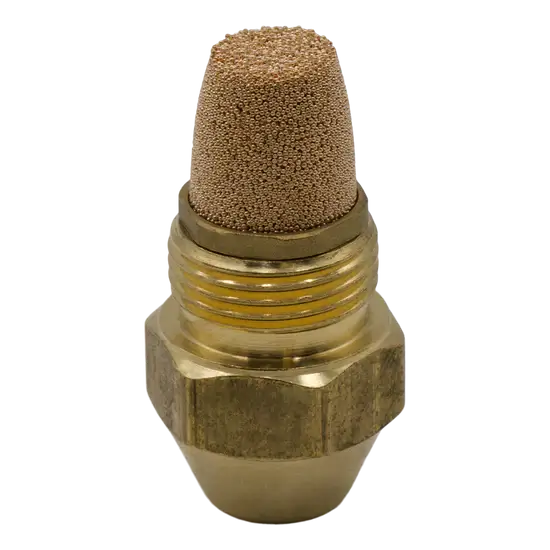

60A Red Hollow Cone Burner Nozzle 1.35 GPH – OEM Replacement Part
Part Number: 1316
Category: Pressure Washer Parts → Burner Components → Burner Nozzles
Type: Delavan 60A Hollow Cone Oil Burner Nozzle
The Delavan 60A Red Hollow Cone Burner Nozzle 1.35 GPH is a high-quality replacement oil burner nozzle engineered for consistent fuel atomization, reliable ignition, and efficient combustion performance. Featuring a 60-degree hollow cone spray pattern and 1.35 gallon per hour (GPH) flow rate, this nozzle is commonly used in pressure washer burners, commercial heating systems, and industrial oil-fired equipment designed for hollow cone combustion.
Key Features & Benefits
- Genuine Delavan hollow cone burner nozzle
- 1.35 GPH fuel flow rate
- 60-degree spray angle
- Hollow cone spray pattern
- Designed for burners with hollow cone air patterns
- Excellent ignition performance
- Stable flame characteristics
- Low-noise combustion operation
- Precision-machined internal components
- Reduced distributor size helps minimize plugging
- Aerodynamic body design improves fuel flow
- Rolled threads reduce burrs and contamination
- Integrated sintered filter for enhanced protection
- Individually tested and cleaned before shipment
- Manufactured to ISO 9001 quality standards
Technical Specifications
Part Number: 1316
Manufacturer: Delavan
Series: Type A Hollow Cone
Flow Rate: 1.35 GPH
Spray Angle: 60°
Spray Pattern: Hollow Cone
Color Code: Red
Fuel Type: Fuel Oil
Filter Type: Sintered Filter
Certification: ISO 9001
Hollow Cone Spray Pattern Benefits
The Type A hollow cone spray pattern distributes fuel primarily around the outer edge of the spray cone, providing:
- Fast and dependable ignition
- Consistent flame stability
- Reduced combustion noise
- Improved fuel atomization
- Enhanced combustion efficiency
- Reliable burner performance
Typical Applications
- Hot water pressure washer burners
- Oil-fired burner systems
- Commercial heating equipment
- Industrial heating applications
- Fuel oil combustion systems
- Boiler burners
- Mobile wash systems
- Asphalt maintenance equipment
- Agricultural heating systems
- Burner nozzle replacement projects
Design Features
Precision Spray Performance
Advanced manufacturing processes provide accurate spray angles and uniform fuel distribution for dependable burner operation.
Reduced Plugging Risk
The compact distributor design with shorter tangential slots helps reduce the likelihood of blockage from fuel contaminants.
Integrated Fuel Filtration
A sintered filter provides protection against debris and contamination before fuel reaches the nozzle orifice.
Durable Construction
Rolled threads help eliminate chips and burrs while improving durability and installation reliability.
Common Signs of Nozzle Wear
Replace the burner nozzle if you experience:
- Hard starting or ignition issues
- Excessive smoke production
- Poor flame quality
- Reduced heating efficiency
- Increased fuel consumption
- Unstable combustion
- Frequent burner maintenance issues
- Visible contamination or blockage
Installation Notes
- Disconnect power and fuel supply before servicing.
- Remove the existing burner nozzle carefully.
- Inspect fuel lines and filters for contamination.
- Install the new nozzle without damaging the filter or orifice.
- Confirm spray angle and flow rate match burner specifications.
- Restart the burner and verify proper flame characteristics.
- Adjust burner settings as recommended by the equipment manufacturer.
Maintenance Recommendations
- Replace nozzles at scheduled service intervals.
- Maintain clean fuel filters.
- Use clean, water-free fuel supplies.
- Inspect burner settings regularly.
- Monitor combustion performance for signs of wear.
- Replace damaged or contaminated nozzles immediately.
