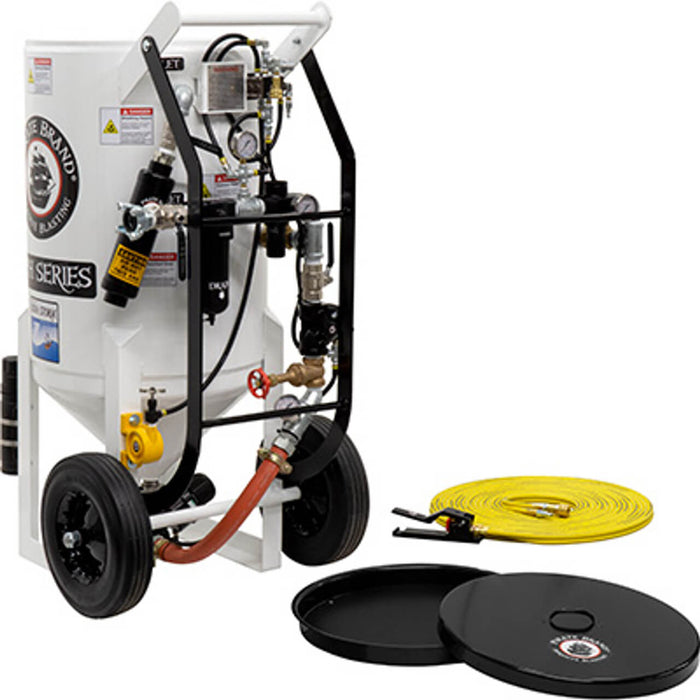

6.5 cu ft Portable Soda Storm Pneumatic Blast Pot – Industrial Soda Blasting System

Part Number: 999-8040-160PB
Weight: 633.93 LBS
Category: Abrasive Blast Pot / Soda Blasting Machine

Configuration:

• Portable Blast Pot – Soda Storm Pneumatic System

• 6.5 CU. FT. (185 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Includes:

  • APV II Metering Valve with Multi-Ported Stainless-Steel Sleeve

  • Auto Air Valve

  • 1-1/4″ Galvanized Piping with Moisture Separator

  • Lid, Fine Mesh Screen & Loading Skid/Valve Guard

  • 55′ Twin Line Hose Assembly

  • Control Handle #2

  • 5-Year / 10-Year Warranty*

• Includes 100 lbs of Free Natrium Soda Blast 260 Media

Compatibility:

Operational Notes:

• Soda Storm™ blasters operate efficiently throughout the regulator range down to 5 PSI.

• Do not exceed 125 PSI when using blast hose with nylon nozzle holders or couplings.

• Not for use in all cabinet applications — requires a large dust collector (consult before purchase).

Features & Benefits – SPH Soda Storm Pneumatic

6.5 CU. FT. Capacity (185 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption

• Decreases moisture issues

• Provides smoother start and stop operation

Moisture Separator with Filter Element

• Filters out contaminants down to 50 microns

1-1/4″ Galvanized Piping

• Provides corrosion resistance and extended service life

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Heavy-Duty Nipple

• Withstands abrasive wear for longer operational life

Bolt Clamps on Pusher Line

• Simplifies field maintenance and hose repair

Normally Closed Valves (APV II)

• Quadruple plunger seal eliminates abrasive carry-over and seal jamming

• Multi-ported sleeve allows up to four fixed orifices for precise flow control (lb/min)

• Solid machined Tungsten Carbide plunger & sleeve for high wear resistance

• 1″ cleanout ball valve for quick abrasive switching or system flushing

• Auto Air Valve ensures fast starts and stops

• Heavy-duty filtered control valve reduces stopping time when control handle is released

Sanitary Cleanout Coupling

• Provides access to remove blockages or bridging near metering ports

Abrasive Flow Assist Vibrator with Controls

Pressure Regulator (10–150 PSIG) with Liquid-Filled Gauge

Differential Pressure Gate Valve with Liquid-Filled Gauge

• Allows for precise control of abrasive flow rate (lb/min)

Blow-Down Muffler

• Reduces unwanted noise during depressurization

Soda Storm Standard Accessories

• Lid prevents rainwater and contaminants from entering the pot

• Fine mesh screen removes bag debris or contaminants from abrasive

• Valve guard protects gauges and valves during transport
