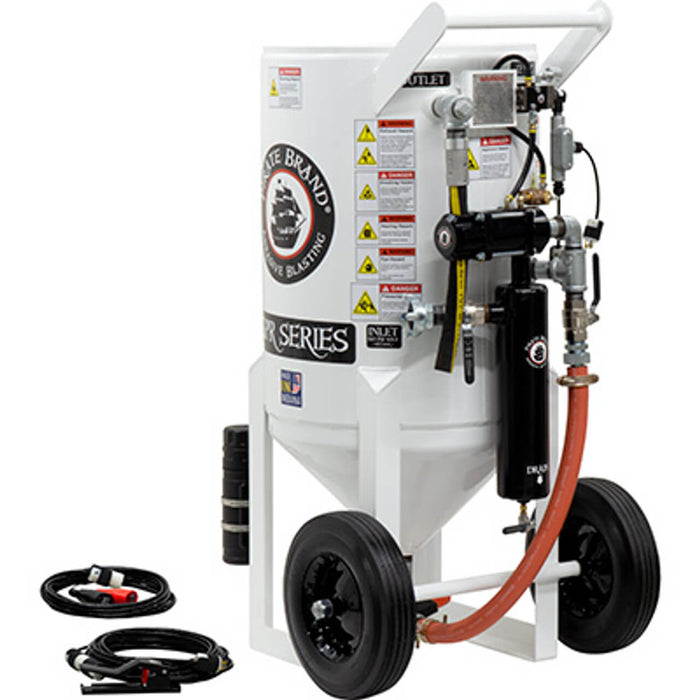

6.5 cu ft Portable Electric 12VDC Sandblast Pot – Pressure Release System with MPV/Combination Valves, 1-1/4″ Piping with Moisture Separator, 55′ Control Cord & 25′ Power Cord

Part Number: 888-0532-12711PB
Weight: 482.37 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty

Overview

The 6.5 cu ft Portable Electric 12VDC Sandblast Pot combines powerful performance with efficient electric control operation.
Engineered for professional contractors and industrial users, this system features a Pressure Release System that automatically depressurizes the vessel when blasting stops, reducing wear and downtime.
Its MPV/Combination Valve design allows seamless control of air and abrasive flow, while the Electric 12VDC control system enhances responsiveness—especially over extended hose lengths.

This unit is ideal for environments where pneumatic control lines are impractical, or when additional responsiveness and cold-weather reliability are required.

OEM Compatibility

When using steel abrasives, Electric Control Handle #2 (888-2263-401PB) and sealed connector(s) (PB-31131) are required.

Key Features & Benefits

A. Pressure Vessel

• 6.5 cu ft (185 L) capacity rated for 150 PSI (10.3 BAR)

• Manufactured to A.S.M.E. Section VIII Division 1 standards

• C.R.N. Certified for all provinces

B. Pressure Release System

• Automatically blows down the vessel when the control handle is released

• Simplified design for low maintenance and field serviceability

• Ideal for contractors requiring quick troubleshooting in the field

C. Electric 12VDC Controls

• Enhances start/stop response—especially when using over 100′ of blast hose

• Reduces freeze-up issues during cold-weather operations

• Improves safety and operator control precision

• Heavy-duty filtered control valve reduces stopping time after handle release

D. Heavy-Duty Moisture Separator

• Ensures clean, dry air for consistent abrasive performance

E. 1-1/4″ Galvanized Piping

• Provides corrosion resistance and long-term reliability

F. Full-Port Ball Valves

• Allows unrestricted airflow and easy maintenance

G. Schedule 80 Heavy-Duty Nipples

• Built to withstand high wear from abrasive media

H. Bolt Clamps on Pusher Line

• Simplifies field repairs and maintenance access

I. MPV/Combination Valve System

• Dual-function valve stops blasting and relieves pressure when released

• Manual Plunger Valve (MPV) provides precise abrasive flow adjustment

• Relieving control handle reduces air consumption and shortens stopping time

Specifications

Applications

• Industrial and commercial blasting operations

• Marine and shipyard maintenance

• Heavy equipment, pipeline, and tank restoration

• Concrete surface cleaning and coating removal
