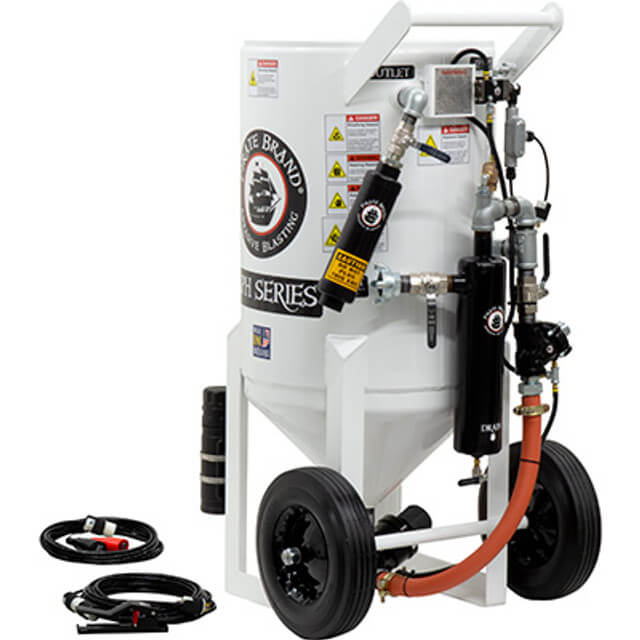

6.5 cu ft Portable Electric 12VDC Sandblast Pot – Pressure Hold System with APV II Valve (Tungsten Carbide Sleeve) & Auto Air Valve, 1-1/4″ Piping with Moisture Separator, Includes 55′ Control Cord & 25′ Power Cord
Part Number: 888-0532-33701PB
Weight: 490.89 lbs
Warranty: 5-Year Limited / 10-Year Vessel Warranty
Overview
The 6.5 cu ft Portable Electric 12 VDC Sandblast Pot is a high-performance, heavy-duty abrasive blasting system built for industrial contractors requiring precision control and long service life.
Equipped with an APV II Tungsten Carbide Metering Valve and Electric 12 VDC control system, it combines premium wear resistance with superior start/stop responsiveness—even when running long blast hoses or operating in cold-weather environments.
Its Pressure Hold System ensures consistent blasting pressure, reduced abrasive consumption, and smoother operation across demanding job sites.
OEM Compatibility
| OEM Manufacturer | Part # |
|---|---|
| SCHMIDT MANUFACTURING / U.S. FILTER / AXXIOM MANUFACTURING | 0532-337-01 |
⚙️ When using steel abrasives, Electric Control Handle #2 (888-2263-401PB) and sealed connector(s) (PB-31131) are required.
Key Features & Benefits
A. Pressure Vessel
-
6.5 cu ft (185 L) capacity rated for 150 PSI (10.3 BAR)
-
Fabricated to A.S.M.E. Section VIII Division 1 standards
-
C.R.N. certified for all provinces
B. Pressure Hold System
-
Minimizes abrasive consumption and reduces air loss
-
Enables smoother starts and stops with consistent blast pressure
-
Helps prevent moisture accumulation in the air stream
C. Electric 12 VDC Controls
-
Provides instant response for blast start/stop cycles
-
Boosts signal speed for systems running over 100′ of hose
-
Reduces freezing issues during cold-weather operation
-
Heavy-duty filtered control valve minimizes stopping delay
D. Heavy-Duty Moisture Separator
-
Maintains dry air flow to improve media flow and prevent clogs
E. 1-1/4″ Galvanized Piping
-
Corrosion-resistant for long-term durability
F. Full-Port Ball Valves
-
Provides maximum air flow with minimal pressure loss
G. Schedule 80 Heavy-Duty Nipples
-
Built to endure abrasive wear for longer operating life
H. Field-Serviceable Design
-
Bolt clamps on pusher line enable fast, easy repairs on site
I. APV II Tungsten Carbide Metering Valve System
-
Quadruple plunger seal design eliminates air and abrasive carry-over
-
Prevents valve jamming in low-pressure and steel abrasive applications
-
Solid machined Tungsten Carbide plunger & sleeve provide superior wear resistance and tight tolerances
-
1″ NPT cleanout port allows easy removal of blockages and drainage without valve removal
-
Auto Air Valve enables rapid cycling for smoother performance
-
Relieving Control Handle reduces air consumption and stopping time
Specifications
| Specification | Detail |
|---|---|
| Model | 888-0532-33701PB |
| Vessel Capacity | 6.5 cu ft (185 L) |
| Working Pressure | 150 PSI (10.3 BAR) |
| System Type | Electric 12 VDC Pressure Hold |
| Valve Type | APV II (Tungsten Carbide Sleeve) |
| Piping Size | 1-1/4″ Galvanized |
| Moisture Separator | Included |
| Control Cables | 55′ Control Cord with Handle & 25′ Power Cord |
| Certifications | A.S.M.E. Section VIII / C.R.N. (All Provinces) |
| Weight | 490.89 lbs |
| Warranty | 5-Year Limited / 10-Year Vessel Warranty |
Applications
-
Industrial surface preparation and coating removal
-
Marine and shipyard maintenance
-
Pipeline and tank rehabilitation
-
Structural steel and heavy equipment restoration
