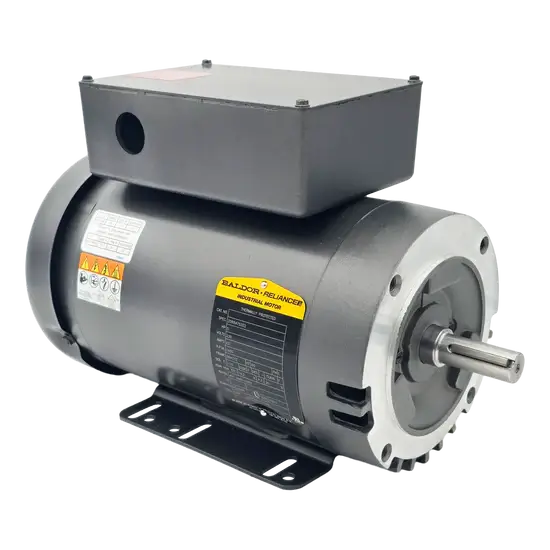

5 HP 3450 RPM C-Face Electric Motor 3/4" Shaft ODP 230V – Baldor Spec OEM Replacement Part
Part Number: 3329
Category: Pressure Washer Parts → Electric Motors → C-Face Motors
Type: 5 HP C-Face Electric Motor
The 5 HP 3450 RPM C-Face Electric Motor (Part #3329) is a heavy-duty OEM replacement motor specifically manufactured for Barens, Inc. and engineered to deliver reliable performance in pressure washers, steam cleaners, and industrial cleaning equipment. Designed to Baldor specifications, this motor features a 5 horsepower output, 3450 RPM operating speed, and a 56C C-Face frame for direct-drive and coupled-mount applications.
Key Features & Benefits
- Genuine OEM replacement electric motor
- 5 horsepower output
- 3450 RPM operating speed
- Manufactured to Baldor specifications
- Specifically manufactured for Barens, Inc.
- 56C C-Face mounting frame
- 3/4" shaft diameter
- Open Drip Proof (ODP) enclosure
- Ball bearing construction
- Manual thermal overload protection
- 200°C copper windings
- UL recognized component approval
- CSA recognized component approval
- Designed for direct-drive and coupled-mount applications
- Reliable commercial and industrial performance
Technical Specifications
Part Number: 3329
Product Type: Electric Motor
Motor Type: Baldor Spec Motor
Horsepower: 5 HP
Speed: 3450 RPM
Voltage: 230V
Frequency: 60 Hz
Phase: Single Phase
Frame Size: 56C
Shaft Diameter: 3/4"
Enclosure Type: ODP (Open Drip Proof)
Bearing Type: Ball Bearing
Thermal Protection: Manual Thermal Overload
Windings: 200°C Copper Windings
Mounting Style: C-Face
Certification: UL & CSA Recognized Components
OEM Replacement: Yes
Common Applications
- Pressure washers
- Hot water pressure washers
- Cold water pressure washers
- Steam cleaners
- Portable cleaning systems
- Stationary cleaning systems
- Direct-drive pump applications
- Coupled-drive pump applications
- Industrial wash systems
- Commercial cleaning equipment
- Water transfer equipment
Performance Benefits
- Delivers reliable 5 HP output
- High-speed 3450 RPM operation
- Durable ball bearing construction
- Supports continuous-duty applications
- Thermal overload protection helps prevent motor damage
- Efficient copper winding design
- Reliable starting and operating characteristics
- Compatible with direct-drive and coupled systems
- Long service life in demanding environments
Signs Replacement May Be Needed
Replace the motor if you notice:
- Failure to start
- Excessive vibration or noise
- Overheating during operation
- Reduced power output
- Bearing wear or shaft movement
- Thermal overload trips repeatedly
- Electrical winding damage
- Inconsistent operating speed
Installation Notes
- Disconnect electrical power before servicing.
- Verify motor voltage and phase compatibility.
- Inspect pump and coupling alignment.
- Mount securely using the 56C C-Face mounting pattern.
- Ensure proper shaft alignment before operation.
- Verify electrical connections comply with local codes.
- Test operation and monitor startup performance.
Important: Installation should be performed by qualified personnel. Always verify frame size, shaft dimensions, voltage requirements, and mounting compatibility before replacing an existing motor.
Maintenance Recommendations
- Keep motor ventilation openings clear.
- Inspect wiring and electrical connections regularly.
- Monitor operating temperature.
- Check bearings periodically for wear or noise.
- Verify shaft alignment during routine maintenance.
- Keep motor free from excessive moisture and debris.
- Test thermal overload protection during scheduled service intervals.
