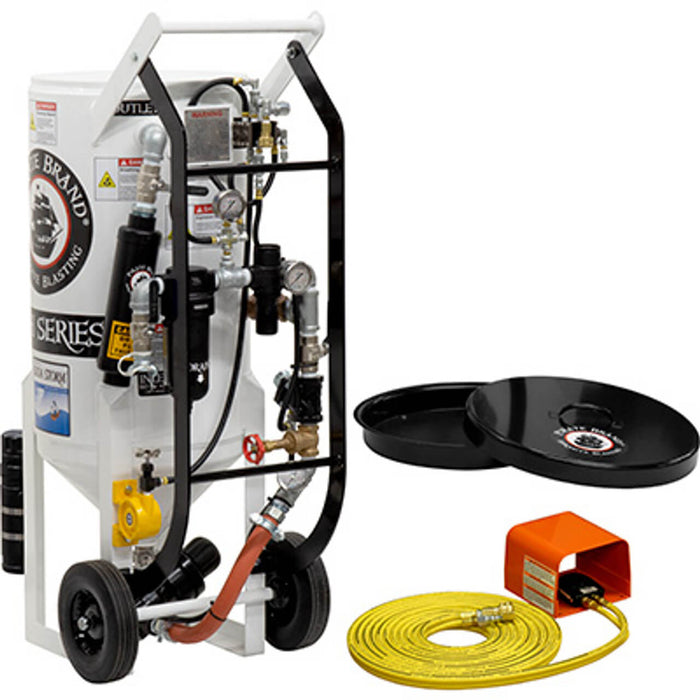

3.5 cu ft Cabinet Series Soda Storm Pneumatic Blast Pot – APV II Metering Valve, 1″ Piping with Moisture Separator

Part Number: 999-8040-030PB-CAB
Weight: 458.00 LBS
Category: Abrasive Blast Pot / Soda Blasting Machine

Configuration:

• Cabinet Series Soda Storm Pneumatic System

• 3.5 CU. FT. (100 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Includes:

  • APV II Metering Valve with Multi-Ported Stainless-Steel Sleeve

  • Auto Air Valve

  • 1″ Galvanized Piping with Moisture Separator

  • Lid, Fine Mesh Screen & Loading Skid/Valve Guard

  • 25′ Twin Line Hose Assembly & Foot Pedal

  • 5-Year / 10-Year Warranty*

• Includes 100 lbs of Free Natrium Soda Blast 260 Media

Operational Notes:

• Soda Storm™ blasters operate effectively throughout the regulator range down to 5 PSI.

• Do not exceed 125 PSI when using blast hose with nylon nozzle holders or couplings.

• Not for use in all cabinet applications — requires a large dust collector (consult before purchase).

Features & Benefits – SPH Soda Storm Pneumatic (Cabinet Series)

3.5 CU. FT. Capacity (100 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption

• Minimizes moisture-related issues

• Ensures smooth start and stop operation

Moisture Separator with Filter Element

• Removes contaminants down to 50 microns

1″ Galvanized Piping

• Corrosion-resistant construction for extended durability

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Heavy-Duty Nipple

• Engineered to resist abrasive wear and extend service life

Bolt Clamps on Pusher Line

• Simplifies field maintenance and replacement

Normally Closed Valves (APV II)

• Quadruple plunger seal prevents abrasive carry-over and seal jamming

• Multi-ported sleeve supports up to 4 fixed orifices for precise flow rate control (lb/min)

• Solid Tungsten Carbide plunger & sleeve deliver superior wear resistance and tight tolerances

• 1″ cleanout ball valve allows fast emptying or abrasive changes

• Auto Air Valve enables quick starts and stops

• Filtered control valve minimizes stopping delay when foot pedal is released

Sanitary Cleanout Coupling

• Provides quick access to clear any bridged abrasive flow paths

Abrasive Flow Assist Vibrator with Controls

Pressure Regulator (10–150 PSIG) with Liquid-Filled Gauge

Differential Pressure Gate Valve with Liquid-Filled Gauge

• Provides precise control over abrasive flow rate (lb/min)

Blow-Down Muffler

• Reduces noise during depressurization and shutdown

Soda Storm Standard Accessories

• Lid protects vessel interior from water and debris contamination

• Fine mesh screen prevents contaminants such as paper or bag residue from entering the vessel

• Valve guard shields gauges and valves during transport or handling
