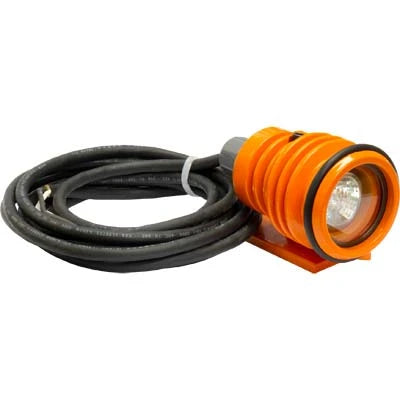

12V 20W Halogen Blast Light – Complete Assembly with 10-Foot Cord, 1750 CBCP

Part Number: LITE100
Category: Abrasive Blasting Equipment Parts & Blast Lighting
Type: 12V 20W Halogen Blast Light – Complete Assembly with 10-Foot Cord

The Pirate Brand LITE100 12V 20W Halogen Blast Light is a complete low-voltage lighting assembly designed to provide focused illumination during abrasive blasting, surface preparation, and related industrial blasting operations.

Product Specifications

• Part Number: LITE100
• Brand: Pirate Brand
• Product Type: Complete Halogen Blast Light
• Light Type: Abrasive Blasting / Industrial Work Light
• Operating Voltage: 12V
• Lamp Technology: Halogen
• Lamp Wattage: 20 Watts
• Current Draw: Approximately 1.66666 Amps
• Light Output Rating: 1750 CBCP
• CBCP Definition: Center Beam Candle Power
• Cord Length: 10 Feet
• Configuration: Complete Blast Light Assembly
• System Type: 12V No-Air Blast Light
• Primary Application: Abrasive Blasting / Surface Preparation
• Lighting Style: Focused / Directional Beam
• Alternate Description: Abrasive Blast Light / Sandblasting Light / Blast Pot Light / 12V Halogen Work Light / No-Air Blast Light / Surface Preparation Light
• Replacement Type: Complete Light Assembly
• Condition: New
• Quantity: 1 Complete Blast Light Assembly

Features & Benefits

• Complete Pirate Brand LITE100 blast light assembly
• Designed specifically for abrasive blasting and surface-preparation applications
• Low-voltage 12V operation
• 20-watt halogen lamp
• Approximately 1.66666-amp current draw
• Rated at 1750 CBCP Center Beam Candle Power
• Includes a 10-foot electrical cord
• Focused directional beam helps illuminate the active blasting area
• Helps improve visibility of surfaces during abrasive blasting
• Useful for monitoring coating removal and surface-cleaning progress
• Helps identify areas requiring additional blasting
• No-air design does not require a separate compressed-air supply for light cooling
• Compact configuration for applications with a compatible 12V power source
• Lower electrical load than the 35W LITE200 configuration
• Designed for industrial abrasive blasting environments
• Complete assembly minimizes the need to source individual lighting components separately

Blast Light Function & Importance

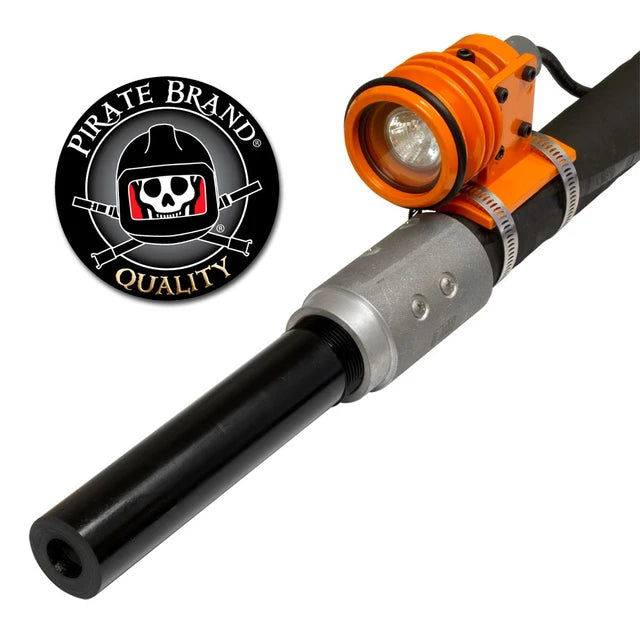

The LITE100 12V Blast Light provides concentrated illumination near the work surface during abrasive blasting operations.

A simplified operating arrangement can be represented as:

Compatible 12V Power Source → 10-Foot Cord → LITE100 Blast Light → 20W Halogen Lamp → 1750 CBCP Focused Beam

Abrasive blasting can create challenging visibility conditions due to airborne abrasive, dust, shadows, confined workspaces, surface debris, and limited ambient lighting. A dedicated blast light provides a focused light source closer to the active work area.

Proper blast-area illumination can help operators:

• View the surface being blasted
• Monitor cleaning progress
• Identify remaining coatings or contamination
• Evaluate surface coverage
• Locate areas requiring additional blasting
• Improve visibility in enclosed or poorly illuminated spaces
• Maintain a more consistent view of the active work area

The 1750 CBCP specification represents Center Beam Candle Power, which measures the peak luminous intensity at the center of the directional beam.

CBCP should not be confused with lumens. Lumens measure total light output, while CBCP describes the intensity of a concentrated beam in a particular direction. Therefore, the 1750 CBCP rating does not mean that the lamp produces 1750 lumens.

Inspection, Service & Maintenance

Before installing, inspecting, or servicing the LITE100 12V Halogen Blast Light, disconnect the applicable electrical power source and shut down associated blasting equipment according to the manufacturer's procedures.

Periodically inspect the assembly for:

• Damaged electrical cord insulation
• Cuts, abrasions, or crushed sections of cord
• Loose electrical connections
• Cracked or damaged lens components
• Worn strain-relief components
• Halogen lamp failure
• Loose mounting components
• Abrasive accumulation around the housing or lens
• Physical impact damage
• Damaged seals or retaining components
• Evidence of excessive heat or electrical damage

When servicing the light, use replacement components with the correct 12V electrical specification and 20W lamp rating for the LITE100 configuration.

Do not substitute a higher-wattage lamp simply to increase light output. A higher-wattage bulb can increase electrical current draw and heat generation beyond the intended configuration of the light assembly.

After service, verify that the lamp, lens, seals, retaining components, cord, and electrical connections are properly installed before returning the light to operation.

Application & Important Notes

• This listing is for the Pirate Brand LITE100 complete 12V 20W Halogen Blast Light with 10-foot cord.
• The light requires a compatible 12V electrical power source.
• Rated lamp power is 20 watts.
• Approximate current draw is 1.66666 amps at 12V.
• Light intensity is rated at 1750 CBCP (Center Beam Candle Power).
• The supplied cord length is 10 feet.
• This is a no-air blast light configuration and does not require a dedicated compressed-air supply for light cooling.
• Do not confuse the LITE100 20W / 1750 CBCP configuration with the higher-output LITE200 35W / 2400 CBCP configuration.
• A 120VAC-to-12VDC converter is not specified as part of this standard 10-foot-cord LITE100 configuration.
• If the available power supply is 120VAC, use only the appropriate manufacturer-specified converter/configuration rather than connecting the 12V light directly to line voltage.
• Verify that the available 12V power source provides sufficient current capacity for the light.
• Use only the specified replacement lamp or an approved equivalent with the correct voltage, wattage, physical configuration, and electrical characteristics.
• Do not install a higher-wattage lamp, modify the wiring, or alter the electrical configuration to increase light output.
• 1750 CBCP is a directional beam-intensity measurement and is not equivalent to 1750 lumens.
• Inspect the electrical cord before each use, particularly when the assembly is operated in abrasive environments where cables may be exposed to abrasion, impact, or crushing.
• Follow all applicable electrical, grounding, abrasive blasting, PPE, and equipment safety procedures for the specific work environment.
• Additional sealed strain-relief provisions may be required when operating blast-light equipment with electrically conductive abrasive media, depending on the equipment configuration and manufacturer's requirements.
• This listing is for one LITE100 complete 12V 20W Halogen Blast Light Assembly with 10-foot cord unless otherwise specified. Power converters, replacement lamps, lenses, sockets, strain-relief components, and other accessories are sold separately unless explicitly included.
