120VAC-to-12VDC 35W Halogen Blast Light – Complete Assembly with 75-Foot Cord, 2400 CBCP

Part Number: LITE200-075
Category: Abrasive Blasting Equipment Parts & Blast Lighting
Type: 120VAC-to-12VDC 35W Halogen Blast Light – Complete Assembly with 75-Foot Cord

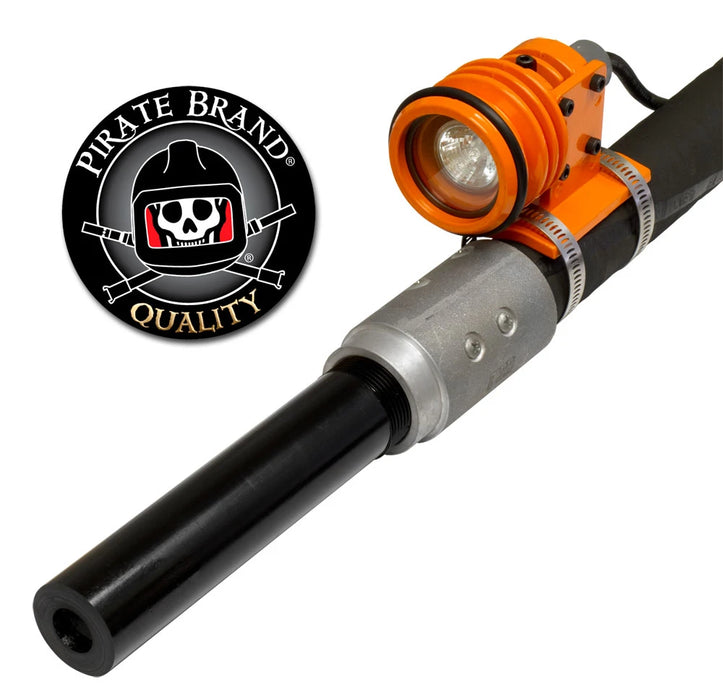

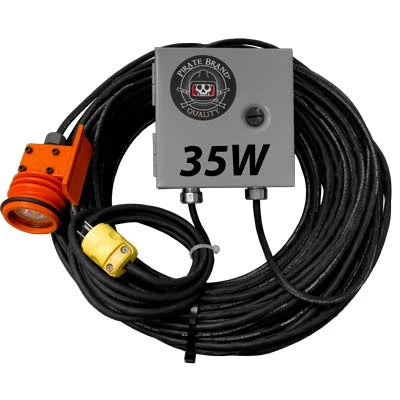

The Pirate Brand LITE200-075 Halogen Blast Light is a complete industrial lighting assembly designed to provide focused, high-intensity illumination during abrasive blasting, surface preparation, and related industrial blasting operations. This configuration combines a 35-watt halogen blast light with a 120VAC-to-12VDC converter, allowing the low-voltage light to operate from a compatible 120VAC electrical power source.

Product Specifications

• Part Number: LITE200-075
• Brand: Pirate Brand
• Product Type: Complete Halogen Blast Light with Voltage Converter
• Light Type: Abrasive Blasting / Industrial Work Light
• Input Power: 120VAC
• Light Operating Voltage: 12VDC
• Voltage Conversion: 120VAC-to-12VDC Converter Included
• Lamp Technology: Halogen
• Lamp Wattage: 35 Watts
• Current Draw at 12V: Approximately 2.91666 Amps
• Light Output Rating: 2400 CBCP
• CBCP Definition: Center Beam Candle Power
• Cord Length: 75 Feet
• Configuration: Complete Blast Light Assembly with Converter
• System Type: 12V No-Air Blast Light with 120VAC Converter
• Primary Application: Abrasive Blasting / Surface Preparation
• Lighting Style: Focused / Directional Beam
• Alternate Description: Abrasive Blast Light / Sandblasting Light / Blast Pot Light / 120V Blast Light / 12V Halogen Blast Light / No-Air Blast Light / Surface Preparation Light
• Replacement Bulb Reference: LITE290284 / LITE284
• Replacement Type: Complete Light Assembly
• Condition: New
• Quantity: 1 Complete Blast Light Assembly

Features & Benefits

• Complete Pirate Brand LITE200-075 blast light assembly
• Includes 120VAC-to-12VDC power conversion
• Allows the 12V blast light to operate from a compatible 120VAC power source
• Powerful 35-watt halogen lamp
• Approximately 2.91666-amp current draw at 12V
• Rated at 2400 CBCP Center Beam Candle Power
• Includes a 75-foot cord for extended positioning flexibility
• Focused directional beam helps illuminate the active blasting surface
• Helps improve visibility during abrasive blasting and surface preparation
• Useful for monitoring coating removal and surface-cleaning progress
• Helps operators identify areas requiring additional blasting
• Low-voltage 12VDC operation at the blast light
• No-air configuration does not require a dedicated compressed-air cooling supply
• Higher light intensity than the 20W / 1750 CBCP LITE100 configuration
• Designed for demanding abrasive blasting environments
• Replaceable 35W / 2400 CBCP halogen bulb
• Complete configuration combines the blast light, extended cord, and voltage-conversion arrangement

Blast Light Function & Importance

The LITE200-075 Blast Light combines a compatible 120VAC power source with low-voltage, focused illumination at the blasting work area.

A simplified operating arrangement can be represented as:

120VAC Power Source → 120VAC-to-12VDC Converter → 75-Foot Cord → LITE200-075 Blast Light → 35W Halogen Lamp → 2400 CBCP Focused Beam

During abrasive blasting, visibility can be reduced by airborne abrasive, dust, shadows, enclosed work areas, surface debris, and limited ambient lighting. Positioning a dedicated blast light near the work area provides concentrated illumination that can help the operator maintain a clearer view of the surface.

Proper blast-area illumination can help with:

• Viewing the active blasting surface
• Monitoring coating and contamination removal
• Identifying areas requiring additional blasting
• Evaluating surface-cleaning progress
• Improving visibility in enclosed or poorly illuminated areas
• Maintaining focused illumination near the blasting operation
• Inspecting surface coverage during preparation work

The 2400 CBCP specification represents Center Beam Candle Power, a measurement of peak luminous intensity at the brightest portion of a directional beam.

CBCP should not be confused with lumens. Lumens measure total radiated light output, while candlepower is useful for describing the intensity of directional lighting. There is no simple direct conversion between the two measurements.

Inspection, Service & Maintenance

Before installing, inspecting, or servicing the LITE200-075 Halogen Blast Light, disconnect the assembly from its electrical power source and shut down associated blasting equipment according to applicable manufacturer procedures.

Periodically inspect the complete assembly for:

• Cuts, abrasion, or damage to the 75-foot cord
• Crushed or excessively bent cord sections
• Loose electrical connections
• Damaged plugs or connectors
• Converter damage
• Cracked or damaged lens components
• Worn or damaged strain-relief components
• Halogen lamp failure
• Loose mounting components
• Abrasive accumulation around the housing or lens
• Physical impact damage
• Damaged seals or retaining components
• Evidence of overheating or electrical deterioration

The LITE200 blast light family uses serviceable components including the LITE290284 / LITE284 35W replacement bulb, LITE102 Pyrex lens with O-ring, LITE101 outer lens retaining clip, LITE105 lamp socket, and LITE106 blast light body.

When replacing the lamp, use the specified 35W / 2400 CBCP replacement bulb or an approved equivalent with the correct electrical characteristics. Do not install a higher-wattage lamp simply to increase light output.

After service, verify that the lamp, lens, seals, retaining components, cord, converter, and electrical connections are properly secured before returning the assembly to operation.

Application & Important Notes

• This listing is for the Pirate Brand LITE200-075 complete 120VAC-to-12VDC 35W Halogen Blast Light Assembly with 75-foot cord.
• LITE200-075 includes the applicable 120VAC-to-12VDC converter.
• Input power is 120VAC, while the blast light operates at 12VDC.
• Rated lamp power is 35 watts.
• Approximate lamp current draw at 12V is 2.91666 amps.
• Light intensity is rated at 2400 CBCP (Center Beam Candle Power).
• The assembly uses a 75-foot cord configuration.
• This model is part of Pirate Brand's LITE100 / LITE200 12V no-air blast light family.
• Do not confuse LITE200-075 with the standard LITE200, which is a 12V 35W / 2400 CBCP configuration supplied with a 10-foot cord.
• Do not confuse LITE200-075 with LITE200-125 or LITE200-150, which use the same 35W / 2400 CBCP light configuration but feature 125-foot and 150-foot cord configurations.
• Do not confuse the 35W / 2400 CBCP LITE200 series with the lower-output 20W / 1750 CBCP LITE100 series.
• Use LITE290284 / LITE284 as the applicable 35W / 2400 CBCP replacement bulb reference.
• 2400 CBCP is a center-beam intensity measurement and is not equivalent to 2400 lumens.
• Verify that the available electrical source meets the manufacturer's requirements before connecting the assembly.
• Do not install a higher-wattage lamp, modify the converter, alter the wiring, or otherwise change the specified electrical configuration.
• Inspect the full length of the 75-foot cord before use, particularly in abrasive environments where electrical cables can be exposed to abrasion, crushing, impact, and sharp edges.
• When used with electrically conductive abrasives such as steel shot or steel grit, Pirate Brand specifies PB-31131 1/2-inch 3-part sealed control cord strain relief for this blast light configuration.
• Follow all applicable electrical, grounding, abrasive blasting, PPE, and equipment safety procedures for the specific work environment.
• This listing is for one LITE200-075 complete blast light assembly with 120VAC-to-12VDC converter and 75-foot cord unless otherwise specified. Replacement bulbs, lenses, sockets, strain-relief components, and other service parts are sold separately unless explicitly included.
