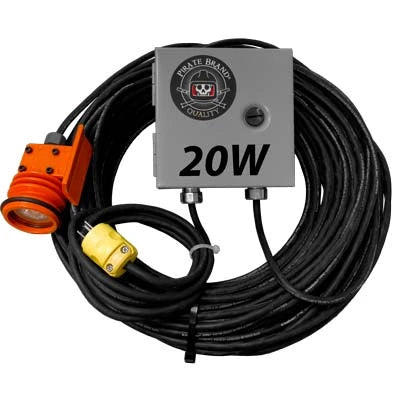

120VAC-to-12VDC 20W Halogen Blast Light – Complete Assembly with 125-Foot Cord, 1750 CBCP

Part Number: LITE100-125
Category: Abrasive Blasting Equipment Parts & Blast Lighting
Type: 120VAC-to-12VDC 20W Halogen Blast Light – Complete Assembly with 125-Foot Cord

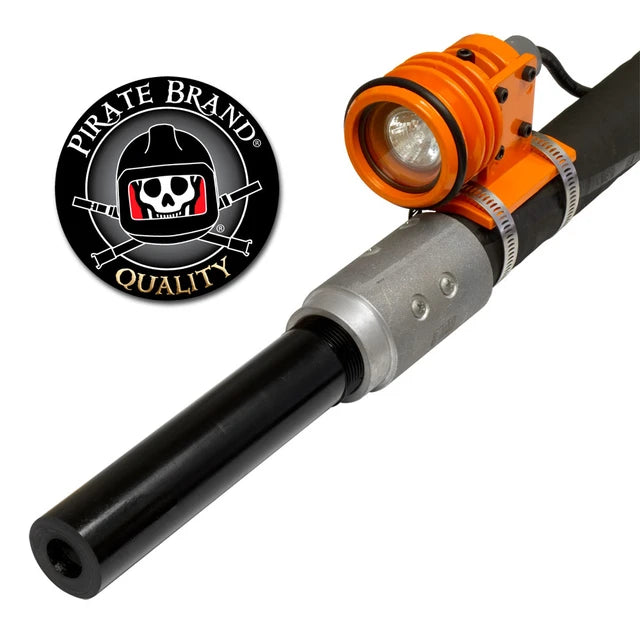

The Pirate Brand LITE100-125 Halogen Blast Light is a complete industrial lighting assembly designed to provide focused illumination during abrasive blasting, surface preparation, and related industrial blasting operations. This configuration combines a 20-watt halogen blast light with a 120VAC-to-12VDC converter, allowing the low-voltage blast light to operate from a compatible 120VAC electrical power source.

Product Specifications

• Part Number: LITE100-125
• Brand: Pirate Brand
• Product Type: Complete Halogen Blast Light with Voltage Converter
• Light Type: Abrasive Blasting / Industrial Work Light
• Input Power: 120VAC
• Light Operating Voltage: 12VDC
• Voltage Conversion: 120VAC-to-12VDC Converter Included
• Lamp Technology: Halogen
• Lamp Wattage: 20 Watts
• Current Draw at 12V: Approximately 1.66666 Amps
• Light Output Rating: 1750 CBCP
• CBCP Definition: Center Beam Candle Power
• Cord Length: 125 Feet
• Configuration: Complete Blast Light Assembly with Converter
• System Type: 12V No-Air Blast Light with 120VAC Converter
• Primary Application: Abrasive Blasting / Surface Preparation
• Lighting Style: Focused / Directional Beam
• Alternate Description: Abrasive Blast Light / Sandblasting Light / Blast Pot Light / 120V Blast Light / 12V Halogen Blast Light / No-Air Blast Light / Surface Preparation Light
• Replacement Type: Complete Light Assembly
• Condition: New
• Quantity: 1 Complete Blast Light Assembly

Features & Benefits

• Complete Pirate Brand LITE100-125 blast light assembly
• Includes the applicable 120VAC-to-12VDC converter
• Allows a low-voltage 12V blast light to operate from a compatible 120VAC power source
• 20-watt halogen lamp
• Approximately 1.66666-amp current draw at 12V
• Rated at 1750 CBCP Center Beam Candle Power
• Extended 125-foot cord provides substantial working reach
• Focused directional beam helps illuminate the active blasting area
• Helps improve work-surface visibility during abrasive blasting
• Useful for monitoring coating removal and surface-cleaning progress
• Helps operators identify areas requiring additional blasting
• Low-voltage 12VDC operation at the blast light
• No-air design does not require a dedicated compressed-air supply for light cooling
• Designed for abrasive blasting and industrial surface-preparation environments
• Lower lamp wattage and current draw than the 35W / 2400 CBCP LITE200 configuration
• Complete configuration provides the light, extended cord, and appropriate voltage-conversion arrangement as one assembly

Blast Light Function & Importance

The LITE100-125 Blast Light combines a standard 120VAC power connection with low-voltage illumination at the blasting work area.

A simplified operating arrangement can be represented as:

120VAC Power Source → 120VAC-to-12VDC Converter → 125-Foot Cord → LITE100-125 Blast Light → 20W Halogen Lamp → 1750 CBCP Focused Beam

The converter allows the light itself to operate at its specified low voltage while providing a practical connection to an appropriate 120VAC electrical source.

During abrasive blasting, visibility can be reduced by airborne abrasive, dust, shadows, confined spaces, surface debris, and limited ambient lighting. A dedicated blast light provides concentrated illumination closer to the surface being prepared.

Proper blast-area illumination can help operators:

• View the active blasting surface
• Monitor cleaning and coating-removal progress
• Identify remaining surface contamination
• Locate areas requiring additional blasting
• Evaluate blasting coverage
• Improve visibility in enclosed or poorly illuminated areas
• Maintain a focused light source near the blasting operation

The 1750 CBCP specification represents Center Beam Candle Power, which describes the peak luminous intensity at the center of the directional beam.

CBCP should not be confused with lumens. Lumens describe total light output, while CBCP describes the intensity of a concentrated beam in a particular direction. Therefore, the 1750 CBCP rating does not indicate 1750 lumens.

Inspection, Service & Maintenance

Before installing, inspecting, or servicing the LITE100-125 Halogen Blast Light, disconnect the assembly from its electrical power source and shut down associated blasting equipment according to the applicable manufacturer procedures.

Periodically inspect the complete assembly for:

• Damaged electrical cord insulation
• Cuts, abrasions, or crushed sections along the 125-foot cord
• Loose electrical connections
• Damaged plugs or connectors
• Converter damage
• Cracked or damaged lens components
• Worn or damaged strain relief
• Halogen lamp failure
• Loose mounting components
• Abrasive accumulation around the housing or lens
• Physical impact damage
• Damaged seals or retaining components
• Evidence of overheating or electrical deterioration

When replacing the lamp or servicing the assembly, use components specified for the 12V, 20W LITE100 configuration.

Do not substitute a higher-wattage lamp simply to increase light output. Increasing lamp wattage can increase current draw and heat generation beyond the intended electrical and thermal design of the assembly.

After service, verify that the lamp, lens, seals, retaining components, cord, converter, and electrical connections are properly installed before returning the light to operation.

Application & Important Notes

• This listing is for the Pirate Brand LITE100-125 complete 120VAC-to-12VDC 20W Halogen Blast Light Assembly with 125-foot cord.
• The assembly includes the applicable 120VAC-to-12VDC power conversion required for this configuration.
• Input power is 120VAC, while the blast light operates at 12VDC.
• Rated lamp power is 20 watts.
• Approximate current draw at the 12V light is 1.66666 amps.
• Light intensity is rated at 1750 CBCP (Center Beam Candle Power).
• The assembly uses a 125-foot cord configuration for extended working reach.
• This is a no-air blast light and does not require a dedicated compressed-air supply for light cooling.
• Do not confuse LITE100-125 with the standard LITE100, which is the 12V 20W / 1750 CBCP configuration supplied with a shorter 10-foot cord and without the 120VAC-to-12VDC converter configuration.
• Do not confuse the 20W / 1750 CBCP LITE100 series with the higher-output 35W / 2400 CBCP LITE200 series.
• Verify that the available electrical source meets the manufacturer's voltage and power requirements before connecting the assembly.
• Use only the specified replacement lamp or an approved equivalent with the correct voltage, wattage, dimensions, and electrical characteristics.
• Do not substitute a higher-wattage lamp, modify the converter, alter the wiring, or otherwise change the electrical configuration.
• 1750 CBCP is a center-beam intensity measurement and is not equivalent to 1750 lumens.
• Inspect the entire length of the 125-foot cord before use, particularly in abrasive environments where electrical cords can be exposed to abrasion, crushing, impact, and other mechanical damage.
• Additional sealed strain-relief provisions may be required when blast-light equipment is used with electrically conductive abrasive media, depending on the equipment configuration and manufacturer's requirements.
• Follow all applicable electrical, grounding, abrasive blasting, PPE, and equipment safety procedures for the specific work environment.
• This listing is for one LITE100-125 complete blast light assembly with 120VAC-to-12VDC converter and 125-foot cord unless otherwise specified. Replacement lamps, lenses, sockets, mounting components, strain-relief components, and other service parts are sold separately unless explicitly included.
