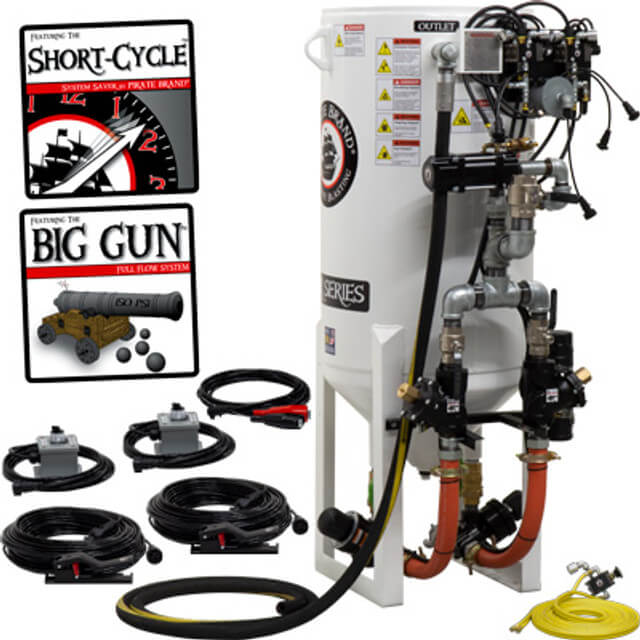

10.0 cu ft Stationary Electric Blast Pot – Dual Outlet Pressure Release System with Abrasive Cut-Off Feature, 1-1/2″ Piping / 2″ Inlet
Part Number: 888-5742-33910PB-E
Weight: 607.00 lbs
Category: Abrasive Blast Pot / Sandblasting Machine
Configuration:
Stationary Blast Pot – Dual Outlet (2 Outlets)
10.0 CU. FT. (285 Liters)
150 PSI (10.3 BAR)
Electric Pressure Release System
Wall-Mounted Abrasive Cut-Off Feature
Overall Height (OAH): 66″
-
Includes:
9″ Umbrella
(2) APV II w/ TC Sleeve / Combination Valve
Big Gun Full Flow System
Union End Ball Valve
1-1/2″ Piping / 2″ Inlet
(2) 110′ Control Cords & (2) Control Handles #2
5-Year / 10-Year Warranty*
-
Literature:
When Using Steel Abrasives:
Electric Control Handle #2 (888-2263-401PB) and Sealed Connector(s) (PB-31131) are required.
Features & Benefits – SPR Electric Stationary Big Gun Full Flow System
10.0 CU. FT. Capacity (285 Liters)
150 PSI vessel (10.3 BAR)
A.S.M.E. Section VIII Division 1 certified
CRN for all provinces
Pressure Release System
Automatically blows down the vessel when control handle is released
Low-maintenance design for long-term reliability
Simplified troubleshooting for in-field service
Electric Controls – 12 VDC System
Provides faster stop/start response over 100 ft blast hose runs
Prevents freezing in cold weather conditions
Heavy-duty filtered control valve reduces stopping time on release
Big Gun Full Flow System Provides:
Zero pressure drop path for air and abrasive flow
Every 1 PSI gain/loss equals ~1.5 % production change
Full-port coupling for unrestricted flow to the nozzle
800 CFM Moisture Separator Upgrade Available (Not Included)
1-1/2″ Galvanized Piping / 2″ Inlet
Superior corrosion resistance and durability
Heavy-Duty Full Port Ball Valves
Extended Life Schedule 80 Heavy-Duty Nipple
Designed to withstand abrasive wear for longer service life
Bolt Clamps on Pusher Line
Enables fast field repairs and component changes
Combination Valve / APV II Valve
Combination Valve: 2-in-1 design stops air blasting and relieves pressure when handle is released
Automatic Plunger Valve II (APV II): quadruple plunger seal prevents air/abrasive carry-over and jamming under low pressure or steel media use
Solid machined tungsten carbide plunger & sleeve for superior wear resistance
1″ NPT clean-out port for quick drain and obstruction access
15′ Blowdown Hose Assembly for Remote Mounting
9″ Adjustable Spider
Fully adjustable for different abrasive media types and sizes
Keeps abrasive weight off the pop-up for secure sealing
Skirted Pop-Up Gasket
Knives through abrasive to aid sealing
Reduces abrasive "burping" common in hopper feeds
Recommended for large grit media
Union End Ball Valves
Allow bottom shut-off for valve maintenance without dumping abrasive
Full Load Lifting Eyes
Enables safe lifting and transport for placement or maintenance
