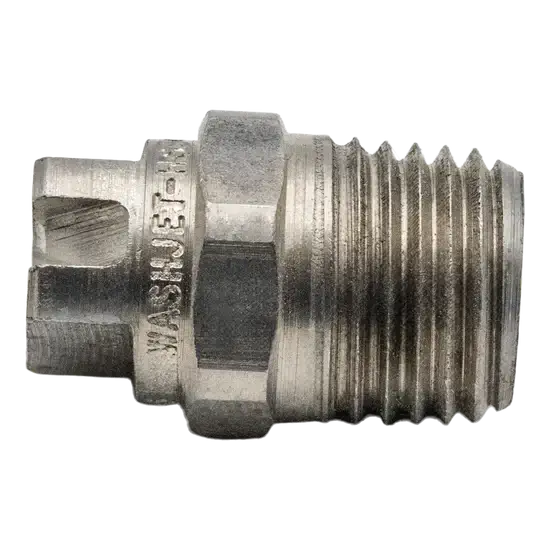

1/4" MEG Pressure Washer Spray Nozzle – 9.0 Orifice 40°WashJet Nozzle Tip
Part Number: 1093
Category: Pressure Washer Accessories → Spray Nozzles
Type: 1/4" MEG Pressure Washer Spray Nozzle – 9.0 Orifice 40°WashJet Nozzle Tip
The 1/4" MEG Pressure Washer Spray Nozzle (Part #1093) is a genuine OEM pressure washer nozzle manufactured by Spraying Systems Co. for commercial, industrial, agricultural, and residential pressure washing applications. Featuring a 9.0 orifice and a 40-degree fan spray pattern, this nozzle delivers a wide, even spray that provides excellent surface coverage while minimizing impact pressure. It is ideal for rinsing, washing, and cleaning delicate or finished surfaces where broad coverage is preferred over concentrated cleaning force.
Key Features & Benefits
- Genuine MEG OEM pressure washer spray nozzle
- Part Number: 1093
- Manufactured by Spraying Systems Co.
- 40° 40° fan spray pattern
- 9.0 orifice size
- Standard 1/4" male NPT connection
- Rated for systems up to 4,000 PSI
- Precision hardened stainless steel orifice
- Wide spray pattern for gentle cleaning and rinsing
- Excellent surface coverage
- Long-lasting wear resistance
- Consistent spray performance
- Compatible with most standard pressure washer spray wands and lance assemblies
Technical Specifications
Part Number: 1093
Manufacturer: Spraying Systems Co.
Series: MEG WashJet
Product Type: Pressure Washer Spray Nozzle
Nozzle Size: 9.0
Spray Pattern: 40°
Connection Type: 1/4" Male NPT
Maximum Pressure: 4,000 PSI
Nozzle Material: Hardened Stainless Steel
OEM Replacement: Yes
Compatible Applications
Suitable for use with:
- Commercial pressure washers
- Residential pressure washers
- Hot and cold water pressure washers
- Pressure washer spray guns
- Pressure washer wands
- Lance assemblies
- Soft surface cleaning
- Vehicle rinsing
- Building washing
- Agricultural equipment rinsing
- Fleet washing
- Industrial facility cleaning
- General washdown applications
Always verify nozzle size, operating pressure, flow rate, and thread compatibility before ordering.
Function of the Spray Nozzle
The MEG 1093 spray nozzle helps:
- Produce a wide 40° high-pressure fan spray
- Deliver broad cleaning coverage with reduced impact pressure
- Improve rinsing efficiency across large surface areas
- Provide consistent spray distribution
- Maintain proper operating pressure and flow
- Deliver dependable OEM cleaning performance
Its 40° spray pattern is ideal for rinsing vehicles, trailers, siding, painted surfaces, windows, equipment, agricultural machinery, decks, patios, and other surfaces that benefit from wide, even water coverage.
Common Signs Replacement Is Needed
Replace the nozzle if you notice:
- Uneven or distorted spray pattern
- Reduced cleaning performance
- Worn or enlarged orifice
- Corrosion or physical damage
- Pressure loss caused by nozzle wear
- Inconsistent spray coverage
Replacing a worn nozzle restores proper spray pattern, operating pressure, and cleaning efficiency.
Installation & Service Notes
Turn off the pressure washer and relieve system pressure before changing nozzles.
Apply an appropriate thread sealant if required and install the 1/4" male NPT nozzle securely into a compatible spray wand or lance.
Tighten securely without overtightening.
Inspect the threaded connection regularly for leaks or wear.
Important: Match the 9.0 orifice size to your pressure washer's GPM and PSI specifications to maintain proper operating pressure and flow. The 40° spray pattern is designed for broad coverage and gentle cleaning, making it ideal for rinsing and cleaning delicate or finished surfaces while reducing the risk of surface damage.
Maintenance Recommendations
- Flush the nozzle with clean water after each use.
- Inspect the hardened stainless steel orifice regularly for wear or mineral buildup.
- Clean clogged nozzles using an approved nozzle cleaning tool—never use wire or sharp objects that may damage the precision orifice.
- Inspect the threaded connection for wear or damage.
- Store the nozzle in a clean, dry location when not in use.
- Use only genuine OEM MEG replacement nozzles to maintain proper spray pattern, operating pressure, and long-term performance.
