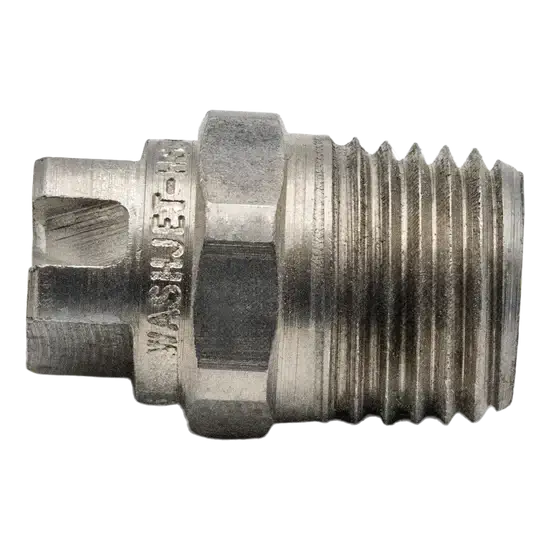

1/4" MEG Pressure Washer Spray Nozzle – 10.0 Orifice 15° WashJet Nozzle Tip

Part Number: 1136
Category: Pressure Washer Accessories → Spray Nozzles
Type: 1/4" MEG Pressure Washer Spray Nozzle – 10.0 Orifice 15° WashJet Nozzle Tip

The 1/4" MEG Pressure Washer Spray Nozzle (Part #1136) is a genuine OEM pressure washer nozzle manufactured by Spraying Systems Co. for commercial, industrial, agricultural, and residential pressure washing applications. Featuring a 10.0 orifice and a 15-degree fan spray pattern, this nozzle delivers concentrated cleaning power with controlled surface coverage, making it ideal for removing stubborn dirt, grease, oil, mud, paint residue, mildew, and heavy buildup from durable surfaces.

Key Features & Benefits

• Genuine MEG OEM pressure washer spray nozzle
• Part Number: 1136
• Manufactured by Spraying Systems Co.
• 15° fan spray pattern
• 10.0 orifice size
• Standard 1/4" male NPT connection
• Rated for systems up to 4,000 PSI
• Precision hardened stainless steel orifice
• Aggressive cleaning with controlled surface coverage
• Excellent for removing stubborn dirt and heavy buildup
• Long-lasting wear resistance
• Consistent spray performance
• Compatible with most standard pressure washer spray wands and lance assemblies

Technical Specifications

Part Number: 1136

Manufacturer: Spraying Systems Co.

Series: MEG WashJet

Product Type: Pressure Washer Spray Nozzle

Nozzle Size: 10.0

Spray Pattern: 15°

Connection Type: 1/4" Male NPT

Maximum Pressure: 4,000 PSI

Nozzle Material: Hardened Stainless Steel

OEM Replacement: Yes

Compatible Applications

Suitable for use with:

• Commercial pressure washers
• Residential pressure washers
• Hot and cold water pressure washers
• Pressure washer spray guns
• Pressure washer wands
• Lance assemblies
• Heavy equipment cleaning
• Construction equipment maintenance
• Agricultural equipment cleaning
• Concrete cleaning
• Industrial facility cleaning
• Surface preparation
• General-purpose pressure washing

Always verify nozzle size, operating pressure, flow rate, and thread compatibility before ordering.

Function of the Spray Nozzle

The MEG 1136 spray nozzle helps:

• Produce a 15° high-pressure fan spray
• Deliver aggressive cleaning power with controlled surface coverage
• Remove stubborn dirt, grease, mud, mildew, and heavy buildup efficiently
• Provide consistent spray distribution
• Maintain proper operating pressure and flow
• Deliver dependable OEM cleaning performance

Its 15° spray pattern is ideal for removing stubborn contaminants from concrete, heavy equipment, construction machinery, agricultural equipment, industrial equipment, and other durable surfaces that require more concentrated cleaning force.

Common Signs Replacement Is Needed

Replace the nozzle if you notice:

• Uneven or distorted spray pattern
• Reduced cleaning performance
• Worn or enlarged orifice
• Corrosion or physical damage
• Pressure loss caused by nozzle wear
• Inconsistent spray coverage

Replacing a worn nozzle restores proper spray pattern, operating pressure, and cleaning efficiency.

Installation & Service Notes

Turn off the pressure washer and relieve system pressure before changing nozzles.

Apply an appropriate thread sealant if required and install the 1/4" male NPT nozzle securely into a compatible spray wand or lance.

Tighten securely without overtightening.

Inspect the threaded connection regularly for leaks or wear.

Important: Match the 10.0 orifice size to your pressure washer's GPM and PSI specifications to maintain proper operating pressure and flow. The 15° spray pattern provides greater cleaning force than a 25° nozzle and is intended for durable surfaces. Exercise caution when cleaning painted finishes, vehicles, wood, glass, or other delicate materials that may be damaged by concentrated high-pressure spray.

Maintenance Recommendations

• Flush the nozzle with clean water after each use.
• Inspect the hardened stainless steel orifice regularly for wear or mineral buildup.
• Clean clogged nozzles using an approved nozzle cleaning tool—never use wire or sharp objects that may damage the precision orifice.
• Inspect the threaded connection for wear or damage.
• Store the nozzle in a clean, dry location when not in use.
• Use only genuine OEM MEG replacement nozzles to maintain proper spray pattern, operating pressure, and long-term performance.
