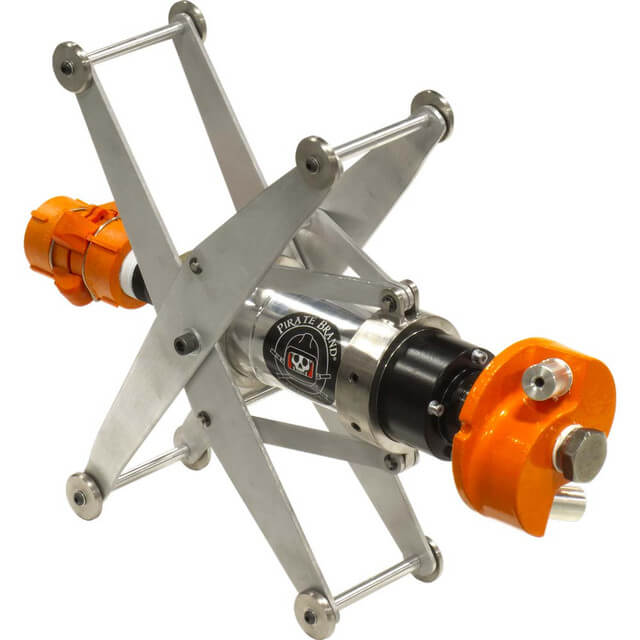

Typhoon Pipe Blaster Small Range Scissor Carriage – Adjustable 8″ to 17″

Part Number: 015100
Category: Sandblasting & Abrasive Accessories
Type: Typhoon Pipe Blaster Small Range Scissor Carriage – Adjustable 8″ to 17″

The 015100 Small Range Scissor Carriage is designed to expand the capability of the Typhoon™ Pipe Blaster, allowing precise centering and stable operation inside pipes with internal diameters from 8″ to 17″. This adjustable carriage ensures consistent alignment, smooth rotation, and uniform blasting coverage throughout the pipe. Built for rugged field use, it installs easily onto the Typhoon™ tool and provides dependable support for efficient internal surface preparation in small- to mid-diameter piping.

Product Specifications

• Model: 015100

• Type: Optional Scissor Carriage for Typhoon™ Pipe Blaster

• Adjustment Range: 8″ – 17″ Internal Diameter

• Weight: 7.50 lbs

• Condition: New

Features & Benefits

• Expands Typhoon™ Pipe Blaster capability for smaller pipe IDs

• Adjustable scissor mechanism for precise centering

• Promotes smooth rotation and even blast coverage

• Rugged construction for industrial use

• Quick installation and adjustment in the field

Installation Notes

1. Slide the back end of the tool into the expanded carriage, through the front collar and into the rear collar.

2. Position the rear collar in front of the breather vent holes on the seal retainer body—do not block the vent holes.

3. Tighten the two (2) set screws on the rear collar.

4. Expand the scissor mechanism to match the pipe’s internal diameter and tighten the two (2) socket set screws on the front collar.

5. Verify that the rotating head spins freely before operation.
