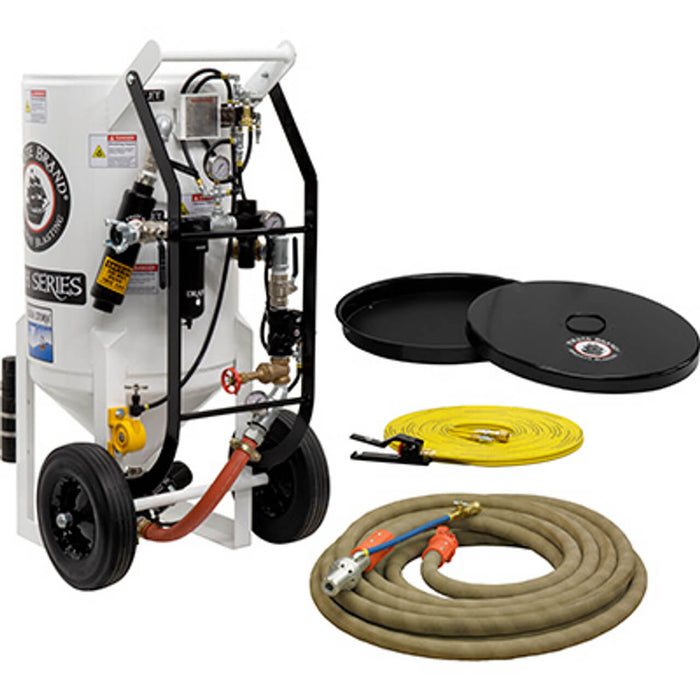

6.5 cu ft Portable Soda Storm Pneumatic Blast Pot – APV II Metering Valve, 1-1/4″ Piping with Moisture Separator

Part Number: 999-8040-060PB
Category: Abrasive Blast Pot / Soda Blasting Machine

Configuration:

• Portable Blast Pot – Soda Storm Pneumatic System

• 6.5 CU. FT. (185 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Includes:

  • APV II Metering Valve with Multi-Ported Stainless-Steel Sleeve

  • Auto Air Valve

  • 1-1/4″ Galvanized Piping with Moisture Separator

  • Lid, Fine Mesh Screen & Loading Skid/Valve Guard

  • 55′ Twin Line Hose Assembly

  • Control Handle #2

  • 50′ × 1″ Ergo Flex Blast Hose with Couplings

  • #5 Tungsten Carbide Water Induction Nozzle System

  • 5-Year / 10-Year Warranty*

• Includes 100 lbs of Free Natrium Soda Blast 260 Media

Compatibility:

Operational Notes:

• Soda Storm™ blasters operate smoothly throughout the regulator range down to 5 PSI.

• Do not exceed 125 PSI when using blast hose with nylon nozzle holders or couplings.

Features & Benefits – SPH Soda Storm Pneumatic

6.5 CU. FT. Capacity (185 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption

• Minimizes moisture problems

• Ensures smoother start/stop performance

Moisture Separator with Filter Element

• Removes contaminants down to 50 microns

1-1/4″ Galvanized Piping

• Provides superior corrosion resistance and durability

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Nipple

• Designed to withstand abrasive wear for longer service life

Bolt Clamps on Pusher Line

• Simplifies field repairs and component changes

Normally Closed Valves (APV II)

• Quadruple plunger seal prevents abrasive carry-over and seal jamming

• Multi-ported sleeve supports up to 4 fixed orifices to fine-tune flow rate (lb/min)

• Solid Tungsten Carbide plunger & sleeve offer exceptional wear resistance

• 1″ cleanout ball valve for fast material switching and cleaning

• Auto Air Valve enables rapid start/stop control

• Filtered control valve reduces stopping delay when handle is released

Sanitary Cleanout Coupling

• Allows easy access to clear blockages or bridging

Abrasive Flow Assist Vibrator with Controls

Pressure Regulator (10–150 PSIG) with Liquid-Filled Gauge

Differential Pressure Gate Valve with Liquid-Filled Gauge

• Provides precision abrasive flow control (lb/min)

Blow-Down Muffler

• Minimizes noise during depressurization

Blast Hose and Coupling System

• 50′ Ergo Flex blast hose with nylon couplings reduces operator fatigue

Patented Water Induction Nozzle System (WIN)

• Dual dry and wet blast operation

• Consumes as little as ¾ to 6 quarts of water per minute

• Tungsten carbide lining extends nozzle lifespan

Soda Storm Standard Accessories

• Lid prevents rain and debris from entering the pot

• Fine mesh screen keeps abrasive clean and free of paper contaminants

• Valve guard protects components during transport
