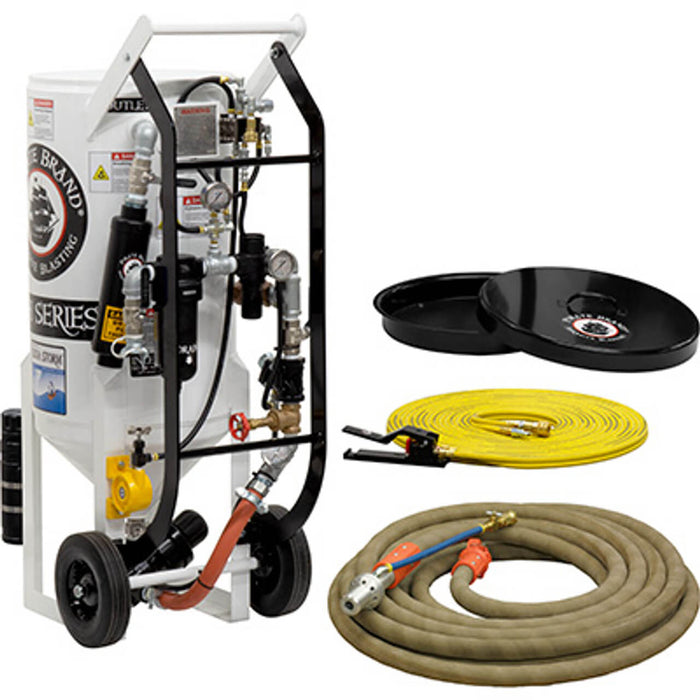

3.5 cu ft Portable Soda Storm Pneumatic Blast Pot – APV II Metering Valve, 1″ Piping with Moisture Separator & Water Induction Nozzle System

Part Number: 999-8040-030PB
Weight: 508.81 LBS
Category: Abrasive Blast Pot / Soda Blasting Machine

Configuration:

• Portable Blast Pot – Soda Storm Pneumatic System

• 3.5 CU. FT. (100 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Includes:

  • APV II Metering Valve with Multi-Ported Stainless Steel Sleeve

  • Auto Air Valve

  • 1″ Galvanized Piping with Moisture Separator

  • Lid, Fine Mesh Screen, and Loading Skid/Valve Guard

  • 55′ Twin Line Hose Assembly

  • Control Handle #2

  • 50′ x 1″ Ergo Flex Blast Hose with Couplings

  • #5 Tungsten Carbide Water Induction Nozzle System

  • 5-Year / 10-Year Warranty*

• Includes 100 lbs of Free Natrium Soda Blast 260 Media

Compatibility:

Operational Notes:

• Soda Storm™ blasters operate effectively throughout the regulator range down to 5 PSI.

• Do not exceed 125 PSI when using blast hose with nylon nozzle holders or couplings.

Features & Benefits – SPH Soda Storm Pneumatic

3.5 CU. FT. Capacity (100 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption

• Minimizes moisture-related issues

• Provides smoother start/stop control

Moisture Separator with Filter Element

• Removes contaminants down to 50 microns

1″ Galvanized Piping

• Corrosion-resistant for long-lasting reliability

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Nipple

• Engineered to withstand abrasive wear for longer life

Bolt Clamps on Pusher Line

• Allows quick and easy field repairs

Normally Closed Valves (APV II)

• Quadruple plunger seal prevents air/abrasive carryover and jamming

• Multi-ported sleeve offers up to four fixed orifices to fine-tune flow rate (lb/min)

• Solid machined Tungsten Carbide plunger & sleeve deliver extended durability

• 1″ cleanout ball valve for fast material changeover and maintenance

• Auto Air Valve for rapid start/stop operation

• Filtered control valve reduces delay when handle is released

Sanitary Cleanout Coupling

• Enables direct access to clear obstructions

Abrasive Flow Assist Vibrator with Controls

Pressure Regulator (10–150 PSIG) with Liquid-Filled Gauge

Differential Pressure Gate Valve with Liquid-Filled Gauge

• Provides precise abrasive flow control (lb/min)

Blowdown Muffler

• Reduces loud discharge noise during operation

Blast Hose & Coupling System

• 50′ Ergo Flex blast hose with nylon couplings minimizes operator fatigue

Patented Water Induction Nozzle System (WIN)

• Dual dry/wet blasting functionality

• Uses minimal water (¾ to 6 quarts per minute)

• Tungsten carbide lining for superior wear resistance

Soda Storm Standard Accessories

• Lid prevents moisture or debris contamination

• Fine mesh screen keeps paper or bag material out of the vessel

• Valve guard protects gauges and valves during transport
