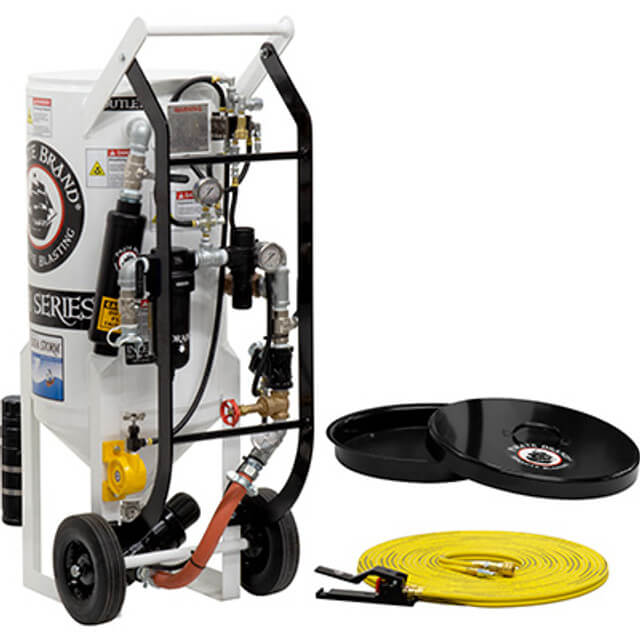

3.5 cu ft Portable Soda Storm Pneumatic Blast Pot – APV II Metering Valve, 1″ Piping with Moisture Separator

Part Number: 999-8040-130PB
Weight: 478.91 LBS
Category: Abrasive Blast Pot / Soda Blasting Machine

Configuration:

• Portable Blast Pot – Soda Storm Pneumatic System

• 3.5 CU. FT. (100 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Includes:

  • APV II Metering Valve with Multi-Ported Stainless-Steel Sleeve

  • Auto Air Valve

  • 1″ Galvanized Piping with Moisture Separator

  • Lid, Fine Mesh Screen & Loading Skid/Valve Guard

  • 55′ Twin Line Hose Assembly

  • Control Handle #2

  • 5-Year / 10-Year Warranty*

• Includes 100 lbs of Free Natrium Soda Blast 260 Media

Compatibility:

Operational Notes:

• Soda Storm™ blasters operate effectively throughout the regulator range down to 5 PSI.

• Do not exceed 125 PSI when using blast hose with nylon nozzle holders or couplings.

• Not for use in all cabinet applications — requires a large dust collector (consult before purchase).

Features & Benefits – SPH Soda Storm Pneumatic

3.5 CU. FT. Capacity (100 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption

• Minimizes moisture problems

• Provides smoother start/stop operation

Moisture Separator with Filter Element

• Filters contaminants down to 50 microns

1″ Galvanized Piping

• Corrosion-resistant and durable

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Nipple

• Withstands abrasive wear for longer service life

Bolt Clamps on Pusher Line

• Allows for fast and easy field repairs

Normally Closed Valves (APV II)

• Quadruple plunger seal prevents air/abrasive carry-over and seal jamming

• Multi-ported sleeve offers up to 4 fixed orifices for precise flow control (lb/min)

• Solid Tungsten Carbide plunger & sleeve provide superior wear resistance

• 1″ cleanout ball valve for quick material switch or cleaning

• Auto Air Valve enables rapid start/stop control

• Filtered Control Valve minimizes stopping delay when handle is released

Sanitary Cleanout Coupling

• Provides access to clear obstructions or bridging

Abrasive Flow Assist Vibrator with Controls

Pressure Regulator (10–150 PSIG) with Liquid-Filled Gauge

Differential Pressure Gate Valve with Liquid-Filled Gauge

• Enables precision abrasive flow rate control (lb/min)

Blow-Down Muffler

• Reduces loud discharge noise during operation

Soda Storm Standard Accessories

• Lid protects against rain and debris

• Fine mesh screen prevents contaminants like paper or bag debris from entering the vessel

• Valve guard shields gauges & valves during transport
