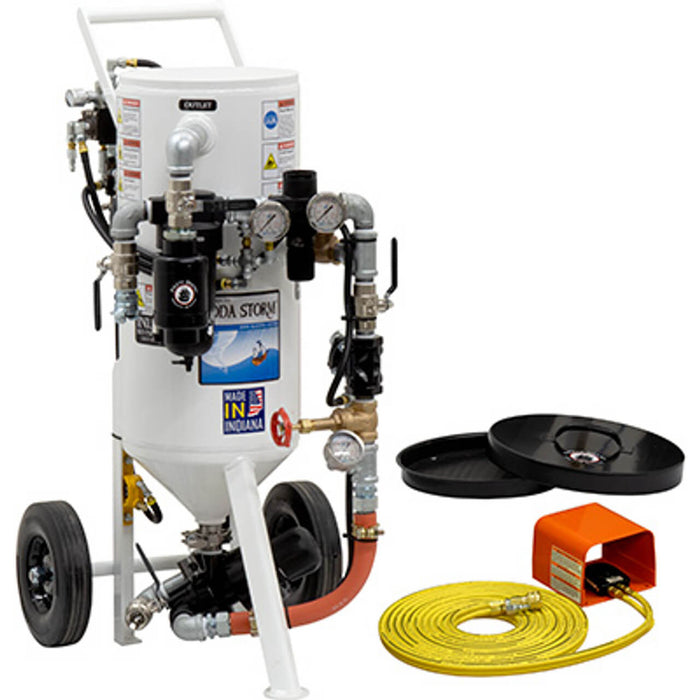

1.5 cu ft Cabinet Series Soda Storm Pneumatic Blast Pot – APV II Metering Valve, 1″ Piping with Moisture Separator

Part Number: 999-8040-010PB-CAB
Weight: 300.00 LBS
Category: Abrasive Blast Pot / Soda Blasting Machine

Configuration:

• Cabinet Series Soda Storm Pneumatic System

• 1.5 CU. FT. (43 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Includes:

  • APV II Metering Valve with Multi-Ported Stainless-Steel Sleeve

  • Auto Air Valve

  • 1″ Galvanized Piping with Moisture Separator

  • Lid & Fine Mesh Screen

  • 25′ Twin Line Hose Assembly & Foot Pedal

  • 5-Year / 10-Year Warranty*

• Includes 100 lbs of Free Natrium Soda Blast 260 Media

Operational Notes:

• Soda Storm™ blasters operate effectively throughout the regulator range down to 5 PSI.

• Do not exceed 125 PSI when using blast hose with nylon nozzle holders or couplings.

• Not for use in all cabinet applications — requires a large dust collector (consult before purchase).

Features & Benefits – SPH Soda Storm Pneumatic (Cabinet Series)

1.5 CU. FT. Capacity (43 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN approved for all provinces

Pressure Hold System

• Reduces abrasive consumption

• Minimizes moisture problems

• Delivers smoother starts and stops

Moisture Separator with Filter Element

• Filters contaminants down to 50 microns

1″ Galvanized Piping

• Provides corrosion resistance and extended service life

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Heavy-Duty Nipple

• Withstands abrasive wear for longer life

Bolt Clamps on Pusher Line

• Simplifies field service and maintenance

Normally Closed Valves (APV II)

• Quadruple plunger seal arrangement prevents air/abrasive carry-over

• Multi-ported sleeve supports up to 4 fixed orifices for precise flow control (lb/min)

• Solid Tungsten Carbide plunger & sleeve for exceptional wear resistance

• 1″ cleanout ball valve assembly allows quick abrasive switch or cleaning

• Auto Air Valve enables fast starts and stops

• Heavy-duty filtered control valve minimizes stop time when foot pedal is released

Sanitary Cleanout Coupling

• Allows quick access to clear obstructions at the metering port

Abrasive Flow Assist Vibrator with Controls

Pressure Regulator (10–150 PSIG) with Liquid-Filled Gauge

Differential Pressure Gate Valve with Liquid-Filled Gauge

• Provides precision control over abrasive flow rate (lb/min)

Blow-Down Muffler

• Reduces noise during depressurization

Soda Storm Standard Accessories

• Lid prevents moisture and contaminants from entering the pot

• Fine mesh screen filters debris and particles from abrasive material
