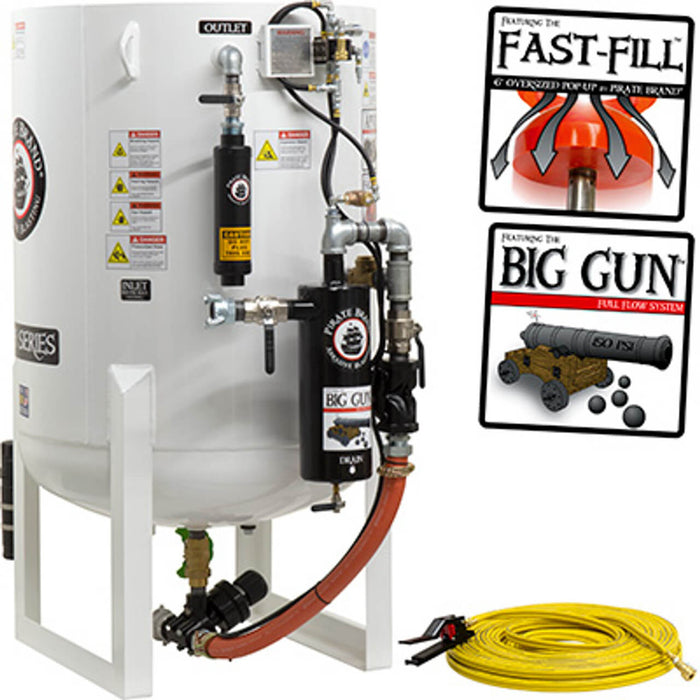

20.0 cu ft Stationary Pneumatic Blast Pot – Single Outlet Pressure Hold System with Vessel-Mounted Abrasive Cut-Off Feature, 65″ OAH

Part Number: 888-2931-33904PB-E
Category: Abrasive Blast Pot / Sandblasting Machine

Configuration:

• Stationary Blast Pot – Single Outlet

• 20.0 CU. FT. (570 Liters)

• 150 PSI (10.3 BAR)

• Pressure Hold System

• Pneumatic Operation w/ Vessel-Mounted Abrasive Cut-Off Feature

• Overall Height (OAH): 65″

• Includes:

  • 11″ Umbrella

  • 6″ Fast-Fill™ Pop-Up

  • APV II w/ Tungsten Carbide Sleeve & Auto Air Valve

  • Big Gun Full Flow System

  • Union End Ball Valve

  • 1-1/2″ Piping w/ Big Gun Moisture Separator

  • 110′ Twin-Line Assembly & Control Handle #2

  • 5-Year / 10-Year Warranty*

• Documents:
  • Brochure
  • Manual
  • How It Works
  • Warranty

Features & Benefits – SPH Pneumatic APV II Big Gun Full Flow System

20.0 CU. FT. Capacity (570 Liters)

• 150 PSI vessel (10.3 BAR)

• A.S.M.E. Section VIII Division 1 certified

• CRN for all provinces

Pressure Hold System

• Reduces abrasive consumption

• Minimizes moisture problems

• Provides smoother starts and stops

Big Gun Full Flow System

• Delivers a zero pressure drop path for air and abrasive

• Every 1 PSI gain or loss equals approximately 1.5% production change

• Ideal for #7 and #8 nozzles

• Includes premium APV II abrasive metering valve

• Full-port coupling ensures unrestricted flow to the nozzle

Big Gun 350 CFM Heavy-Duty Moisture Separator

1-1/2″ Galvanized Piping for Corrosion Resistance

Heavy-Duty Full Port Ball Valves

Extended Life Schedule 80 Heavy-Duty Nipple

• Built to withstand abrasive wear for long service life

Bolt Clamps on Pusher Line

• Allows easy, efficient field repairs

Normally Closed Valves

• APV II premium metering valve with quadruple plunger seal eliminates air and abrasive carry-over

• Solid machined tungsten carbide plunger & sleeve for superior wear resistance

• 1″ NPT cleanout port allows quick access for clearing obstructions or draining the vessel

• Full-flow auto air valve for rapid starts and stops

• Heavy-duty filtered control valve minimizes stopping time

• Relieving control handle reduces air consumption and enhances control responsiveness

Blowdown Muffler

• Reduces unnecessary loud noise during operation

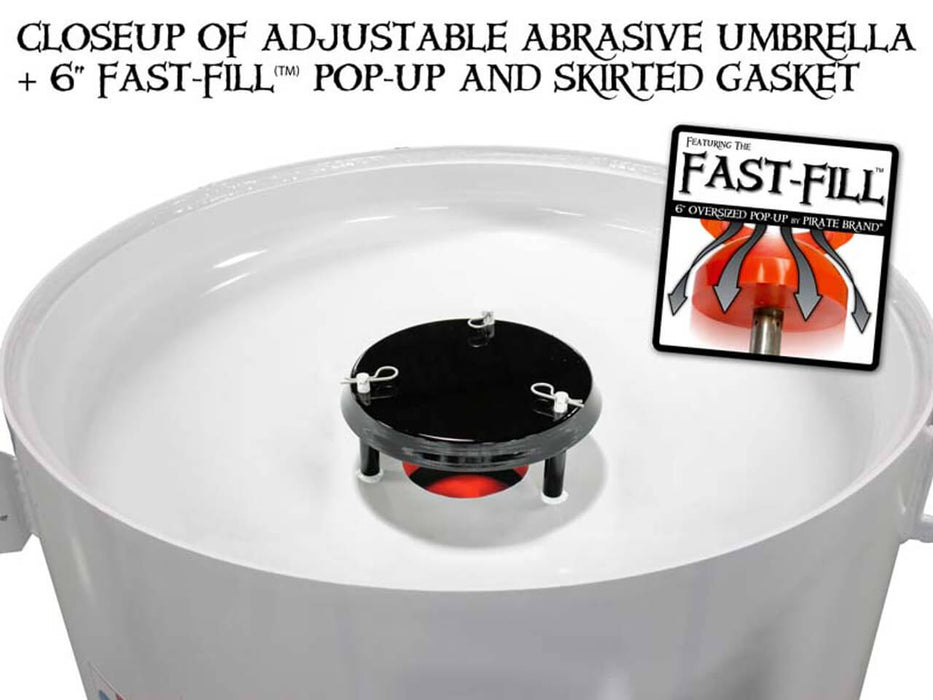

11″ Adjustable Spider

• Fully adjustable for various abrasive media types and sizes

• Keeps abrasive weight off the pop-up for reliable sealing when hopper-fed

6″ Fast-Fill Pop-Up & Skirted Pop-Up Gasket

• Large Fast-Fill Pop-Up design significantly reduces fill times

• Skirted gasket cuts through abrasive for better sealing

• Prevents abrasive “burping” issues common with hopper feed systems

• Essential when using large grit sizes

Union End Ball Valves

• Enable shutoff at the bottom of the pot for maintenance without dumping abrasive

Full Load Lifting Eyes

• Allow safe lifting and transport of the vessel for maintenance or repositioning
