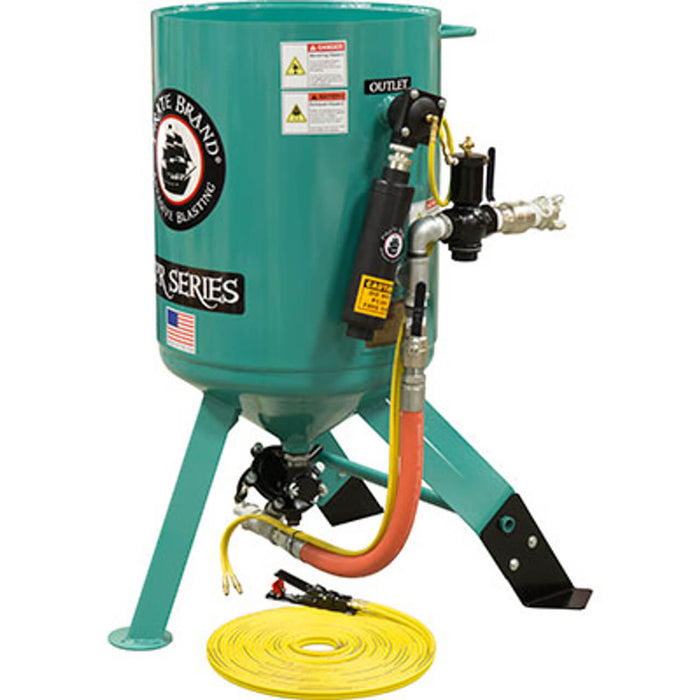

Stationary 6.0 cu ft Pneumatic Sandblast Pot w/ 4″ Umbrella – Pressure Release System, AMV II, 1-1/2″ Inlet & 1″ Outlet, 1-1/4″ Piping
Part Number: 221-0730
Heavy-duty 6.0 cu ft (170 liter) stationary abrasive blast pot designed for blast rooms, production shops, and high-volume surface prep environments. This configuration includes a 4″ umbrella inlet, which reduces load pressure on the pop-up valve during hopper abrasive feeding, improving reliability and maintaining consistent abrasive flow during continuous blasting cycles.
Equipped with a Pneumatic Pressure Release Remote System, the vessel automatically depressurizes when the operator releases the control handle, improving safety and reducing downtime between fills. The system is fitted with the AMV II™ X-TREME Duty Metering Valve, optimized for steel grit and heavy-duty abrasive media, delivering stable metering control and extended wear resistance.
Built using 1-1/2″ inlet, 1″ diaphragm outlet, and 1-1/4″ galvanized steel piping, this blast machine is engineered for high airflow efficiency, long-term durability, and consistent abrasive delivery in harsh industrial work environments.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 6.0 cu ft (170 liters) |
| Max Working Pressure | 150 PSI (10.3 bar) |
| Configuration | Stationary w/ 4″ Umbrella Loading Inlet |
| System Type | Pneumatic Pressure Release Remote Control |
| Metering Valve | AMV II™ X-TREME Duty |
| Inlet Valve | 1-1/2″ |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1-1/4″ Galvanized Steel (Corrosion Resistant) |
| Remote Control | 50′ Twinline Hose Assembly + Pneumatic Control Handle |
| Certification | ASME Section VIII Div. 1 / CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 21073 |
Key Features & Advantages

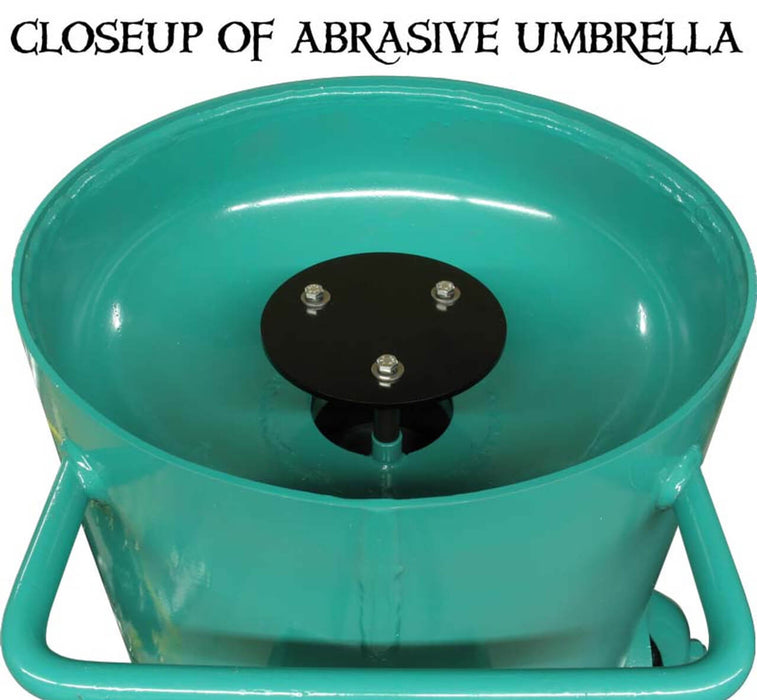

4″ Umbrella Hopper Feed Inlet
-
Reduces pop-up valve loading pressure
-
Ensures smooth, continuous abrasive feeding from overhead hoppers
-
Ideal for blast rooms and stationary production systems
AMV II™ X-TREME Duty Metering Valve
-
Designed for steel grit and reusable abrasives
-
Stainless steel metering plate + reinforced cast iron housing
-
Dual nylon wiper seals prevent abrasive contamination & jamming
-
Large clean-out & drain ports simplify servicing and inspection
-
Purge air assist port clears blockages quickly without disassembly
System Durability
-
1-1/4″ galvanized piping for extended corrosion resistance
-
Full-port heavy-duty ball valves maintain airflow & blast pressure
-
Schedule 80 wear components extend internal system lifespan
-
JIC pusher line fittings eliminate gasket leak failure points
Ideal Applications
-
Blast Rooms & Indoor Blasting Facilities
-
Industrial Fabrication & Paint/Coating Removal Shops
-
Structural Steel, Tank, Pipe & Marine Repair Facilities
-
High-Volume Production & Continuous Duty Blasting
