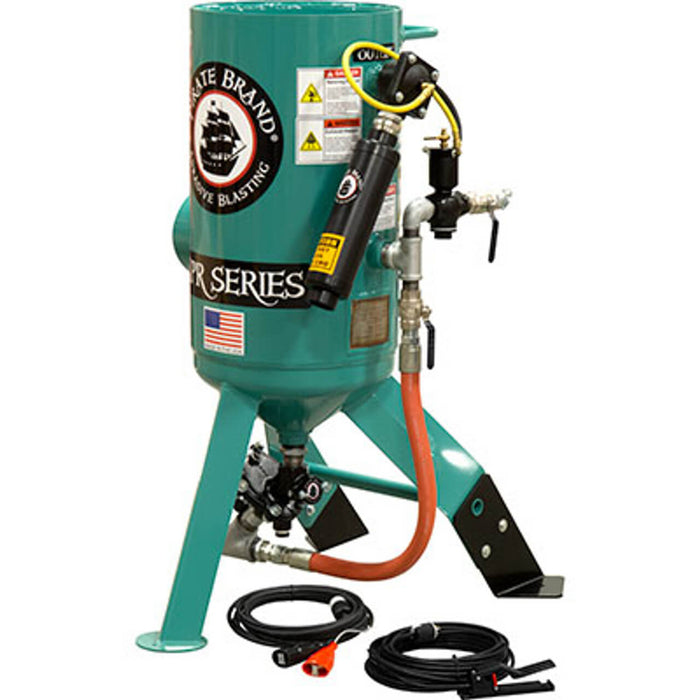

Stationary 3.0 cu ft Electric Sandblast Pot w/ 4″ Umbrella – Pressure Release System, 12VDC Controls, AMV II, 1″ Inlet/Outlet, 1″ Piping
Part Number: 221-0630-EDC
Industrial 3.0 cu ft (85 liter) stationary abrasive blast pot designed for blast rooms, fixed blasting stations, and continuous-duty surface prep operations. The 4″ umbrella inlet reduces load force on the pop-up valve during abrasive feeding, ensuring smooth and efficient media flow from an overhead hopper — ideal for high-volume and production blasting environments.
This model uses a 12VDC Electric Pressure Release Remote System, providing fast start/stop activation, especially when operating with long blast hose lengths (100+ ft), and minimizing freezing issues in cold weather conditions. Fitted with the AMV II™ X-TREME Duty Metering Valve, optimized for steel grit and reusable abrasives, offering long wear life and precise feed control.
Constructed with 1″ galvanized piping, 1″ inlet & diaphragm outlet valves, and Schedule 80 wear components, this unit is built to withstand heavy abrasive cycling and demanding indoor blasting operations.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 3.0 cu ft (85 liters) |
| Operating Pressure | 150 PSI (10.3 bar) |
| Configuration | Stationary w/ 4″ Umbrella Loading Inlet |
| Remote System | 12VDC Electric Pressure Release |
| Metering Valve | AMV II™ X-TREME Duty |
| Inlet Valve | 1″ |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1″ Galvanized Steel (Corrosion Resistant) |
| Cord Lengths | 55′ Control Cord + 25′ Power Cord |
| Vessel Certification | ASME Section VIII Div. 1 / CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 21063 |
Key Features & Advantages

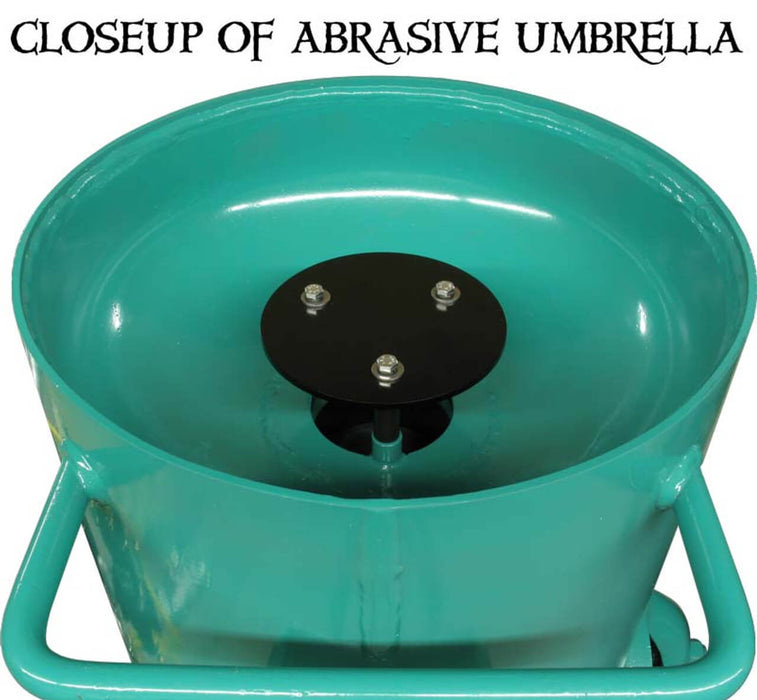

4″ Umbrella Inlet
-
Reduces pop-up load pressure during abrasive feeding
-
Ensures consistent, uninterrupted abrasive flow
-
Ideal for hopper-fed, continuous blasting environments
12VDC Electric Controls
-
Fast response for long blast hose distances
-
Reduces freezing compared to pneumatic remotes in low temperatures
-
Heavy-duty filtered valve withstands dust & harsh conditions
AMV II™ X-TREME Duty Metering Valve
-
Designed for steel grit & high-density abrasives
-
Stainless steel metering plate + reinforced iron body
-
Dual nylon wiper seals prevent jamming and media intrusion
-
Large clean-out & drain ports speed maintenance
-
Purge air assist port clears blockages quickly
Industrial Durability
-
1″ galvanized piping for corrosion & wear resistance
-
Full-port ball valves maintain airflow & blast efficiency
-
Schedule 80 wear nipple withstands long-term abrasive erosion
-
JIC pusher line fittings eliminate gasket sealing failures
Ideal Applications
-
Blast Rooms & Indoor Blast Booths
-
Fabrication & Coating Removal Shops
-
Structural Steel & Weld Prep
-
Marine & Shipyard Repair Facilities
-
Heavy Equipment Refurbishment
