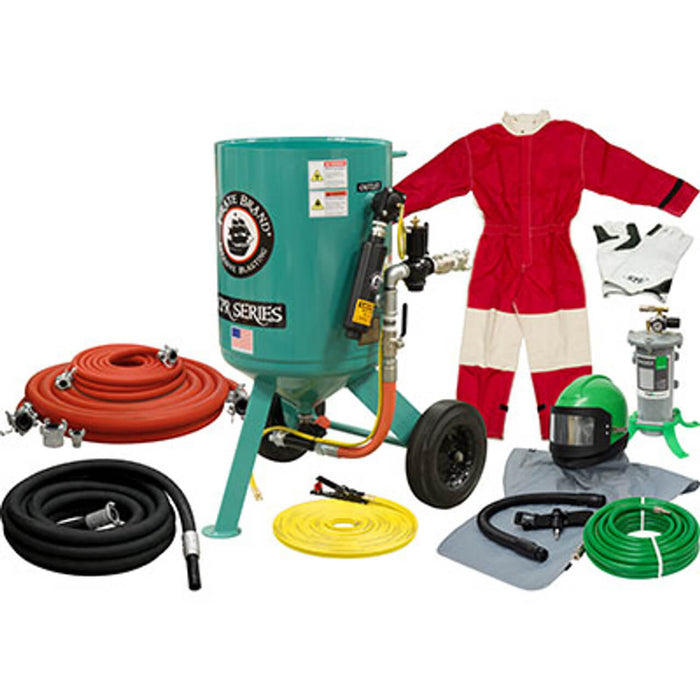

Portable 6.0 cu ft Pneumatic Sandblast Pot – Gold Blasting Package, Pressure Release System, MPV, 1-1/2″ Inlet & 1″ Outlet, 1-1/4″ Piping
Part Number: 201-1870-MPV-D
Weight: 598.41 lbs
Professional 6.0 cu ft (170 liter) portable abrasive blast pot engineered for industrial surface preparation, long blasting cycles, and jobsite reliability. This unit is equipped with a Pneumatic Pressure Release Remote System, automatically depressurizing the vessel when the operator releases the control handle — improving safety and blasting workflow efficiency.
This configuration features the MPV (Manual Plunger Valve) Metering Valve, providing simple, dependable abrasive feed adjustment suitable for a wide range of expendable and mineral abrasives. Built with a 1-1/2″ high-flow inlet valve, 1″ diaphragm outlet valve, and 1-1/4″ galvanized steel piping for optimal airflow and corrosion resistance.
The Gold Blasting Package includes PPE, blast hose, air hoses, respirator system, and nozzle — fully jobsite-ready upon delivery.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 6.0 cu ft (170 liters) |
| Max Working Pressure | 150 PSI (10.3 bar) |
| System Type | Pneumatic Pressure Release |
| Metering Valve | MPV Manual Plunger Valve |
| Inlet Valve | 1-1/2″ |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1-1/4″ Galvanized Steel (Corrosion Resistant) |
| Remote Controls | Pneumatic Control Handle + 50′ Twinline Hose Assembly |
| Vessel Certification | ASME Section VIII Div. 1 / CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01187 |
Gold Blasting Package Includes
| Qty | Component | Description |
|---|---|---|
| (1) | 10-114BLK-050-3AL | 1-1/4″ Blast Hose Assembly w/ Couplings (50 ft) |
| (1) | 1348-555 | #5 Tungsten Carbide Poly-Jacketed Nozzle |
| (1) | 122-9150 | Lightweight Blast Suit – Size Large |
| (1) | 407701 | Luxury Double-Palm Blast Gloves (Pair) |
| (1) | 407000-PFC | NOVA 2000® Air-Fed Respirator Package |
| (1) | 10-034RED-050-1 | 3/4″ Air Hose Assembly w/ Couplings (50 ft) |
| (1) | 10-112RED-050-1 | 1-1/2″ Air Hose Assembly w/ Couplings (50 ft) |
| (1) | UM-100 | 1″ Male NPT 2-Lug Air Hose Coupling |
| (1) | UF-150 | 1-1/2″ Female 4-Lug Air Hose Coupling |
Key Features & Advantages
-
6.0 cu ft blast capacity reduces refill interruptions and supports long production runs
-
Automatic pressure release blow-down improves operator safety and shutdown efficiency
-
MPV metering valve provides simple, reliable abrasive control and low maintenance cost
-
1-1/2″ inlet + 1″ outlet valve configuration maintains smooth media and airflow
-
1-1/4″ galvanized piping resists corrosion for extended internal component life
-
Full-port heavy-duty ball valves preserve airflow and blast pressure stability
-
Schedule 80 wear-resistant fittings withstand abrasive erosion and impact
-
JIC-style pusher line fittings eliminate gasket failures and sealing issues
Ideal Applications
-
Industrial Sandblasting Contractors
-
Marine & Shipyard Operations
-
Oilfield & Refinery Corrosion Removal
-
Bridge, Tank, Pipeline & Steel Structure Prep
-
Equipment & Fleet Restoration
