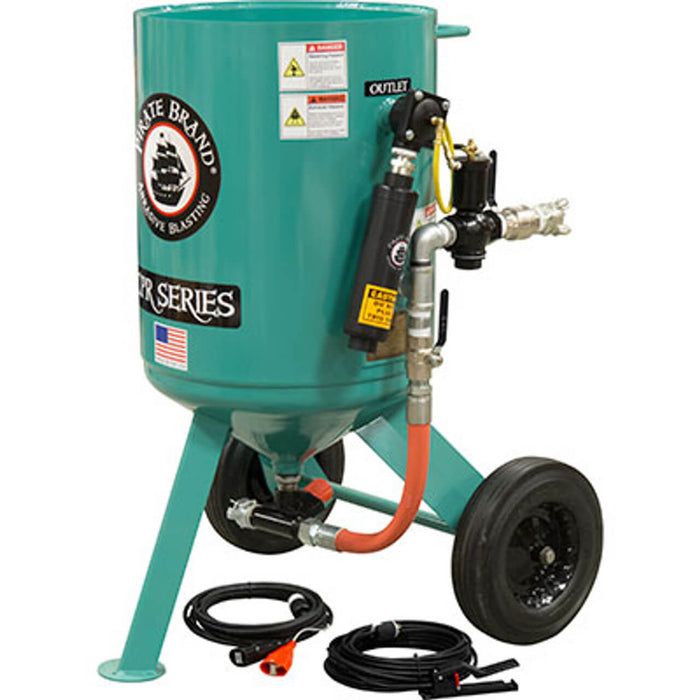

Portable 6.0 cu ft Electric Sandblast Pot – Pressure Release System, 12VDC Controls, MPV, 1-1/2″ Inlet & 1″ Outlet, 1-1/4″ Piping
Part Number: 201-1870-MPV-A-EDC
Weight: 436.24 lbs
Heavy-duty 6.0 cu ft (170 liter) portable abrasive blast pot engineered for extended blasting cycles, mobile field blasting, and cold-weather operation. This model uses a 12VDC Electric Pressure Release Control System, allowing fast on/off remote activation, smoother blasting control over long hose distances (100+ ft), and reduced freezing issues compared to pneumatic-only remote systems.
Equipped with a Manual Plunger Valve (MPV) Metering Valve, providing simple, reliable abrasive feed adjustment with low maintenance costs. Built with 1-1/2″ inlet, 1″ diaphragm outlet valve, and 1-1/4″ galvanized steel piping for consistent media flow, corrosion resistance, and long service life in abrasive environments.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 6.0 cu ft (170 liters) |
| Operating Pressure | 150 PSI (10.3 bar) |
| Control System | 12VDC Electric Pressure Release System |
| Metering Valve | MPV Manual Plunger Valve |
| Inlet Valve | 1-1/2″ |
| Outlet Valve | 1″ Diaphragm Valve |
| Piping | 1-1/4″ Galvanized Steel (Corrosion Resistant) |
| Control Cord | 55 ft Electric Control Cord + Control Handle |
| Power Cord | 25 ft 12VDC Power Supply Lead |
| Vessel Certification | ASME Section VIII Div. 1 / CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structural |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Clemco / Aerolyte / Zero Products | 01187 |
Key Features & Performance Advantages
12VDC Electric Remote Controls
-
Faster start/stop control, especially with 100+ ft blast hose runs
-
Helps prevent moisture freeze-ups in cold weather
-
Heavy-duty filtered control valve resists dust contamination
MPV Metering Valve
-
Simple, reliable manual abrasive metering system
-
Wide adjustment range for fine or heavy abrasive flow
-
Ideal for garnet, slag, crushed glass, and expendable abrasives
Construction & Flow Efficiency
-
1-1/2″ inlet + 1″ outlet configuration ensures stable abrasive flow
-
1-1/4″ galvanized piping improves internal corrosion resistance
-
Full-port heavy-duty ball valves maximize air efficiency and blast consistency
-
Schedule 80 wear parts withstand abrasive erosion for extended component life
-
JIC pusher line fittings eliminate gasket seal failures common in older designs
Ideal Applications
-
Long-distance blasting applications (tank farms, shipyards, bridges)
-
Cold-weather outdoor blasting environments
-
Equipment, fleet & steel structure surface preparation
-
Fabrication & industrial maintenance contractors
-
Mobile blasting service trucks
