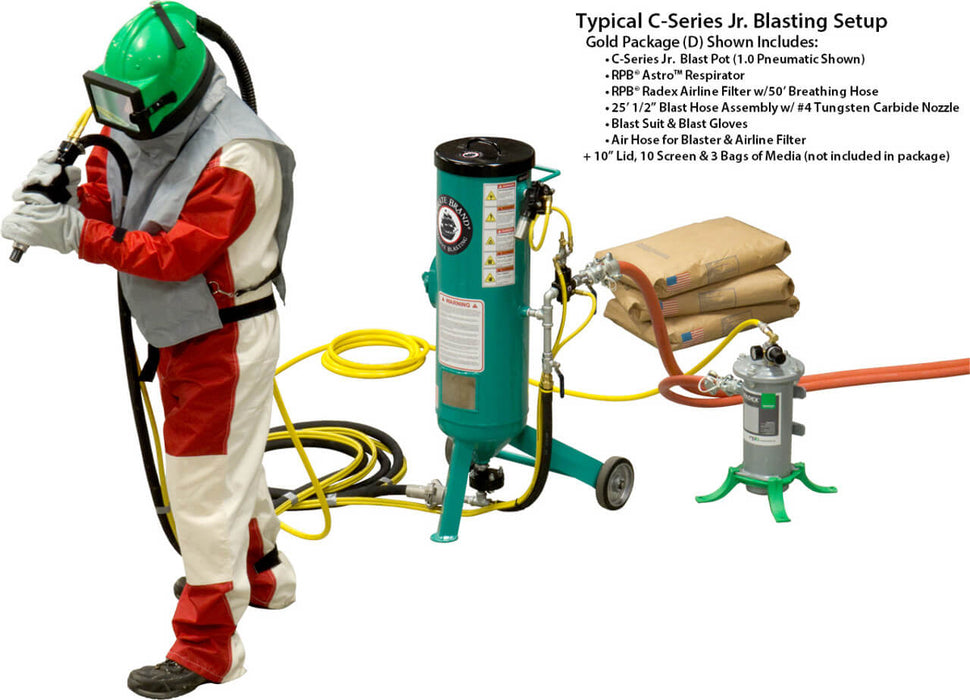

Portable 1.0 cu ft Pneumatic Blast Pot – AMV Jr Valve, ½″ Inlet/Outlet, ½″ Piping, Gold Package

Part Number: 121-0530-D
Weight: 216.36 lb (98.1 kg)

The Pirate Brand® 1.0 cu ft Portable Pneumatic Blast Pot (121-0530-D) is a premium, high-performance blasting system built for industrial durability and operator efficiency. Constructed to A.S.M.E. Section VIII Division 1 standards and hydro-tested to 225 PSI, this pot delivers consistent results up to 150 PSI (10.3 BAR).
Equipped with the AMV Jr Metering Valve, ½″ galvanized piping, and a pressure-release system, the Gold Package includes everything required for a full-scale professional setup—from hoses and nozzles to PPE and breathing-air filtration.

Specifications:

• Capacity: 1.0 cu ft (28 L)

• Pressure Rating: 150 PSI (10.3 BAR)

• System Type: Pressure Release / Pneumatic

• Inlet Valve: ½″ AMV Jr Automatic

• Outlet Valve: ½″ Diaphragm

• Piping: ½″ Galvanized Steel for corrosion resistance

• Hose Assembly: 25′ Twin-Line Hose with Pneumatic Control Handle

• Package Type: Gold Blasting Package

• Certifications: A.S.M.E. Section VIII Div. 1 / CRN for all provinces

• Warranty: 5 Year / 10 Year limited warranty *

• Weight: 216.36 lb (98.1 kg)

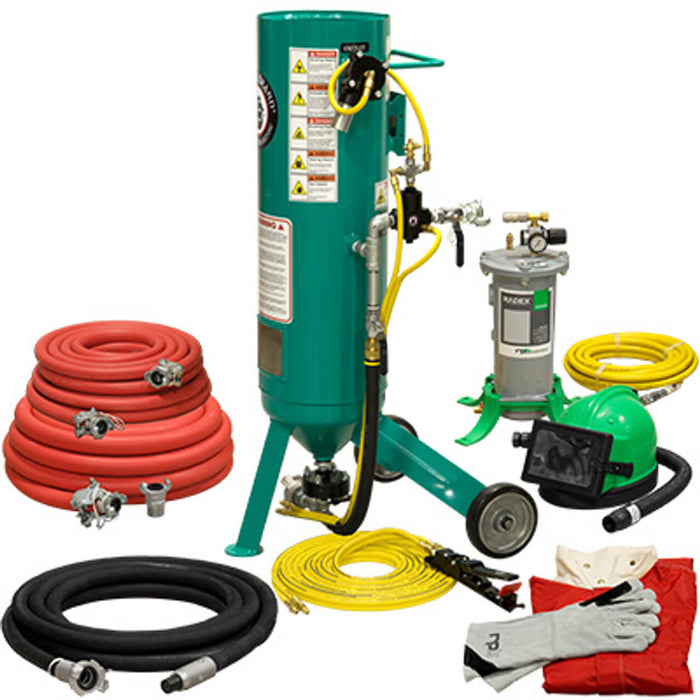

Gold Blasting Package Includes:

• (1) 10-050BLK-025-3AL – ½″ Blast Hose Assembly w/ Couplings (25′)

• (1) 1348-780 – #4 Tungsten Carbide Straight Bore Nozzle

• (1) 122-9150 – Lightweight Blast Suit (Large)

• (1) 407701 – Luxury Double-Palmed Gloves (Pair)

• (1) 407800 – RPB® Astro™ Respirator

• (1) 407900 – RPB® Radex Airline Filter™

• (1) 407028 – 25′ Breathing Air Supply Hose (⅜″)

• (1) 10-100RED-050-1 – 1″ Air Hose Assembly (50′)

• (1) 10-034RED-050-1 – ¾″ Air Hose Assembly (50′)

• (1) UM-100 – Air Hose Coupling, 2-Lug, 1″ Male NPT

Key Features & Benefits:

• All-Inclusive Professional Package – Complete system with hoses, filtration, and PPE for immediate field use.

• Automatic Pressure Release – Safely depressurizes the vessel when the control handle is released.

• Precision Media Control – AMV Jr Metering Valve ensures consistent abrasive delivery.

• Extended Durability – ½″ Galvanized piping + Schedule 80 nipples for wear resistance.

• Heavy-Duty Flow Valves – Full-port ball valves maintain maximum airflow.

• Certified Pressure Vessel – Built to A.S.M.E. and CRN standards for long service life.

• Turnkey Setup – All major air and safety components included for professional operation.

OEM Compatibility:
