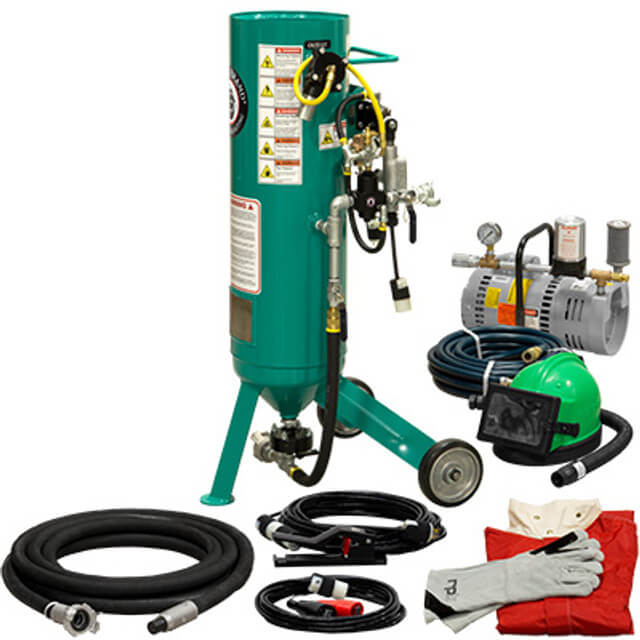

Portable 1.0 cu ft Electric Blast Pot – 12 VDC System with AMV Jr ½″ Valves & ½″ Piping, Silver Low-Pressure Sandblasting Package

Part Number: 121-0530-CLP-EDC
Weight: 219.86 lb

The Pirate Brand® 1.0 cu ft Electric Blast Pot with Silver Low-Pressure Package is designed for contractors who require reliable blasting performance but do not have additional compressor capacity to support high-pressure respirators. This system utilizes a 12 VDC electric pressure release control system and includes a low-pressure RPB® Astro™ respirator supplied by a dedicated 3/4 HP ambient air pump, preventing the need for additional compressor CFM.

Ideal for mobile blasting, automotive restoration, equipment maintenance, structural steel cleaning, and on-site industrial surface preparation.

Specifications

• Capacity: 1.0 cu ft (28 liters)

• Max Working Pressure: 150 PSI (10.3 BAR)

• System: 12 VDC Electric Pressure Release

• Inlet Valve: 1/2" AMV Jr Pneumatic

• Outlet Valve: 1/2" Diaphragm Type

• Piping: 1/2" Galvanized Steel

• Control Cable: 55' Electric Control Cord

• Power Cable: 25' 12V Power Cord

• Control Handle: Electric Control Handle Included

• Compliance: A.S.M.E. Section VIII Division 1 / CRN Certified

• Warranty: 5-Year Vessel Warranty / 10-Year Structural Warranty*

Silver Low-Pressure Blasting Package Includes

Why Low-Pressure Packages Exist

High-pressure respirators require an additional ~15 CFM @ 100 PSI.
This package ensures full operator respiratory protection without needing extra CFM, making it ideal for compressors that can run the blast pot but not supply high-pressure breathing air.

Features & Benefits

• Automatic vessel blow-down when the control handle is released

• AMV Jr metering valve for precise abrasive flow control

• Galvanized steel piping for extended corrosion resistance

• Full-port ball valves allow maximum unrestricted airflow

• Schedule 80 wear-resistant nipples for long service life

• Reliable low-pressure respirator supply system with ambient air pump

• Ready for field use — no additional components required
