Portable 1.0 cu ft Electric Blast Pot – 12 VDC System with AMV Jr ½″ Valves & ½″ Piping, Gold Low-Pressure Sandblasting Package

Part Number: 121-0530-DLP-EDC
Weight: 250.56 lb

This Pirate Brand® 1.0 cu ft Electric Blast Pot is configured with the Gold Low-Pressure Package, designed specifically for users whose air compressors cannot supply an additional +15 CFM at 100 PSI required for high-pressure respirators.

Instead of using a high-pressure airline, this setup incorporates a 3/4 HP ambient air pump that supplies air to a low-pressure RPB® Astro™ respirator, making this system an ideal solution for shops, mobile blasting rigs, and contractors working with limited compressor capacity.

This is a complete, operator-ready blasting system — pot, metering valve, hoses, PPE, respirator, pump, and protective gear included.

Specifications

• Capacity: 1.0 cu ft (28 liters)

• Max Working Pressure: 150 PSI (10.3 BAR)

• System Type: 12 VDC Electric Pressure Release

• Inlet Valve: 1/2″ AMV Jr

• Outlet Valve: 1/2″ Diaphragm Type

• Piping: 1/2″ Galvanized Steel

• Control Cord: 55 ft Electric Control Cord

• Power Cord: 25 ft Power Cord

• Control Handle: Electric Remote Control Handle Included

• Certification: ASME Section VIII Division 1 / CRN Certified

• Warranty: 5-Year Vessel / 10-Year Structural*

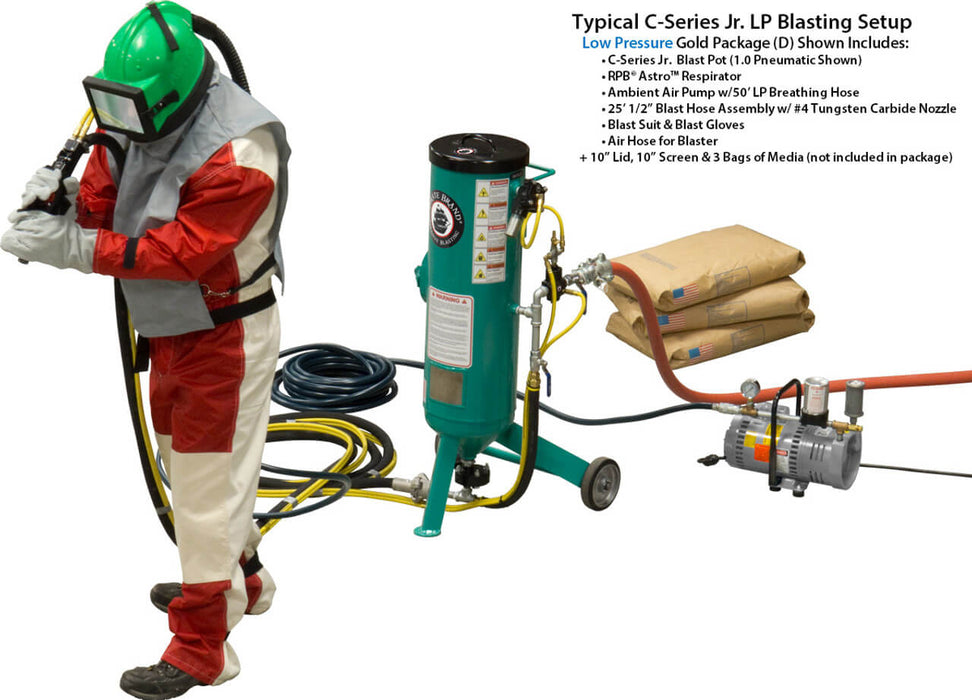

Gold Low-Pressure Package Includes

Why Low-Pressure Configuration?

This setup is built for operators who:

• Have adequate compressor flow to blast, but

• Do not have surplus capacity for a high-pressure respirator system

The ambient air pump removes that requirement entirely, enabling safe, OSHA-compliant breathing air without overloading compressor output.

Features & Benefits

• Automatic pressure release when blast control handle is released

• AMV Jr Metering Valve for consistent abrasive flow efficiency

• Galvanized steel piping protects against corrosion

• Full-port ball valves maintain unrestricted airflow

• Schedule 80 wear components extend internal blast piping life

• Built to withstand demanding industrial / commercial blasting use

OEM Cross-Reference
