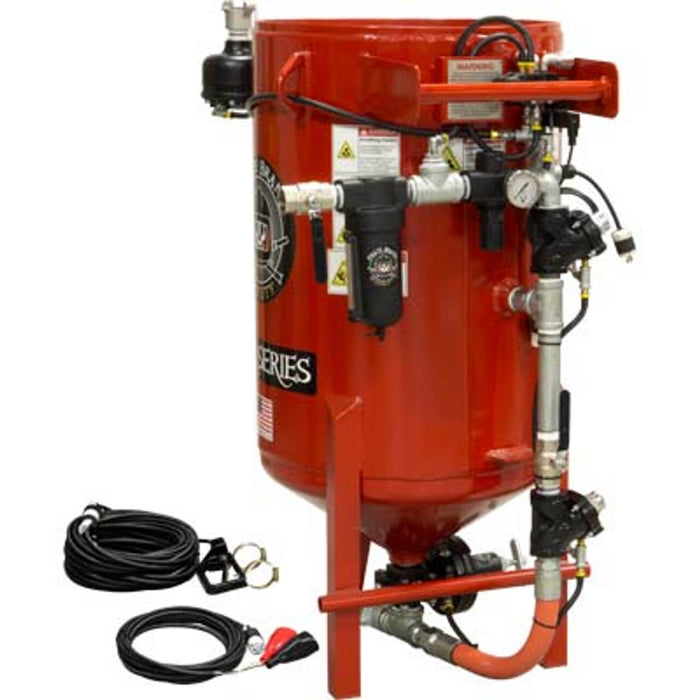

E-Series 6.5 cu ft Blast Room Sandblast Pot – Pressure Release System, 12VDC Electric Controls
Part Number: 235-651-EDC
Industrial-grade 6.5 cu ft (185 liter) blast room sandblast pot designed specifically for enclosed blast room environments. Equipped with a 12VDC electric remote control system, this unit provides instant on/off response, improved safety, and dependable operation in both standard and cold-climate blasting conditions.
The pressure release system automatically depressurizes the blast vessel when the control handle is released—minimizing abrasive waste and improving turn-around efficiency. A 50-micron air filter and pressure regulator come standard, ensuring clean, consistent air supply.
This system is built with an Automatic Pinch Valve featuring the X-TREME DUTY™ pinch tube, designed for superior wear life when blasting with expendable media or steel abrasives (sealed connectors recommended when blasting steel). The blast pot includes 1-1/4″ galvanized piping, full-port ball valves, and Schedule 80 wear nipples for long-term durability in high-use blast room operations.
Specifications
| Feature | Detail |
|---|---|
| Capacity | 6.5 cu ft (185 liters) |
| Operating Pressure | 150 PSI (10.3 bar) |
| Control System | 12VDC Electric Blast Controls |
| Control Cord Length | 110 ft Electric D-Handle Control |
| System Type | Pressure Release – Automatic Blowdown |
| Metering Valve | Automatic Pinch Valve w/ X-TREME DUTY™ Pinch Tube |
| Piping | 1-1/4″ Galvanized Steel Piping |
| Filter | 50-Micron Air Filter (Standard) |
| Pressure Regulator | Included |
| Certification | ASME Section VIII Div. 1 / CRN Certified |
| Warranty | 5-Year Pressure Vessel / 10-Year Structure Warranty |
OEM Cross Reference
| OEM Manufacturer | Equivalent Part # |
|---|---|
| Empire Abrasive Equipment Co. | 235651 |
Note: When blasting with steel abrasives, sealed connectors (PB-31131) are required.
Key Features & Benefits
Automatic Pressure Release System
-
Vessel safely depressurizes when control handle is released
-
Reduces downtime and abrasive waste
X-TREME DUTY™ Automatic Pinch Valve
-
Wear-resistant 100% gum rubber pinch tube
-
Carbon black formulation dissipates static charge
-
Suitable for expendable and recyclable abrasives
High-Durability Piping & Components
-
1-1/4″ galvanized pipe for corrosion resistance
-
Full-port ball valves maintain maximum airflow
-
Schedule 80 wear nipples extend system life
-
JIC pusher line fittings eliminate gasket leak failures
Blast Room Integration Features
-

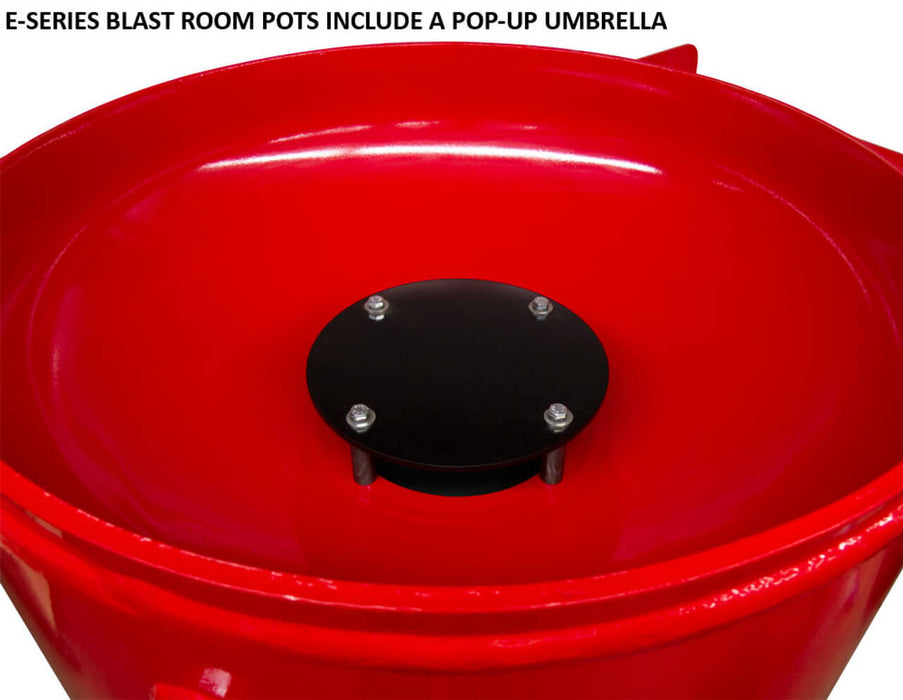

4" abrasive feed umbrella included for hopper-fed setups
-
6″ FAST-FILL™ pop-up for faster abrasive loading
-
120VAC door interlock ready for blast room safety systems
Recommended Applications
-
Blast Rooms
-
Industrial Fabrication Shops
-
Structural Steel Prep
-
Tank & Vessel Refurbishment
-
Marine & Shipyard Surface Prep
-
Heavy Coatings & Corrosion Removal
