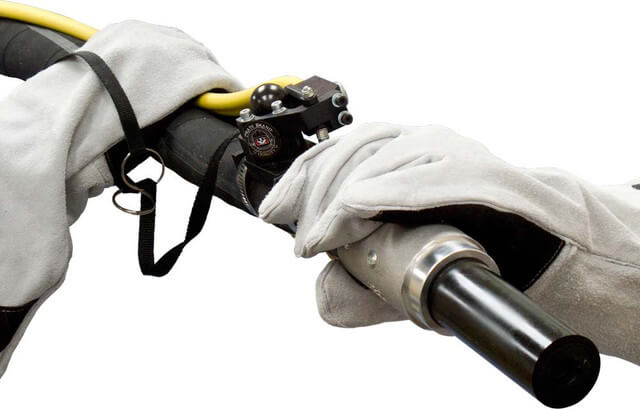

Ball & Strap Pneumatic Deadman Control Handle – Bleeder Type Safety Handle – Abrasive Blasting Control

Model: 023602
Category: Abrasive Blasting Equipment → Control Systems → Deadman Controls
Type: Ball & Strap Pneumatic Deadman Control Handle – Bleeder Type

The Ball & Strap Pneumatic Deadman Control Handle (023602) is a safety-critical control device designed for abrasive blasting systems, providing immediate shutoff capability when the operator releases control or loses grip of the blast hose.

Key Features & Benefits

• Ball & strap safety design for automatic disengagement
• Bleeder-type deadman control for immediate shutoff
• Enhances operator safety during blasting operations
• Wrist strap ensures fail-safe activation if hose is dropped
• Durable construction for industrial environments
• Compatible with pneumatic abrasive blasting systems
• Reliable and responsive control mechanism

Technical Specifications

• Model: 023602
• Component Type: Pneumatic Deadman Control Handle
• Control Type: Bleeder Type
• Safety Feature: Ball & Strap Wrist Mechanism
• Application: Abrasive Blasting Systems
• Weight: 0.60 lbs
• Condition: New

OEM Compatibility

• Compatible with bleeder-type abrasive blasting systems
• Ensure system is designed for bleeder-type control handles before use

Typical Applications

• Blast pot abrasive blasting systems
• Industrial surface preparation operations
• Sandblasting and media blasting setups
• Pneumatic control system installations
• Replacement of worn or unsafe control handles

Performance Benefits

• Provides instant shutdown for increased safety
• Reduces risk of accidental blasting
• Improves operator control and confidence
• Ensures compliance with safety practices
• Minimizes downtime due to control failures

Important Safety Notes

• ⚠️ Use only with equipment designed for bleeder-type control handles
• ⚠️ Wrist strap must be secured during operation
• ⚠️ Operating without the strap defeats the safety function and is unsafe

Installation Guidelines

• Attach the control handle securely to the blast hose near the nozzle
• Use hose clamps or heavy-duty ties for proper mounting
• Create a strain-relief loop with the twinline/control cord:
  • Extend ~6" away from hose
  • Run parallel ~6"
  • Return to hose and secure with tape
• Continue securing the control cord to the hose every ~3 feet

Compatibility & Notes

• Designed specifically for pneumatic bleeder-type control systems
• Not compatible with pressure-hold or electric deadman systems
• Verify system requirements before installation
