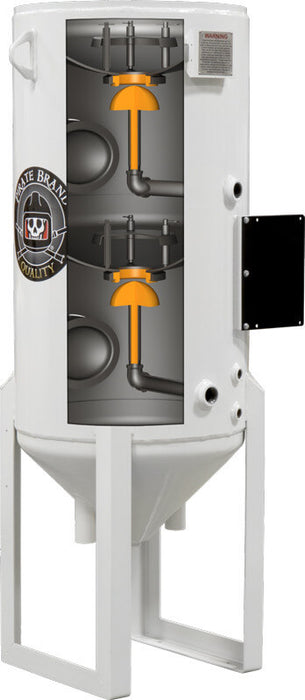

8 cu ft Dual Chamber Blast Pot Pressure Vessel – 150 PSI, 2 Outlet, 90° Cone Bottom – Includes (2) Umbrellas, Handways & Pop-Up Assemblies – Replaces Schmidt Axxiom 1022-008

Model: 888-1022-008PB
Category: Abrasive Blasting Equipment → Blast Pots & Pressure Vessels → Dual Chamber Blast Pots
Type: 8 cu ft Dual Chamber Blast Pot Pressure Vessel – 150 PSI, 2 Outlet, 90° Cone Bottom

The 8 cu ft Dual Chamber Blast Pot Pressure Vessel is a high-efficiency, production-grade blasting system designed to minimize downtime and maximize output in demanding abrasive blasting operations.

Key Features & Benefits

• Dual chamber design for continuous blasting and reduced downtime
• 8 cu ft total capacity with optimized usable volume
• 150 PSI working pressure for consistent performance
• Dual outlet (2 outlet) configuration for increased productivity
• 90° cone bottom for efficient abrasive flow
• Includes (2) umbrellas, handways, pop-ups, and skirted gaskets
• Built to A.S.M.E. Section VIII Division 1 standards
• CRN certified for all provinces
• Direct OEM replacement for Schmidt Axxiom 1022-008

Technical Specifications

• Model: 888-1022-008PB
• Total Capacity: 8 cu ft
• Upper Chamber Capacity: 3.26 cu ft (2.69 usable)
• Lower Chamber Capacity: 4.19 cu ft (4.04 usable)
• Pressure Rating: 150 PSI (10.3 BAR)
• Outlets: 2 Outlet Configuration
• Bottom Design: 90° Cone Bottom
• Clearance: 13"
• Overall Height: 69" OAH
• Included Components:
  • (2) 9" Umbrellas
  • (2) Handway Assemblies
  • (2) Pop-Up Valves
  • (2) Skirted Pop-Up Gaskets
• Weight: 507.00 lbs
• Type: Dual Chamber Stationary Pressure Vessel
• Application: Abrasive Blasting Equipment
• Certification: A.S.M.E. Section VIII Division 1, CRN (All Provinces)
• Condition: New

Typical Applications

• Continuous abrasive blasting operations
• High-production industrial environments
• Multi-operator blasting setups
• Blast rooms and fixed installations

Performance Benefits

• Enables continuous blasting with reduced refill downtime
• Maximizes productivity in high-demand environments
• Ensures consistent pressure and abrasive flow
• Reduces interruptions during long blasting cycles
• Improves overall operational efficiency

Compatibility & Notes

• Direct replacement for Schmidt Axxiom 1022-008
• Compatible with the following OEM manufacturers:

• Designed for stationary abrasive blasting systems
• Ideal for operations requiring continuous blasting capability
• Dual chamber system significantly improves workflow efficiency
