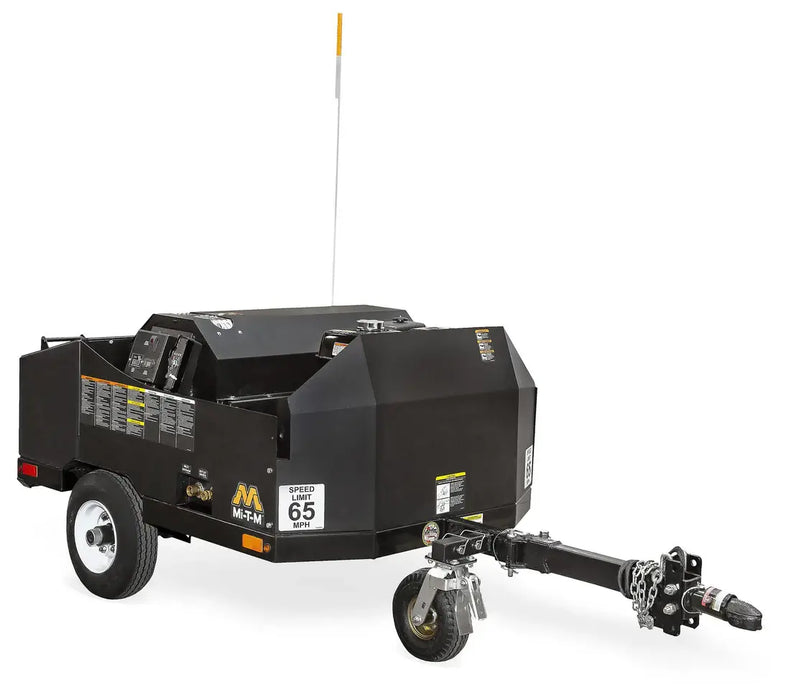

Hot Water Mini Trailer Pressure Washer | 12V Beckett Burner

Part Number: HMT-4004-0MGH
Category: Hot Water Pressure Washers & Mobile Cleaning Systems
Type: Hot Water Mini Trailer Pressure Washer – 12V Beckett Burner

The Mi-T-M HMT-4004-0MGH Hot Water Mini Trailer Pressure Washer is a compact, easy-to-tow cleaning solution built for professionals who need powerful hot water performance on the go. Equipped with a 12V Beckett burner, Honda GX390 engine, and General Pump, this unit delivers reliable heat and pressure for demanding grease, oil, and grime removal in mobile and remote jobsite applications.

Key Features

Pump

• Adjustable pressure unloader

• Forged brass manifold

• Thermal relief valve

Engine

• Remote engine start and choke

• 12V electric start (battery not included)

• 389cc Honda GX390 OHV

Frame

• Reinforced powder-coated steel frame

• Locking rear storage area (2.875 cu. ft.)

• 2" ball hitch

• Caster brake (use when unhitched)

• (2) 4.80-8 bias-ply tires

• 1,000-lb axle

Heating System

• 12V Beckett burner

• ½" Schedule 80 pipe coil with 4-pancake heat exchanger

• Burns No. 1 / No. 2 fuel oil, diesel, or kerosene

• Not approved for bio-fuel

Safety & Controls

• Removable safety flag

• DOT approved

• Recommended max speed: 65 mph

• 250°F high-temperature safety limit switch

• Engine hour meter

Unit Includes

• Quick-connect nozzles: 0°, 15°, 25°, 40°

• 50-ft x 3/8" steel wire-braided hose

• Adjustable pressure insulated dual lance with trigger gun

Performance Specifications

• Pressure: 4000 PSI

• Flow Rate: 3.7 GPM

• Temperature Rise: 140°F (60°C) above ambient

• BTU Output: 343,000 BTU/hr

Fuel Capacities

• Engine Fuel Tank: 1.61 gallons

• Burner Fuel Tank: 10.0 gallons

• Burner Fuel Consumption: 2.45 GPH

Dimensions & Weight

• Net Weight: 1,000 lbs

• Shipping Weight: 1,000 lbs

• Length: 99 in

• Width: 43.5 in

• Height: 36 in

Warranty

• 3-Year Honda Engine Warranty

• 7-Year General Pump Warranty

Important Notes

• 49-state engine

• Not for sale in California

• California units require CARB-compliant engines (consult factory)
