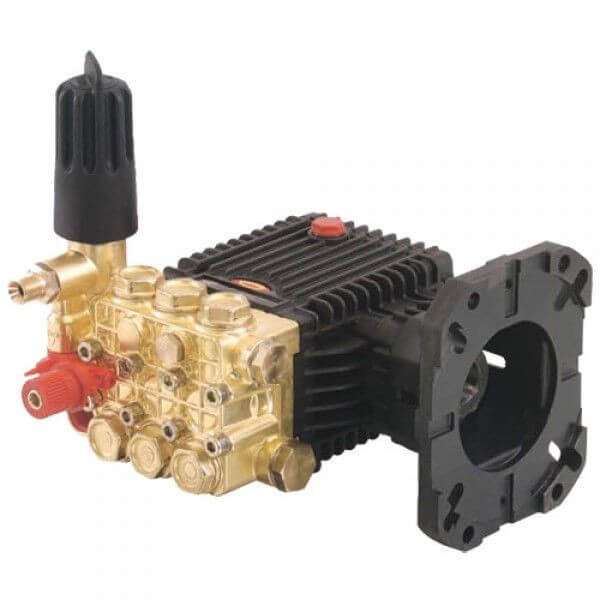

TX1510G8UIA-H Pump Assembly – TX1510G8UIA Triplex Pump w/ Hardware
Part Number: TX1510G8UIA-H
Category: Pressure Washer Pumps & Pump Assemblies
Type: Pump Assembly – TX1510G8UIA Triplex Direct-Drive, 4.0 GPM @ 3000 PSI
The TX1510G8UIA-H Pump Assembly is a factory-configured, direct-drive replacement built around the TX1510G8UIA triplex plunger pump. Rated for 4.0 GPM at 3000 PSI and designed to operate at 3400 RPM, this assembly delivers strong commercial-level cleaning power in a compact, space-efficient format. Supplied with mounting hardware, it provides a fast, drop-in solution for restoring OEM performance while minimizing installation time and downtime.
Featuring a 1″ shaft and rugged triplex construction, the TX1510G8UIA-H offers smoother operation, lower pulsation, and significantly longer service life than axial-style pumps—making it an ideal upgrade or replacement for direct-drive gas pressure washer systems.
Product Specifications
-
Pump Model: TX1510G8UIA
-
Assembly Type: Complete pump assembly with hardware
-
Pump Type: Triplex Plunger, Direct Drive
-
Flow Rate: 4.0 GPM
-
Max Pressure: 3000 PSI
-
Shaft Size: 1″
-
Rated Speed: 3400 RPM
-
Bore Diameter: 15 mm
-
Stroke: 10 mm
-
Weight: 18.2 lb
-
Condition: New
Features & Benefits
-
Factory-built pump assembly for quick installation
-
Commercial-grade triplex plunger construction
-
4.0 GPM output for efficient coverage and rinsing
-
3000 PSI cutting power for demanding cleaning tasks
-
1″ shaft for broad engine compatibility
-
Smoother, lower-pulsation performance than axial pumps
-
Extended service life in direct-drive applications
Applications
-
Direct-drive gas pressure washers
-
OEM replacement for compatible TX-series systems
-
Light commercial and professional cleaning equipment
-
Equipment repair, refurbishment, and upgrades
Important Notes
-
Verify shaft size (1″), RPM (3400), and mounting compatibility before ordering
-
Designed for direct-drive configurations
-
Final operating PSI and GPM depend on engine output and overall system configuration
